OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
|
Detail Information |
|||
| Place Of Origin: | Guangzhou,China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO9001/ROHS/CE/FCC | Model Number: | GYTS/GYTA/GYTA53 |
| Number Of Conductors: | ≥ 10 | Fiber Count: | 4-288 Cores |
| Installation: | Conduit/Underground | Strength Member: Central: | Steel Wire Or FIberglass Reinforced Plastic (FRP) |
| Manufacturer: | Yes | ||
| High Light: | MultiLoose Tube Outdoor Fiber Optic Cable,GYTS Outdoor Fiber Optic Cable,Anti rodent GYTS Fiber Optic Cable |
||
Product Description

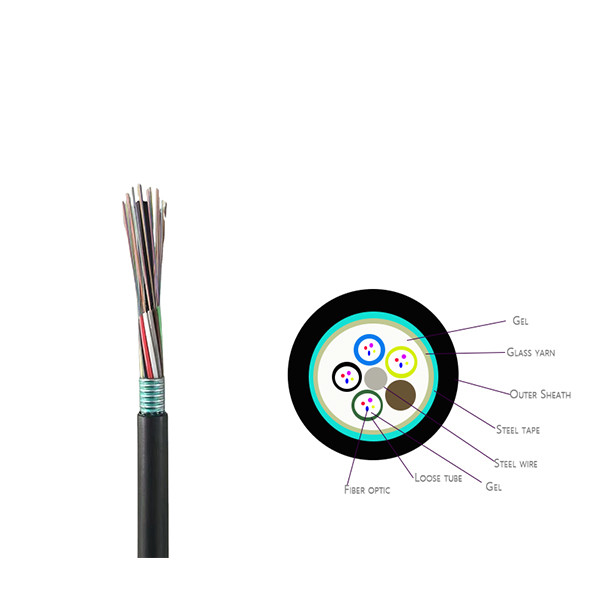

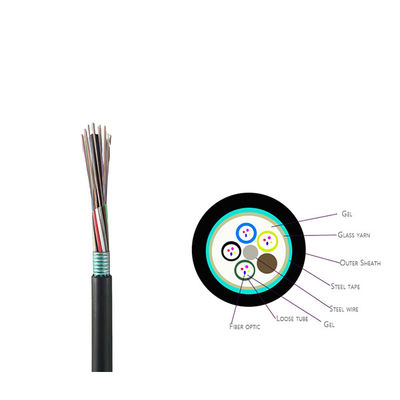

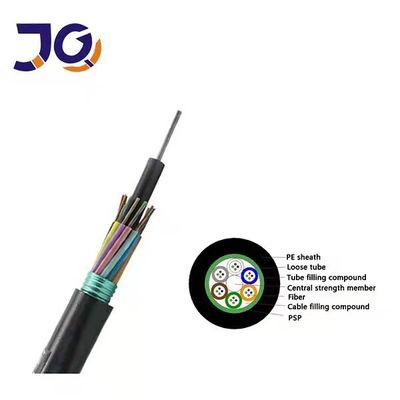

Anti-rodent armoured optic fibre cable GYTA GYTA53 GYTS MultiLoose Tube 24 48 Fibers
Features:
Choice of Fibre Type
Colour code of Fiber
High water resistance
High crush resistance
Choice Sheath Material
Low attenuation and dispersion
Good flexibility and bending performance
Appicable fields:
Duct/Underground
Fiber parameter
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
|
Mode field diameter |
1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | £1.0 | |
| Core/cladding concentricity error | mm | £0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | £6.0 | |
| Coating/cladding concentricity error | mm | £12.0 | |
| Cable cut-off wavelength | nm | £1260 | |
|
Attenuation Coefficient |
1310nm | dB/km | £0.36 |
| 1550nm | dB/km | £0.22 | |
| Proof stress level | kpsi | ≥100 | |
Cable Performance
| Item | Parameters | |
| Fiber Count | 48 | |
|
Colored coated fiber |
Dimension | 250µm±15µm |
|
Color |
Blue,Orange,Green,Brown,Gray,White |
|
|
Loose tube |
Dimension | 2.2mm±0.1mm |
| Material | PBT | |
| Color | Blue,Orange,Green,Brown | |
|
Filler |
Material | PE |
| Color | Black | |
|
Central Strength Member |
Dimension | 1.6mm±0.05mm |
| Material | Phosphating steel wire | |
| Armoured | Material | Plastic coated steel strip |
|
Outer jacket |
Material | PE |
| Color | Black | |
Packing:
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for the freight
3.Do you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001-2000
6.What is your delivery time?
Usually within 3-5 working days
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements
