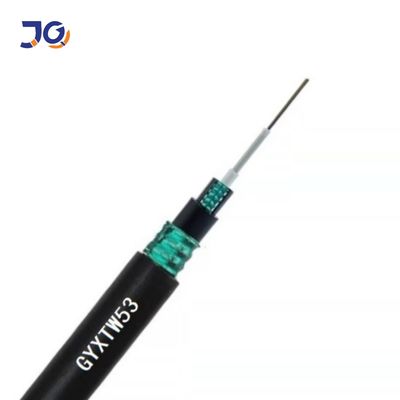

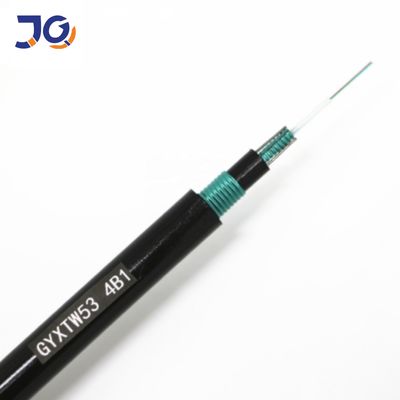

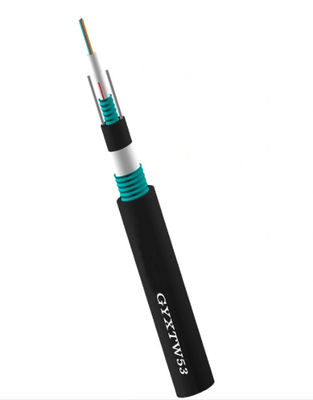

Name: G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYXTW53
Price: 1,249.28 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Count: 2-288 Cores

Jacket Material: PE

Jacket Color: Black

Warranty: 25 Years

Factory: Yes

OEM: Yes

Fiber Brand: YOFC

Fiber Type: G652D

Highlight:

Monomodo Communication Fiber Cable

G652D Communication Fiber Cable

12 cores monomodo cable

Basic Infomation

Place of Origin: Guangdong,China

Brand Name: Jiqian

Certification: CE/ISO9001

Model Number: GYXTW53

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 3-5 days, it depends on your quantity

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 60000KM/month

Gallery

G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores

Product Description

Outdoor Central Loose Tube G652d Monomodo Fibra Optica 8 12 24 Core Communication Fiber Optic Cable GYXTW53

G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores 0

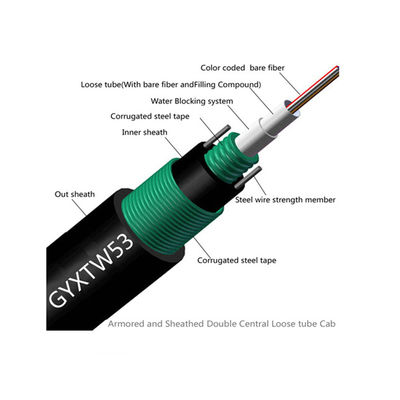

Product Structure

250μm's fibers are positioned in the central of a loose tube which is made of high modulus plastics and filled with water-resistant filling compound. The tube is wrapped with a layer of the plastic coated steel strip(PSP). Except the tube filling compound, PSP, water-blocking material, it also has two steel wires in two sides to enhance the crush resistance and flexibility. At last, the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores 1

Feature:

Good mechanical and temperature performance

Metallic armor to protect cable from rodent attack and mechanical damage.

Embedded steel wire provide desirable tensile strength and crush resistance.

Compact, easy to install.

UV and waterproof design.

Application

Ordering Information



			Fiber Count
			Outer Diameter (mm)
			Loose Tube Diameter (mm)
			Cable Weight (kg/km)
			Bend Radius


			Short (mm)
			Long (mm)


			2
			12.0
			2.8
			165.0
			20D
			10D


			4
			12.0
			2.8
			165.0
			20D
			10D


			6
			12.0
			2.8
			165.0
			20D
			10D


			8
			12.0
			2.8
			165.0
			20D
			10D


			12
			12.0
			2.8
			165.0
			20D
			10D





Packaging Details

1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;

2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Factory Show
