288 Cores Outdoor Armoured Cable Duct Optical Fibre Cable GYTA

Minimum Order Quantity :	1000m	Packaging Details :	wooden drum
Delivery Time :	2-4day	Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	100km per 2 day

Place of Origin:	CHINA	Brand Name:	jiqian
Certification:	ISO	Model Number:	GYTA 12 24 48 96 CORE

Detail Information
Fiber Type:	G652D	Oem:	Available
Application:	Aerial/duct	Number Of Conductors:	12 24core
Structure:	Stranded Loose Tube	Operating Temperature:	-40 ~ +60 C
Central Strength Member:	Aluminium Wires
Highlight:	288 cores Outdoor Armoured Cable , GYTA Outdoor Armoured Cable , 288 core Optical Fibre Cable

Product Description

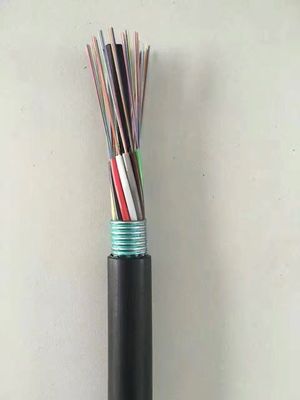

GYTA Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.

288 Cores Outdoor Armoured Cable Duct Optical Fibre Cable GYTA 0

Fiber Parameters		Unit	Specification
Fiber Parameters		Unit	G.652D
Mode Field Diameter	1310nm	μm	9.2±0.4
Mode Field Diameter	1550nm	μm	10.4±0.5
Cladding Diameter		μm	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		μm	≤0.5
Coating Diameter		μm	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0
Cable Cutoff Wavelength		nm	λcc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.4
Attenuation(max.)	1550nm	dB/km	≤0.3

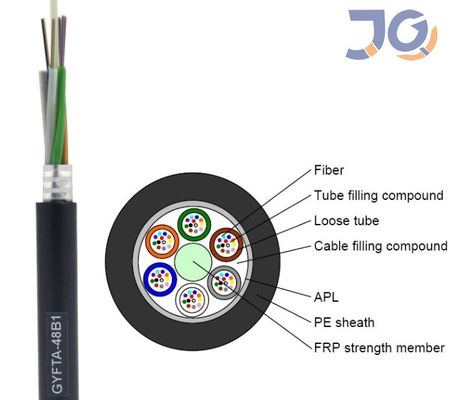

Cable Parameters:		Specifications
Fiber Count		4-24
Colored Coating Fiber	Dimension	250µm±15µm
Colored Coating Fiber	Color	Blue,Orange,Green,Brown,Gray, White,Red,Black,Yellow,Purple,Pink,Aqua
Loose Tube	Dimension	2.1mm±0.05mm
	Material	PBT
	Color	Red,Blue Natural,Natural,Natural
Central Strength Member	Diameter	1.5mm
Central Strength Member	Material	steel
Outer Jacket	Dimension	9.0mm±0.2mm
	Material	PE
	Color	Black

Mechanical and Environmental Characteristics:	Unit	Specifications
Tension(Long Term)	N	600
Tension(Short Term)	N	1500
Crush(Long Term)	N/10cm	300
Crush(Short Term)	N/10cm	1000
Min. Bend Radius(Dynamic)	mm	20D
Min. Bend Radius(Static)	mm	10D
Installation Temperature	℃	-20~+60
Operating Temperature	℃	-40~+70
Storage Temperature	℃	-40~+70

FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
