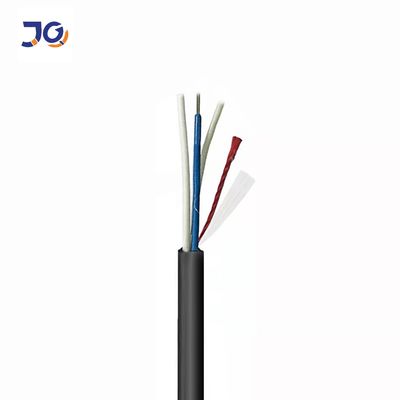

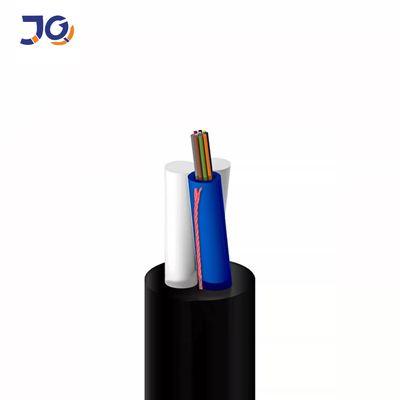

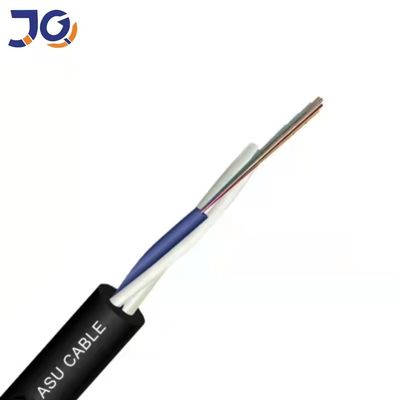

120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type
120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type 120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type 120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type 120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type
Contact Now

120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 working days ,it depends on your order Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: ISO9001/CE Model Number: ASU

Detail Information
Fiber Count: 4/6/12 Warranty: More Than 25years
Fiber Type: G652D,G652B,G657A Application: Aerial
Fiber Brand: YOFC Packing: 2km/Wooden Durm
Strength Member: FRP
High Light:

120M all dielectric fiber optic cable

,

120M adss aerial fiber optic cable

,

G652B adss aerial fiber optic cable

Product Description

Aerial Mini ADSS Optical Cable 4 6 12 Core Asu 120 Meters Voyage Fiber Optic Cable

120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type 0


Product Description

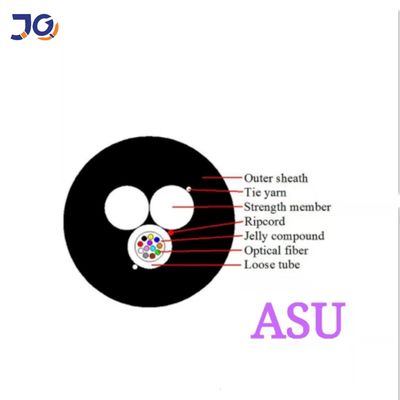

1.The ASU Mini ADSS optical fiber is put in a loose tube with 4-12 cores in the tube.
2.Tube filling compound will be used for as water blocking elements.
3.FRP are put together for the tensile strength purpose.
4.This is economic and compact design with PE or LSZH jacket.

Details:

120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type 1



Applicable fields:

120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type 2

Optical Parameters:

120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type 3

120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type 4

Specification



No. of cable
1-12
Fiber Model
G.652D
Strength Member
Material
FRP

Diameter(±0.05)mm
1.8
Loose Tube
Material
PBT

Diameter(±0.06)mm
1.8

Thickness(±0.03)mm
0.35

The Max.Core NO./Tube
12
Outer Sheath
Material
PE
Cable Diameter(±0.2)mm
6.7
Cable Weight(±5)kg/km
38
Min. bending radius
Without Tension
10.0×Cable-φ

Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60

Transport&Storage
-40~+70

Operation
-40~+70








120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type 5



There are twelve fiber color code.They are A grade fiber.

120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type 6

All products will have been strictly quality checked in house before packing.

120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type 7

All products will be well packed before shipment.



120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type 8




We are fiber cable manufacturer. We have a factory.

120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type 9

120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type 10



We have rich experience in foreign trade.

Give us a chance to server you, saving your time and money.

Contact me!!! Whatsapp & Wechat: +8618122383351



120M Adss All Dielectric Fiber Optic Cable G652B Fiber Type 11









FQA



1,Q:Are you a factory or trade company?

A:We are a factory



2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?

A:Yes, small order is available .We support new project of our customers as we know business is always from small order.



5,Q:What’s delivery time?

A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
