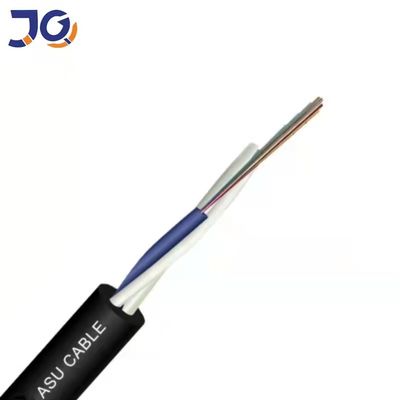

24 Core Non Metallic Aramid Yarn Mini ADSS Cable G652D Specification

Minimum Order Quantity : 1km Price : 98
Packaging Details : Plywood drum Delivery Time : 3-5 days,it depends on order quantity
Payment Terms : L/C, T/T, Western Union,Alipay Supply Ability : 4500 per month
Place of Origin: China Brand Name: Jiqian
Certification: FCC/ROHS/ISO9001/CE Model Number: Mini ADSS/ASU80

Detail Information

Highlight:

Aramid Yarn Mini ADSS cable

,

Non metallic Mini ADSS cable

,

G652D Non metallic ADSS cable

Product Description

Mini ADSS 8 12 24 core Non-metallic Aramid Yarn fiber optic cable ASU80



Specification:


Category
Description
Specifications
G.652D
Optical Specifications
Attenuation
@1310nm
≤0.36dB/km
@1550nm
≤0.22dB/km
Attenuation discontinuity
≤0.05 dB
Attenuation vs. Wavelength
@1285~1330nm
≤0.05 dB/km
@1525~1575nm
≤0.05 dB/km
Zero Dispersion Wavelength
1300~1324nm
Zero Dispersion Slope
Max. 0.092 ps/(nm.km)
Dispersion
@1310nm
≤3.5 ps/nm.km

@1550nm
≤18 ps/nm.km
Cable Cutoff Wavelength(λcc)
≤1260nm
PMD
≤0.20ps/km 1/2
Effective Group Index of
Refraction
@1310nm
1.4675
@1550nm
1.4681
Geometric Specifications
Mode Field Diameter
@1310nm
9.2±0.4μm
@1550nm
10.4±0.8μm
Mode field concentricity error at 1310 nm
Not exceed 0.5μm
Cladding Diameter
125±1μm
Cladding Non-Circularity
≤1%
Coating Diameter
245 +/- 7μm
Coating/Cladding Concentricity Error
≤8μm
Core/Cladding Concentricity Error
≤0.8μm
Mechanical
Specifications
Proof Test level
≥1.0%
Fiber Curl Radius
≥4.0m
Peak Coating Strip Force
1.3~8.9N

24 Core Non Metallic Aramid Yarn Mini ADSS Cable G652D Specification 0

Packing&Delivery:

2km/3km/4km per wooden drum or customized

Port:Shenzhen/Guangzhou

Lead time:

Quantity(km) 100-200 >200
Est time(day) 3-5 days negotiable

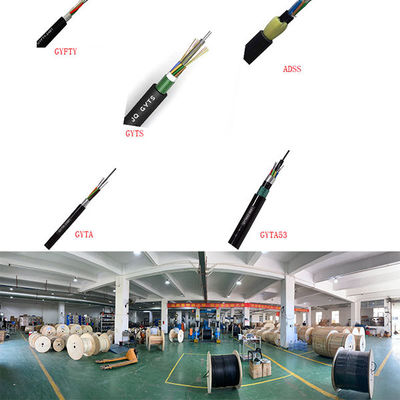

24 Core Non Metallic Aramid Yarn Mini ADSS Cable G652D Specification 1

FAQ:

1.Are you a manufacturer or trade company?

Yes. We are a factory in Guangzhou,China



2.Do you provide samples? is it free or charched?

Yes, sample is available, It's free,just need to pay for the freight



3.Do you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.



4.What is your warranty period?

25 years for fiber optic cable



5.Which kind of certification you have ?

ISO9001-2000



6.What is your delivery time?

Usually within 3-5 working days



7.What is your fiber brand?

Corning,YOFC ,Fiberhome



8.What is your payment way?

T/T, L/C, Western Union and Paypal.



9.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your requirements
