ADSS Dielectric Fiber Optic Cable FRP Strength For Overhead
ADSS Dielectric Fiber Optic Cable FRP Strength For Overhead
ADSS Dielectric Fiber Optic Cable FRP Strength For Overhead ADSS Dielectric Fiber Optic Cable FRP Strength For Overhead ADSS Dielectric Fiber Optic Cable FRP Strength For Overhead ADSS Dielectric Fiber Optic Cable FRP Strength For Overhead ADSS Dielectric Fiber Optic Cable FRP Strength For Overhead
Contact Now

ADSS Dielectric Fiber Optic Cable FRP Strength For Overhead

Minimum Order Quantity : 1km Packaging Details : Plywood drum
Delivery Time : Normally 3-5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 6000km per month
Place of Origin: China Brand Name: Jiqian
Certification: ISO9001 ROHS CE FCC Model Number: ADSS 48B1

Detail Information
Place Of Origin: Guangzhou China Brand Name: Jiqian
Number Of Conductors: ≥ 10 Strength Member: FRP
Storage/operating Temperature:: -40 To +70 °C Application: Overhead
OEM: Yes Manufacturer: Yes
Structure: Stranded Loose Tube Package: Plywood Drum
High Light:

ADSS dielectric fiber optic cable

,

FRP dielectric fiber optic cable

,

stranded loose tube dielectric fiber cable

Product Description

Cabo fibra optica ADSS Outdoor 12 24 48 96 144 core Single Mode overhead dielectric fiber optic Cable

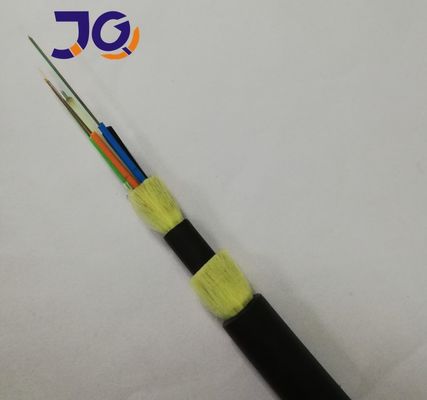

ADSS Dielectric Fiber Optic Cable FRP Strength For Overhead 0

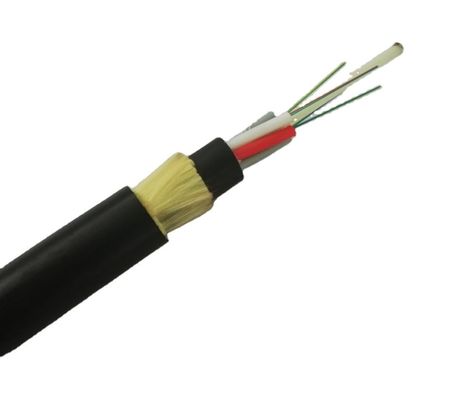

ADSS Dielectric Fiber Optic Cable FRP Strength For Overhead 1

Cable Performance



Item



Contents

 Value
6/12/24 48 72 96
Structure Type 1+6 1+6 1+8 1+12



Loose tube

 Max Fiber counts/tube 6 12 12 12
Outer diameter (mm) 1.9±0.1 2.2±0.1 2.2±0.1 2.2±0.1



Central strength member

 Material FRP
Diameter (mm) 1.4 1.6 2.0 2.2
PE layer diameter (mm) -- --   3.5
Peripheral strength member Material FRP



Sheath

 Material HDPE
Color Black
Thickness (mm) Nominal: 1.6
Cable diameter(mm) Approx. 9.8±0.2 10.0±0.2 10.5±0.3 11.8±0.3
Cable weight(kg/km) Approx. 85 89 99 124


Fiber parameter

Parameter Specification
MFD (1310nm) 8.7~9.5 um
Cladding diameter 125±1.0um
Fiber diameter 235~255um, with UV coating, and colored to : 250±15um
Core/cladding concentricity error ≤ 0.6um
Coating/cladding concentricity error ≤ 12.0um
Cladding non circularity ≤ 1.0%
Cut off wavelength λcc ≤1260nm



Attenuation coefficient



1310nm: 0.35dB/km max after cabling 1550nm: 0.21dB/km max after cabling



Bending-loss performance of optical fiber @1310nm&1550nm



≤0.05dB (100 turns around a mandrel of 50mm diameter)
Polarization mode dispersion maximum individual fibre



≤0.2ps/√km
Polarization mode dispersion link value ≤0.1ps/√km
Zero-dispersion wavelength 1300~1324nm
Zero-dispersion slope ≤0.092ps/nm2·km


FAQ:

1.Are you a manufacturer or trade company?

Yes. We are a factory in Guangzhou,China



2.Do you provide samples? is it free or charched?

Yes, sample is available, It's free,just need to pay for the freight



3.Do you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.



4.What is your warranty period?

25 years for fiber optic cable



5.Which kind of certification you have ?

ISO9001-2000



6.What is your delivery time?

Usually within 3-5 working days



7.What is your fiber brand?

Corning,YOFC ,Fiberhome



8.What is your payment way?

T/T, L/C, Western Union and Paypal.



9.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your requirements
