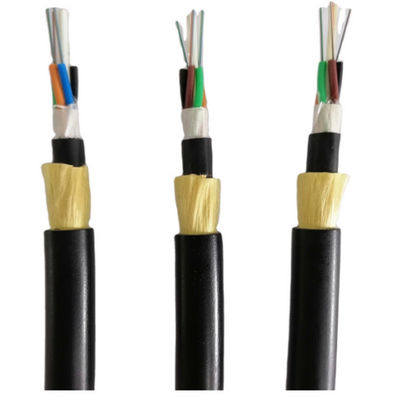

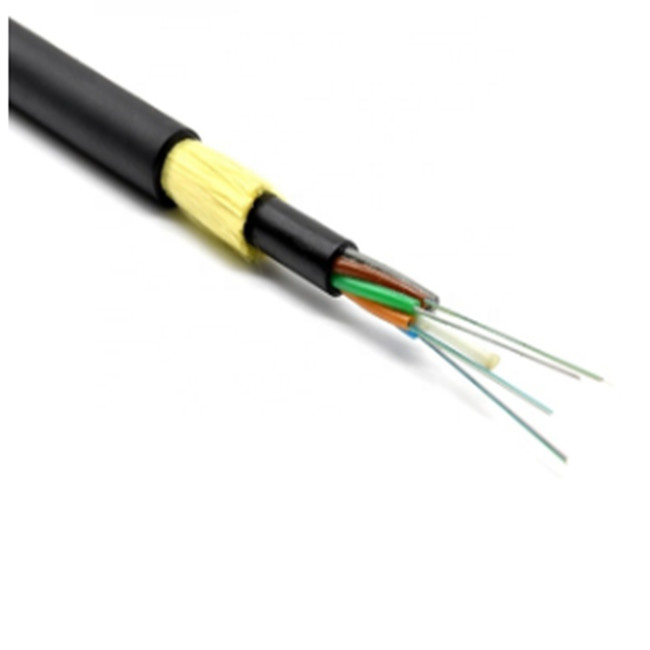

110kV SZ Stranded Loose Tube ADSS Fiber Cable , All Dielectric Fiber Optic Cable

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4work day Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000kilometers
Place of Origin: China Brand Name: Jiqian/OEM
Certification: CE/ISO9001 Model Number: ADSS

Detail Information

Type: Fiber Optic Cable Color: Black
Sheath: PE Fiber Counts: 2-288
Place Of Origin: Guangdong, China Application:: Outdoor Aerial
High Light:

SZ stranded adss fiber cable

,

110kV adss fiber cable

,

110kV all dielectric fiber optic cable

Product Description

Features:
low transmission attenuation and dispersion.
Reasonable design, precise control of excess length of fibers in the loose tube and optimum cabling process provides the cable excellent mechanical and environmental properties.
The SZ-stranded, loose tube design isolated fibers from installation andenvironmental rigors.
The water blocking gel filled core design provides the cable excellent water-proof performance and moisture-resistance, with smaller size.
Excellent flexibility.
Due to the non-metallic structure, the cable is light and easy in laying and has a very strong ability of anti-electromagnetic disturbance.
The cable is very suitable for self-supporting installation mode and has a high tensile strength along with a powerful harsh-environment surviving capability.
Dimensions of Cable Constructions





Fiber count







Structure



Fibers per tube



Loose tube diameter (mm)



CSM

diameter/pad diameter (mm)

Nominal Thickness of outer jacket

(mm)



Cable diameter/ Height (mm)



Cable weight (kg/km)

4 1+6 4 1.9±0.1 2.0/2.0 1.6 9.5±0.2 80
6 1+6 6 2.0±0.1 2.0/2.0 1.6 9.8±0.2 80
8 1+6 4 1.9±0.1 2.0/2.0 1.6 9.8±0.2 80
12 1+6 6 2.1±0.2 2.0/2.0 1.6 9.8±0.2 80
24 1+6 6 2.1±0.2 2.0/2.0 1.6 9.8±0.2 80
36 1+6 12 2.1±0.2 2.0/2.0 1.6 10.0±0.2 85
48 1+6 12 2.1±0.2 2.0/2.0 1.6 10.0±0.2 85
72 1+6 12 2.1±0.2 2.0/2.0 1.6 10.0±0.3 85
96 1+8 12 2.1±0.2 2.0/3.4 1.7 11.8±0.3 123
144 1+12 12 2.1±0.2 3.0/6.2 1.7 14.5±0.5 175

Fiber Properties

The properties of single mode optical fiber (ITU-T Rec. G.652D)

Parameter Specification
Fiber type Single mode
Fiber material Doped silica
Attenuation coefficient
@1310nm
@1383nm
@1550nm
@1625nm

≤0.36dB/km
≤0.32dB/km
≤0.22dB/km
≤0.30dB/km
Point discontinuity ≤0.05dB
Cable cut-off wavelength ≤1260nm
Zero-dispersion wavelength 1300~1324nm
Zero-dispersion slope ≤0.093 ps/(nm².km)
Chromatic dispersion
@1288~1339nm
@1271~1360nm
@1550nm
@1625nm

≤3.5 ps/(nm. km)
≤5.3 ps/(nm. km)
≤18 ps/(nm. km)
≤22 ps/(nm. km)
PMDQ (Quadrature average*) ≤0.2 ps/km½
Mode field diameter @1310nm 9.2±0.4um
Core/Clad concentricity error ≤0.5um
Cladding diameter 125.0±0.7um
Cladding non-circularity ≤1.0%
Primary coating diameter 245±10um
Proof test level 100 kpsi (=0.69 Gpa),1%
Temperature dependence ≤0.1dB/km
Allowable Crush Resistance 2200N/100mm

Characteristic of Optical Cable

Cable bending radius: 10 x cable diameter (during operation)

20 x cable diameter (during installation)

Temperature range

Operating temperature range -20℃ to +60℃
Storage / Transport temperature range -40℃ to +60℃
Installation temperature range -20℃ to +60℃


Description:

Loose tube design, non-metallic central strength member, SZ stranded core filled with gel, aramid yam assistant strength member, outer PE sheath (Anti-tracking sheath used for voltages above 110kV)110kV SZ Stranded Loose Tube ADSS Fiber Cable , All Dielectric Fiber Optic Cable 0
