GYTC8S Figure 8 Aerial Fiber Optic Cable PE Jacket

1kilometer
MOQ
GYTC8S Figure 8 Aerial Fiber Optic Cable PE Jacket
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Cable, Gytc8s
Color: Black
Jacket: PE
Cores: 2-288
Application: Aerial
Fiber Mode: Single Mode & Multi Mode
Highlight:

Figure 8 aerial fiber cable

,

GYTC8S aerial fiber cable

,

PE jacket figure 8 fiber cable
Basic Infomation
Place of Origin: China
Brand Name: Jiqian/OEM
Certification: CE/ISO9001
Model Number: GYTC8S
Payment & Shipping Terms

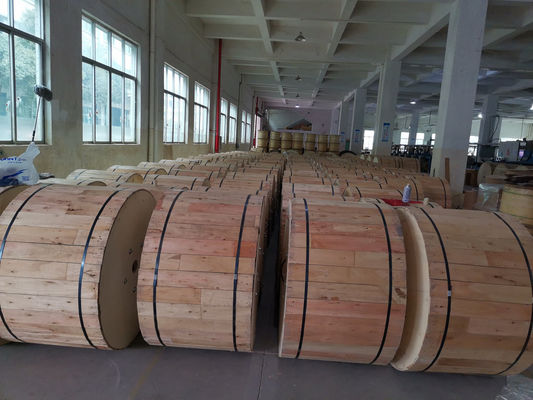

Packaging Details: Wooden Drum
Delivery Time: 2-4 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 80000kilometers per month
Product Description

Outdoor aerial self supporting 24core 48core g652d g657a fiber optical figure8 cable gytc8s ftth flat drop cable

Tchnical parameters

Performance Long-term Short-term
Max.Tension(N) 2500 4800
Max.Crushing 1000 1000
Resistance(N/100mm2) 20D(Dynamic) 10D(static)
Storage and operating temperature -20℃ to +70℃

Optical Characteristics:

  G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm   ≤3.0 dB/km ≤3.2 dB/km
@1300nm   ≤1.0 dB/km ≤1.2 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm   ≥500 MHz·km ≥200 MHz·km
@1300nm   ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture   0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm

Cable Specification:

Item Name:gytc8s cable

Optical Mode:Singlemode/Multimode

Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm

Total Fiber Count:2-144

Bend Radius(Static/Dynamic):10D/20D

Working Life:More than 25 years

Application:Aerial self-supporting,Local network,Local network,Long distance network communication.

Characteristics
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility



GYTC8S Figure 8 Aerial Fiber Optic Cable PE Jacket 0

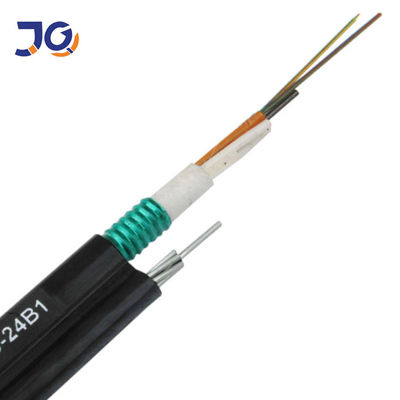

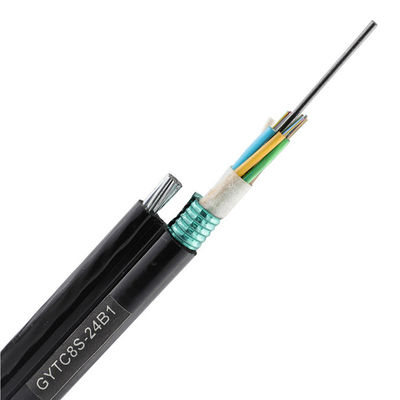

Cable Structure

GYTC8S Figure 8 Aerial Fiber Optic Cable PE Jacket 1
