24 Cores Single Mode GYTA Outdoor Fiber Optic Cable

Contact Now

24 Cores Single Mode GYTA Outdoor Fiber Optic Cable

Name: 24 Cores Single Mode GYTA Outdoor Fiber Optic Cable
Brand: Jiqian
SKU: GYTA
Price: 1 USD
Availability: InStock
Rating: 5 (119 reviews)

Minimum Order Quantity :	1KM	Packaging Details :	wooden drum
Delivery Time :	3-5 days, it depends on your quantity	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	60000KM/month

Place of Origin:	Guangdong,China	Brand Name:	Jiqian
Certification:	CE/ISO9001	Model Number:	GYTA

Detail Information
Fiber Count:	2-288 Cores	Jacket Material:	PE
Jacket Color:	Black	Lift Time:	25 Years
Length:	1km 2km 3km 4km	Fiber Brand:	YOFC
High Light:	24 Cores Outdoor Fiber Optic Cable , 24 Cores single mode fiber cable , YOFC single mode fiber cable

Product Description

Manufacturers 24 Cores Single Mode Armored Ducts GYTA Fibre Optic Cable

24 Cores Single Mode GYTA Outdoor Fiber Optic Cable 0

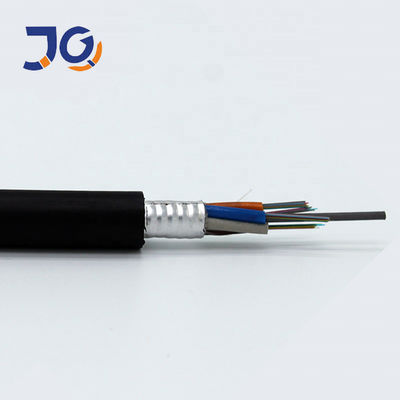

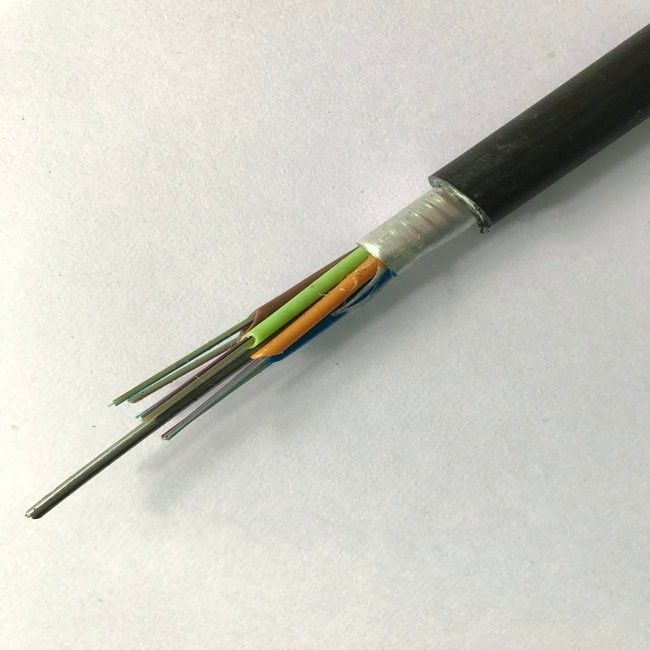

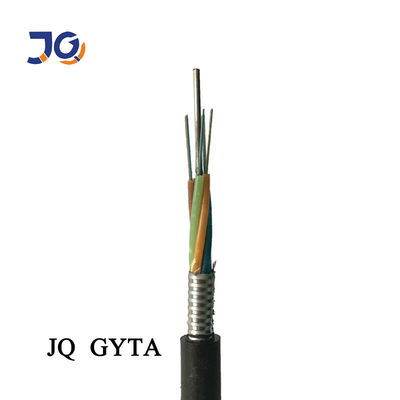

GYTA is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene. This fiber optic cable features the good mechanical and temperature performance.

GYTA is with high strength loose tube that is hydrolysis resistant and the optical cable filling materials ensure high reliability, its APL makes the cable crush resistant and moisture proof.

24 Cores Single Mode GYTA Outdoor Fiber Optic Cable 1

Feature:

1. Good mechanical and temperature performance

2. High strength loose tube that is hydrolysis resistant

3. Special tube filling compound ensure a critical protection of fiber

4.Specially designed compact structure is good at preventing loose tubes from shrinking

5.PE sheath protects cable from ultraviolet radiation

Application

Fiber parameter


			Item
			Unit
			Specification


			Fiber Type
			G.652D


			Mode field diameter
			1310nm
			mm
			9.2±0.4


			1550nm
			mm
			10.4±0.8


			Cladding diameter
			mm
			125.0±1


			Cladding non-circularity
			%
			£1.0


			Core/cladding concentricity error
			mm
			£0.5


			Coating diameter
			mm
			245±5


			Coating non-Circularity
			%
			£6.0


			Coating/cladding concentricity error
			mm
			£12.0


			Cable cut-off wavelength
			nm
			£1260


			Attenuation Coefficient
			1310nm
			dB/km
			£0.36


			1550nm
			dB/km
			£0.22


			Proof stress level
			kpsi
			≥100



Packaging Details

1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;

2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Factory Show

We still have more. Please feel free to contact me. Whatsapp: +86 18122383351

Tag:

ADSS Fiber Optic Cable(156)

Outdoor Fiber Optic Cable(211)

Aerial Fiber Optic Cable(86)

Duct Fiber Optic Cable(56)

Underground Fiber Optic Cable(65)

Figure 8 Fiber Optic Cable(73)

OPGW Fiber Optic Cable(14)

Indoor Fiber Optic Cable(17)

FTTH Fiber Optic Drop Cable(64)

Fiber Optic Patch Cord(27)

Fiber Optic Connector(12)

Fiber Optic Accessories(41)

24 Cores Single Mode GYTA Outdoor Fiber Optic Cable

24 Cores Outdoor Fiber Optic Cable

24 Cores single mode fiber cable

YOFC single mode fiber cable

GYXTC8S Aerial Fiber Cable

GYXTC8S figure 8 fiber cable

2.0mm Wire Outdoor Fiber Optic Cable

Guangzhou Jiqian Fiber Optic Cable Co., Ltd.

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	£1.0
Core/cladding concentricity error		mm	£0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	£6.0
Coating/cladding concentricity error		mm	£12.0
Cable cut-off wavelength		nm	£1260
Attenuation Coefficient	1310nm	dB/km	£0.36
Attenuation Coefficient	1550nm	dB/km	£0.22
Proof stress level		kpsi	≥100
