Uni Loose Tube Steel Tape Armored 24 Core Single Mode Fiber Cable

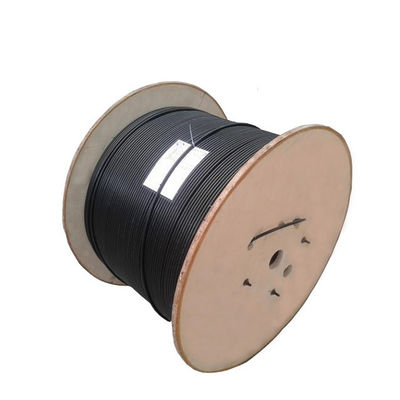

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000 kilometers per month
Place of Origin: China Brand Name: JQ/OEM
Certification: CE/ISO9001 Model Number: GYXTW

Detail Information

Out Color: Black Strength Member: 2 Parallel Steels
Jacket: PE Loose Tube Color:: At Your Request
Operating Temperature: -40°C~+70°C Place Of Origin: Guangdong, China
Fiber Type: G652D Application: Aerial/Duct
High Light:

24 core single mode fiber cable

,

G657A loose tube fiber cable

,

G657A single mode fiber cable

Product Description

outdoor single mode unitube G652D 4 6 8 12 16 24 core armoured fiber optical cable with steel wire fibra optic gyxtw

Characteristics

1.Good mechanical and temperature performance
2.High strength loose tube that hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber itself
4.Crush resistance and flexibility
5.PSP enhanceing moisture-proof
6.Two parallel steel wires ensure tensile strength
7.Small diameter,light weight and friendly installation
8.Long delivery length

Cable structure and parameter

Fiber
count
Outer diameter Nominal weight Max.tensile strength(Short term/Long term) Min.Bending Radius(Dynamic/Static) Max.Crush Resistance
mm kg/km N D N/100mm²
2468 8.3 66 1500/600 20/10 3000
1012 9.0 82 1500/600 20/10 3000

Fiber parameter



Item Unit Specification
Fiber Type G.652D



Mode field diameter

1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260



Attenuation Coefficient

1310nm dB/km ≤0.36
1550nm dB/km ≤0.22
Proof stress level kpsi ≥100

Cable bending radius: 10 x cable diameter (static)

20 x cable diameter (dynamic)

Application temperature range

Operating temperature range -40℃ to +60℃
Storage / Transport temperature range -40℃ to +60℃
Installation temperature range -20℃ to +50℃


Uni Loose Tube Steel Tape Armored 24 Core Single Mode Fiber Cable 0

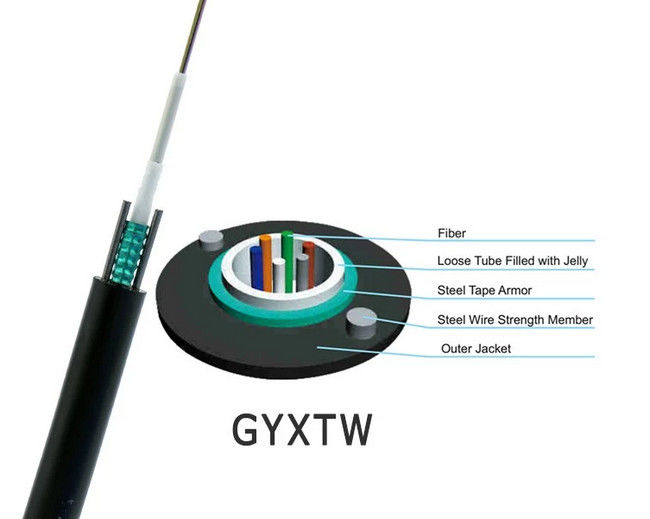

Cable Structure

Uni Loose Tube Steel Tape Armored 24 Core Single Mode Fiber Cable 1
Uni Loose Tube Steel Tape Armored 24 Core Single Mode Fiber Cable 2

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
