Outdoor Figure 8 Double Jacket Single Armoured Fiber Optic Cable DJSA

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 working days ,it depends on your order Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: ISO9001 Model Number: GYTC8Y53

Detail Information

Fiber Count: 2-144 Core Lift Time: 25 Years
Fiber Type: G652D Application: Aerial
Factory: Yes OEM: Yes
Jacket: PE Color: Black
High Light:

Single Armoured Fiber Optic Cable

,

Outdoor Figure 8 Fiber Optic Cable

,

G652D Figure 8 Fiber Optic Cable

Product Description

Outdoor Figure 8 Double Jacket Single Armoured Fiber Optic Cable DJSA

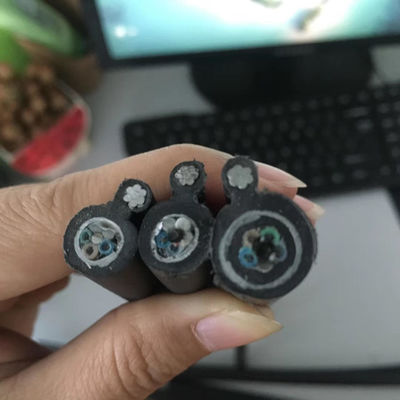

Outdoor Figure 8 Double Jacket Single Armoured Fiber Optic Cable DJSA 0
  Product Details

Overhead Double Jacket Single Armor (DJSA) Cable is designed especially for aerial installations while incorporating a Metallic armor and double jacket when extra mechanical protection is desired.

With fiber counts up to 288 and S-Z strand designs.

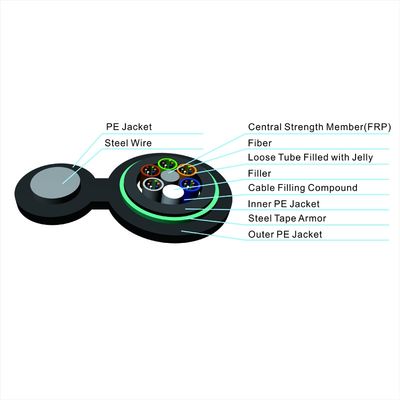

Product Construction
Fiber:
2-288 fibers
Uni-loose tube gel-filled
Armor:
Corrugated steel tape
OuterJacket:
Black UV-and moisture-resistant polyethylene (PE).


Features

Loose tube gel-filled construction for superior fiber protection.

Corrugated steel tape armor and double jacket design to protect cable from mechanical damage.

Self-supporting Figure 8 design.


Applications

Inter building voice or data communication backbones.

Aerial installation.

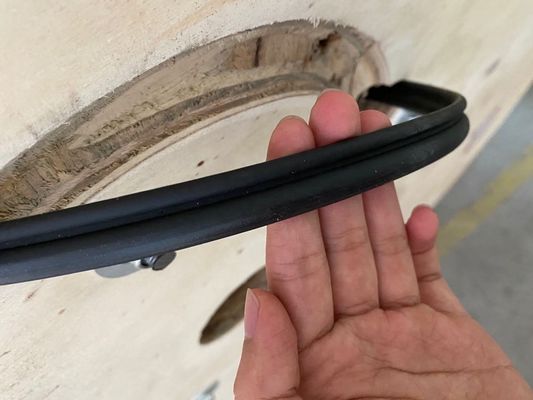

Outdoor Figure 8 Double Jacket Single Armoured Fiber Optic Cable DJSA 1

Mechanical and Environmental Characteristics

Item Unit Specifications
Tension(Long Term) N 2500
Tension(Short Term) N 5000
Crush(Long Term) N/10cm 300
Crush(Short Term) N/10cm 1000
Min. Bend Radius(Dynamic) mm 20D
Min.Bend Radius(Static) mm 10D
Installation Temperature -40~+60
Operating Temperature -40~+70
Storage Temperature -40~+70
Repeating bending Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
Torsion Load:250N; number of cycles:10; twist angle:±90° No obvious addition attenuation, no fiber break and no cable damage.
Impact Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage.

Factory


Outdoor Figure 8 Double Jacket Single Armoured Fiber Optic Cable DJSA 2

We are the factory, having quality control.

We privide you factory price.You can save costs, having good quality.



Outdoor Figure 8 Double Jacket Single Armoured Fiber Optic Cable DJSA 3

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed



Outdoor Figure 8 Double Jacket Single Armoured Fiber Optic Cable DJSA 4

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351





FQA



1,Q:Are you a factory or trade company?

A:We are a factory



2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?

A:Yes, small order is available .We support new project of our customers as we know business is always from small order.



5,Q:What’s delivery time?

A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
