OEM GYTA Duct Aerial Outdoor Fiber Optic Cable Loose Tube Stranded

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 3-5days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Place of Origin: Guangdong,China Brand Name: JQ/OEM
Certification: CE/ISO9001 Model Number: GYTA

Detail Information

Place Of Origin:: Guangzhou,China Fiber Count: 2-288cores
Material Of Jacket: PE Application: Aerial And Duct
Fiber Brand: YOFC Structure: Loose Tube Stranded
Strength Member: Steel Cable Type: GYTA
High Light:

Duct Outdoor Fiber Optic Cable

,

OEM Outdoor Fiber Optic Cable

,

YOFC Fiber Optic Cable

Product Description

Fiber Optic Cable GYTA Duct Aerial Optical Fiber Cable

Characteristics:

1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber.
4. Crush resistance and flexibility.
5. PSP enhancing moisture-proof
6. Tow parallel steel wires ensure tensile strength
7. Small diameter, light weight and easily installation

Features:

Up to 288 fibers.

Loose tube gel-filled construction for superior fiber protection.

Corrugated steel tape armor to protect cable from mechanical damage.

UV and waterproof design.

Dimensions of Cable Constructions





Fiber count







Structure



Fibers per tube



Loose tube diameter (mm)



CSM

diameter/pad diameter (mm)

Nominal Thickness of outer jacket

(mm)



Cable diameter/ Height (mm)



Cable weight (kg/km)

4 1+5 4 1.8±0.1 1.4/1.4 1.4 8.5±0.3 75
6 1+5 6 1.85±0.1 1.4/1.4 1.4 8.5±0.3 75
8 1+5 8 1.9±0.1 1.4/1.4 1.4 8.5±0.3 75
12 1+5 6 1.85±0.1 1.4/1.4 1.4 8.5±0.3 75
24 1+5 6 1.85±0.1 1.4/1.4 1.4 8.5±0.3 75
36 1+6 12 1.95±0.1 1.5/1.5 1.6 8.8±0.3 85
48 1+5 12 1.95±0.1 1.5/1.5 1.6 9.3±0.3 90
60 1+5 12 1.95±0.1 1.6/1.6 1.6 9.3±0.3 90
72 1+6 12 1.95±0.1 2.0/2.0 1.6 9.6±0.3 95
96 1+8 12 1.95±0.1 1.4/3.2 1.6 11.5±0.3 120
144 1+12 12 1.95±0.1 2.0/5.7 1.8 14.2±0.3 185
216 1+6+12 12 1.95±0.1 2.0/2.0 1.8 14.5±0.3 200
288 1+9+15 12 1.95±0.1 2.0/3.7 1.8 16.2±0.3 240

We produce and test cable comply with following standard:

Mechanical Performance
Max Tension Performance IEC 60794–1-2-E
Max. Operation Tension IEC 60794–1-2-E1
Crush Test IEC 6079 –1-2-E3
Impact Test IEC 60794–1-2-E4
Repeated Bending IEC 60794–1-2-E6
Torsion Test IEC 60794–1-2-E7
Cable bend IEC 60794–1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC-60793-1-20
Environmental Performance
Temperature Cycling IEC 60794–1-2-F1
Water Penetration IEC 60794–1–2-F5B
Filing Compound Flow

IEC 60794-1-E14

Product Description

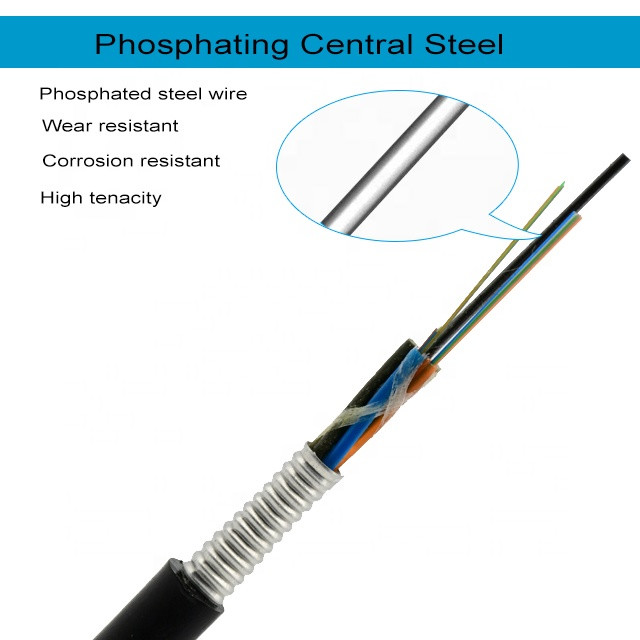

The fibers, 125um,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes(and fillers) are stranded around the strength member into a compact andcircular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.

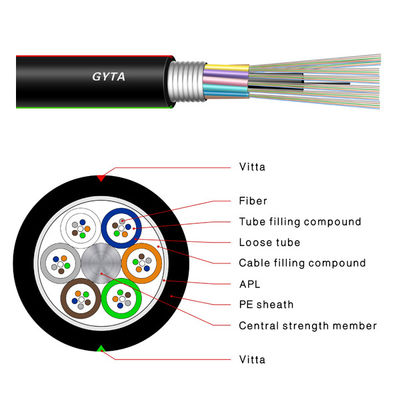

Cable Structure

GYTS Moisture Resistant Steel Tape Armoured 12 24 748 72 Core Outdoor Optic Fiber  Cable Price

Application:

Backbones and Access.

Installed in ducts, Aerial

Packing

Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers

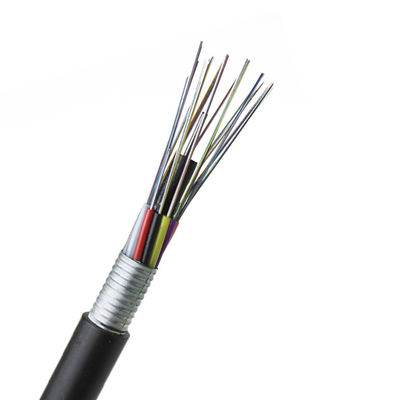

OEM GYTA Duct Aerial Outdoor Fiber Optic Cable Loose Tube Stranded 1

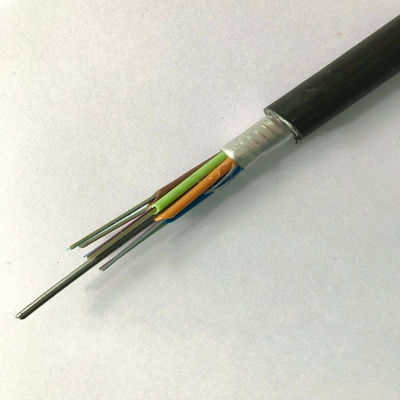

OEM GYTA Duct Aerial Outdoor Fiber Optic Cable Loose Tube Stranded 2

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
