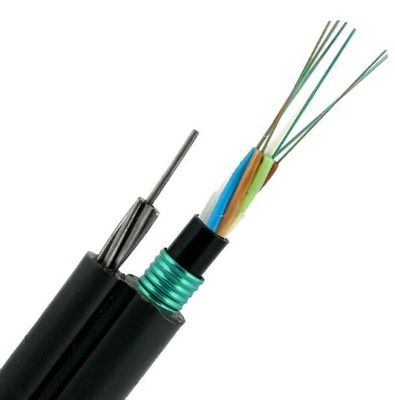

GYTC8S Figure 8 Self Supporting Fiber Optic Cable 24 48 Core Aerial Steel Messenger Overhead

1 Kilometer
MOQ
Inquiry for price
Price
GYTC8S Figure 8 Self Supporting Fiber Optic Cable 24 48 Core Aerial Steel Messenger Overhead
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: GYTC8S- 24 48Core
Fiber Type: G652D Single Mode Or As Your Request
Jacket: PE,MDPE,LSZH,PVC,HDPE
Central Strength Member: Steel Wire
Armor: Steel Tape
Package: Wooden Drum/Customized
Application: Telecom/network
Fiber No: 2-12 Fiber Cores
Highlight:

24 core figure 8 fiber optic cable

,

48 core aerial steel messenger cable

,

self supporting overhead fiber optic cable
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: JQ/OEM/Customize
Certification: CE/ISO9001/RoHS/FCC
Model Number: GYTC8S/GYFTC8S
Payment & Shipping Terms
Packaging Details: Wooden drum or Customized
Delivery Time: 2-5days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 8000 kilometers per month
Product Description

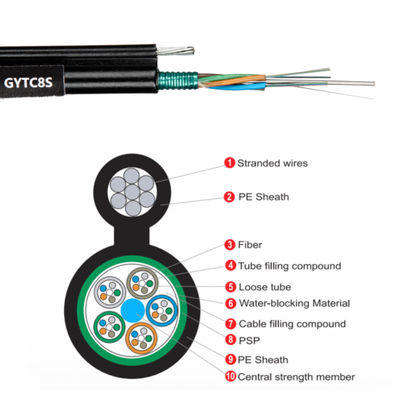

GYTC8S Aerial Fiber Optic Cable Steel Messenger Armored Outdoor Cable



Product Introduction:
GYTC8S is a self-supporting aerial fiber optic cable with stranded loose tube structure, designed for outdoor communication with strong mechanical and environmental performance.



Key Features:

  • Steel messenger wire for self-supporting installation

  • Corrugated steel tape for enhanced crush resistance

  • PE outer sheath for weather protection

  • Supports 1–144 fiber cores

  • High tensile strength for long-span use

Applications:

  • Outdoor aerial installations

  • Long-distance communication lines

  • LAN and data networks

  • Subscriber access systems

  • CATV and telecom networks

Product Parameters:

Model fiber cores OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm
GYTC8S 12-288 7-20mm 70-300 3500/7000N 300/1000 15D/30D


Specification:

item value
Model Number GYTC8S
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Structure Multi loose tube
Number of Conductors ≥ 10
Fiber count 2-144 Cores
Fiber Type G652D Single mode or as your request
Central strength member Steel wire
Loose tube Jelly filled
Loose tube PBT
Jacket Sheath PE
Color Black or as your need
Package Plywood Reel/customized
Application Aerial,Overhead
operating temperature -40 to +70
Certification CE/ROHS/ISO9001

Optical Characteristics:

  G.655 50/125μm 62.5/125μm
G.652
Attenuation '@850nm     ≤3.0 dB/km
(+20℃) '@1300nm     ≤1.0 dB/km
  '@1310nm ≤0.34 dB/km ≤0.40 dB/km
  '@1550nm ≤0.21 dB/km ≤0.23 dB/km
  '@850nm     ≥500 MHz·km
  '@1300nm     ≥1000 MHz·km
Numerical Aperture     0.200±0.015NA

GYTC8S Figure 8 Self Supporting Fiber Optic Cable 24 48 Core Aerial Steel Messenger Overhead 0





GYTC8S Figure 8 Self Supporting Fiber Optic Cable 24 48 Core Aerial Steel Messenger Overhead 1

Certification:

GYTC8S Figure 8 Self Supporting Fiber Optic Cable 24 48 Core Aerial Steel Messenger Overhead 2



GYTC8S Fiber Optic Cable FAQ



Q1: What is GYTC8S cable used for?
A: It is used for outdoor aerial installations in telecom and data transmission networks.



Q2: What makes GYTC8S self-supporting?
A: It has a built-in steel messenger wire for aerial installation without extra support.



Q3: How many fiber cores does it support?
A: It supports from 1 to 144 fiber cores.



Q4: Is GYTC8S suitable for harsh environments?
A: Yes, it has steel tape armor and PE sheath for strong protection.



Q5: Where is GYTC8S commonly applied?
A: It is used in long-distance communication, LAN, CATV, and access networks.
