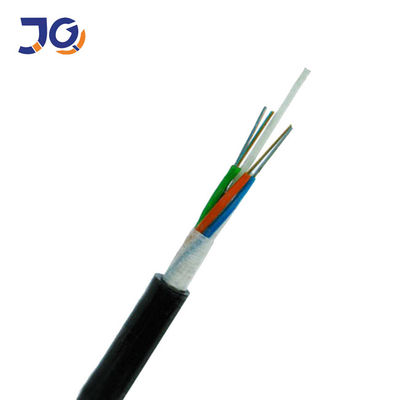

Outdoor 2 to 288 Cores GYFTY Stranded Optical Fiber Cable with FRP
Characteristics
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
Small diameter, light weight and friendly installation

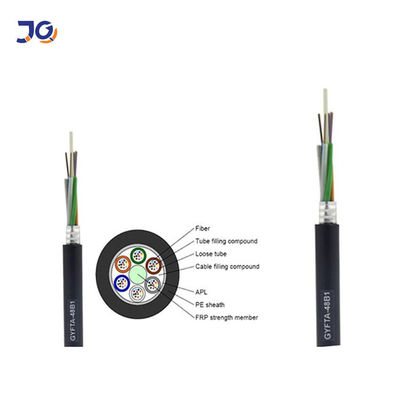

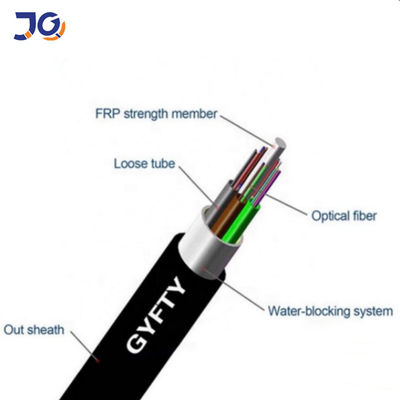

Dimensions of Cable Constructions
|
Fiber count |
Structure |
Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.6 | 8.6±0.2 | 60 |
| 6 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.6 | 8.6±0.2 | 60 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.6 | 8.6±0.2 | 60 |
| 12 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.6 | 8.6±0.2 | 60 |
| 24 | 1+5 | 6 | 1.85±0.3 | 1.4/1.4 | 1.6 | 8.8±0.2 | 65 |
| 36 | 1+5 | 12 | 1.95±0.1 | 1.5/1.5 | 1.6 | 9.0±0.2 | 65 |
| 48 | 1+5 | 12 | 1.95±0.1 | 1.5/1.5 | 1.6 | 9.0±0.2 | 65 |
| 72 | 1+6 | 12 | 1.95±0.1 | 2.0/2.0 | 1.6 | 9.5 | 75 |
| 96 | 1+8 | 12 | 1.95±0.1 | 1.6/3.2 | 1.6 | 11.0 | 103 |
| 144 | 1+12 | 12 | 1.95±0.1 | 2.2/6.4 | 1.8 | 13.8 | 160 |
Fiber Properties
The properties of single mode optical fiber (ITU-T Rec. G.652D)
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
|
Mode field diameter |
1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | mm | ≤0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | mm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
|
Attenuation Coefficient |
1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 | |
| Proof stress level | kpsi | ≥100 | |
Cable bending radius: 10 x cable diameter (during operation)
20 x cable diameter (during installation)
Temperature range
| Operating temperature range | -40℃ to +70℃ |
| Storage / Transport temperature range | -40℃ to +70℃ |
| Installation temperature range | -40℃ to +60℃ |
Application:
Long-distance telecom, LAN in high-voltage area or access to telecom network
Especially for power transmission system. excessive thunderareas and high electromagnetic interference.
Recommended layings methods
High-voltage area, Aerial
Advantages:
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.
Packing

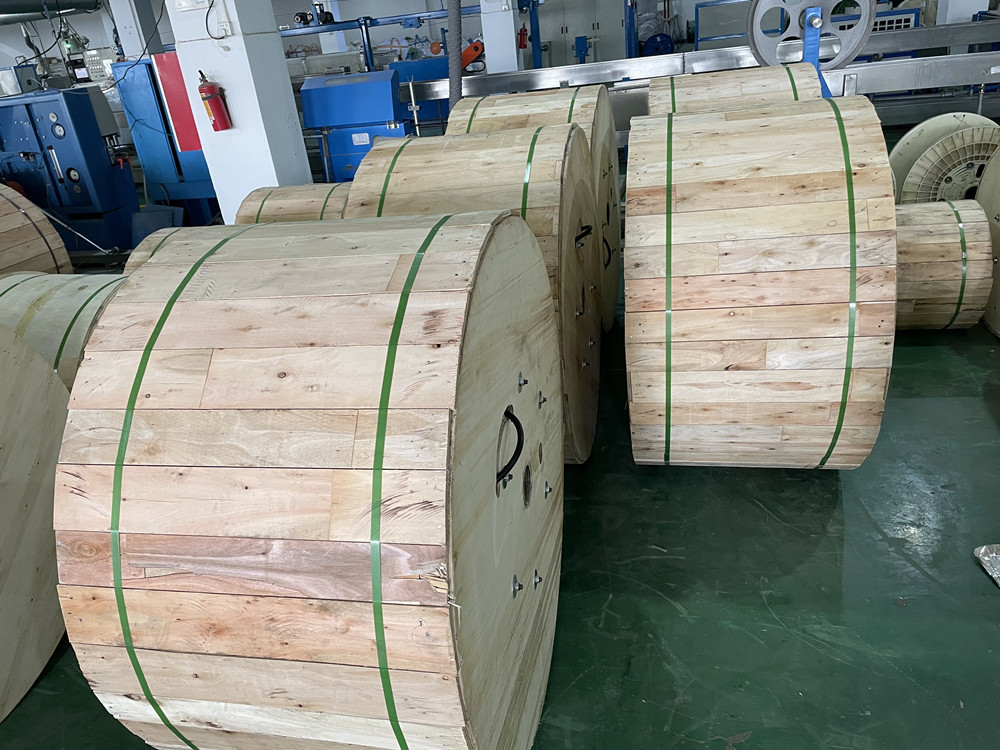

Each single length of cable shall be reeled on Fumigated Wooden Drum suitable for long distance shipment.
Covered by plastic buffer sheet.
Sealed by strong wooden battens.
At least 1 Km of inside end of cable will be reserved for testing.
