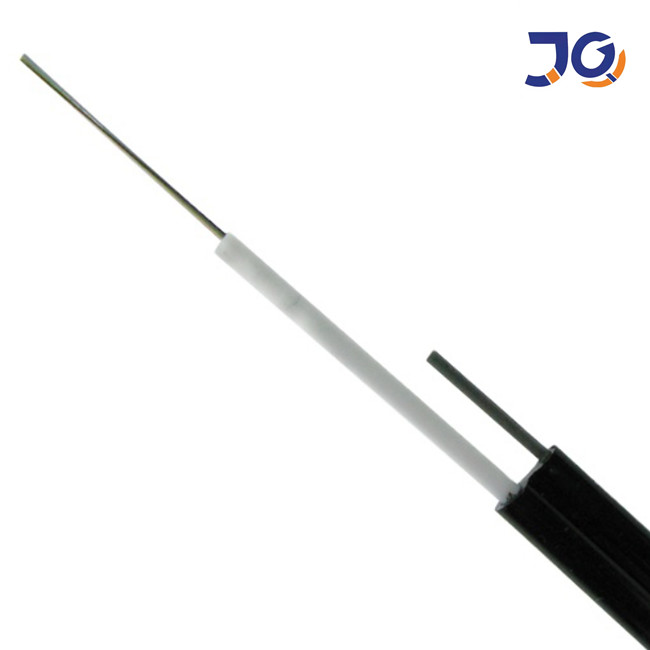

2-12 Core High Quality GYXTC8Y Outdoor Figure 8 Fiber Optic Cable For Telecommunication

1kilometer
MOQ
2-12 Core High Quality GYXTC8Y Outdoor Figure 8 Fiber Optic Cable For Telecommunication
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Cable
Suspension Wire Material: Steel Wire
Sheath Material: PE Or LSZH
Applicaion: Aerial
Product Name: Outdoor Aerial GYXTC8Y 12 Core Figure 8 Optical Fiber Cable
Temperature Range: -20°~60°C
Fiber Type: G.652D
Life Span: More Than 30 Years
Highlight:

Outdoor Figure 8 Fiber Optic Cable

,

GYXTC8Y Figure 8 Fiber Optic Cable
Basic Infomation
Place of Origin: Guangdong China
Brand Name: JQ
Certification: ISO9001/ ROHS/ CE/ FCC
Model Number: gyxtc8y
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 4-6 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 8000 kilometers per month
Product Description

Wholesale Price GYXTC8Y Singlemode Multimode Duct Overhead Figure8 Fiber Optic Cable FTTH 6 8 12 Core

Product Description
2-12 Core High Quality GYXTC8Y Outdoor Figure 8 Fiber Optic Cable For Telecommunication 0

Applicaiton:

The cable is specifically for self-supporting aerial installation
Long-distance communication, local trunk line, CATV & computer networks system



Introduction:

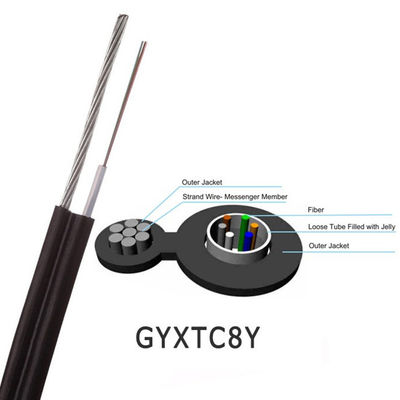

The fibers, 250μm , are positioned in a loose tube made of a high modulus plastic. The
tubes are filled with a water-resistant filling compound. A steel wire locates in the center
of core as a metallic strength member. The tubes (and fillers) are stranded around the
strength member into a compact and circular cable core. After an Aluminum Polyethylene
Laminate (APL) moisture barrier is applied around the cable core, this part of cable
accompanied with the stranded wires as the supporting part are completed with a
polyethylene (PE) sheath to be figure 8 structure.

The loose tube is made of high modulus plastics (PBT), which are filled with water resistant gel. The corrugated steel tape is applied which provide for crush resistant. Outer sheath is made of UV resistance PE jacket. Figure-8 self-supporting structure provides high tensile strength and enables easy and cost saving aerial installations.


Characteristics:

1. Low attenuation, low dispersion
2. Outstanding mechanical and environmental performance due to proper design, accurate excess length and cabling process
3. Stranded steel tape armor ensures better moisture resistance and side pressure resistance
4. Compact construction, light weight, suitable for self-supporting.



Cable Dimensions and Constructions
Items
Descriptions

Fiber
Fiber type
G.652D
Fiber count
2~12
Color
Green/Yellow/White/Blue/Red//Violet/Brown/
Pink/Black/Grey/Orange/Aqua

Loose tube
Material
PBT
Diameter
2- 6cores:2.3 ±0.1mm
8-12 cores: 2.5 ±0.1mm
Water-blocking material
Gel-filled

Strength Member
Material
Aramid yarn/ Glass Yarn
Material
Water-blocking aramid yarn
Messenger Wire
Material
Phosphatizing/Galvanized Steel wire
Diameter
1.2mm/1.0MM/1.3MM


Outer jacket
Material
PVC/LSZH
Color
Black
Thickness
2-12 cores: 0.8 ±0.2mm
Diameter
2-12 cores: 4.7-2.9-8.7mm±0.3mm

Packing:

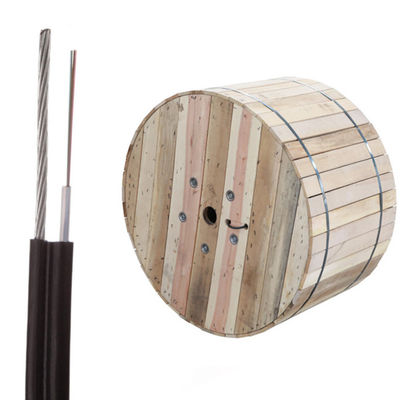

1/2/3/4km or customized length export wooden drum



2-12 Core High Quality GYXTC8Y Outdoor Figure 8 Fiber Optic Cable For Telecommunication 12-12 Core High Quality GYXTC8Y Outdoor Figure 8 Fiber Optic Cable For Telecommunication 2
