Home /Products/Outdoor Fiber Optic Cable/Armored Single Mode G.625d Outdoor Fiber Optic Cable gyxtc8y Figure 8

Armored Single Mode G.625d Outdoor Fiber Optic Cable gyxtc8y Figure 8

1kilometer
MOQ
Armored Single Mode G.625d Outdoor Fiber Optic Cable gyxtc8y Figure 8
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Cable
Suspension Wire Material: Steel Wire
Sheath Material: PE
Applicaion: Aerial
Product Name: Outdoor Aerial GYXTC8Y 12 Core Figure 8 Optical Fiber Cable
Temperature Range: -20°~70°C
Fiber Type: G.652D
Life Span: More Than 30 Years
Highlight:

G.625d Outdoor Fiber Optic Cable

,

gyxtc8y Outdoor Fiber Optic Cable
Basic Infomation
Place of Origin: Guangdong China
Brand Name: JQ
Certification: ISO9001/ ROHS/ CE/ FCC
Model Number: gyxtc8y
Payment & Shipping Terms

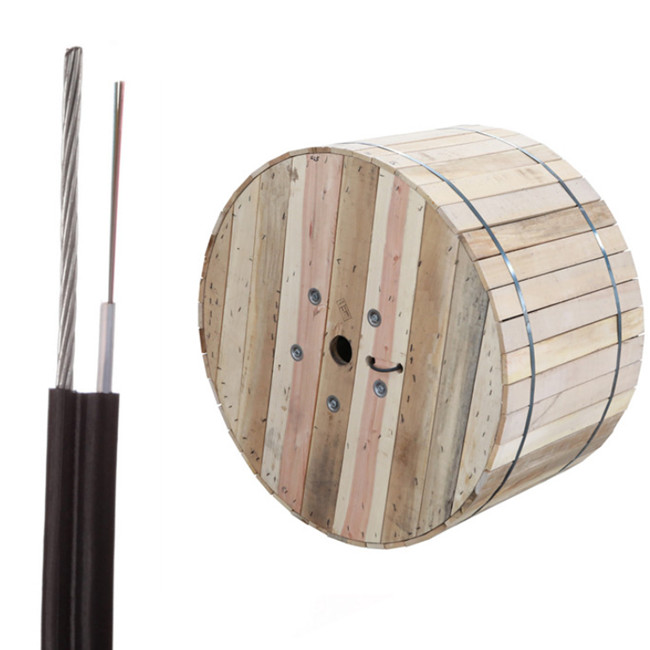

Packaging Details: Wooden Drum
Delivery Time: 4-6 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 8000 kilometers per month
Product Description

Introduction:

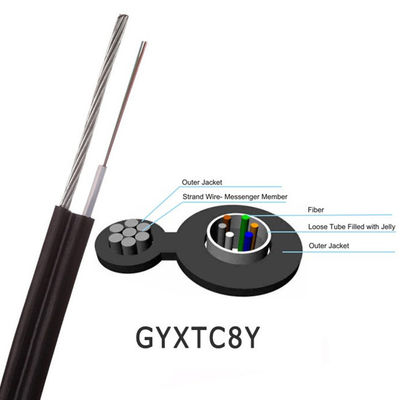

The cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration. This set unit and galvanized steel messenger are covered with polyethylene outer jacket.

features:

Loose tube gel-filled construction for superior fiber protection.
UV and moisture-resistant design
Self-supporting Figure 8 design.

Standards:

Comply with Standard YD/T 1155-2001 as well as IEC60794-1.

Tempeature:

Operating /Storage:-20°c +70°c

Cable Dimensions and Constructions
Items
Descriptions

Fiber
Fiber type
G.652D
Fiber count
2~12
Color
Green/Yellow/White/Blue/Red//Violet/Brown/
Pink/Black/Grey/Orange/Aqua

Loose tube
Material
PBT
Diameter
2- 6cores:2.3 ±0.1mm
8-12 cores: 2.5 ±0.1mm
Water-blocking material
Gel-filled

Strength Member
Material
Aramid yarn/ Glass Yarn
Material
Water-blocking aramid yarn
Messenger Wire
Material
Steel wire
Diameter
1.2mm/1.0MM/1.3MM


Outer jacket
Material
 PE
Color
Black
Thickness
2-12 cores: 0.8 ±0.2mm
Diameter
2-12 cores: 7.2±0.3mm×17.8mm±0.3mm

Applications

Backbones and Access.
Installed aerially.

Armored Single Mode G.625d Outdoor Fiber Optic Cable gyxtc8y Figure 8 0

Tag:

GYXTC8S Aerial Fiber Cable

GYXTC8S figure 8 fiber cable

2.0mm Wire Outdoor Fiber Optic Cable
