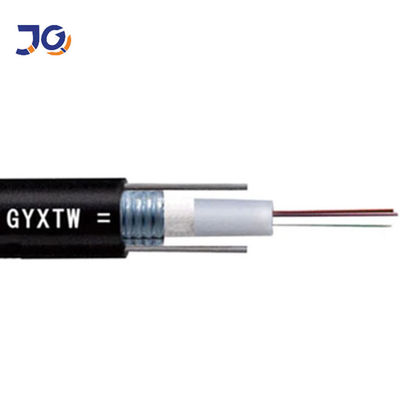

outdoor single mode G652D 4 6 8 12 16 24 core armoured fiber optical cable with steel wire fibra optic gyxtw

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000 kilometers per month
Place of Origin: China Brand Name: Jiqian/OEM
Certification: CE/ISO9001 Model Number: GYXTW

Detail Information

Out Color: Black Armoured: Steel Tape
Jacket: PE Strength Member: Steel Wire
Operating Temperature: -40°C~+70°C Place Of Origin: Guangdong, China
Fiber Type: G652D/G657A1/G657A2/G657B3 Fiber Type: Single Mode
Application: Networking
High Light:

6 Core Armored Optic Cable

,

8mm Armored Optic Cable

,

8 Core Armored Optic Cable

Product Description

8 core 8mm fiber optic OUFU optical fibre cable GYXTW single mode outdoor 6 core armored optic cable GYXTW53 for direct

Application:

Outdoor direct buried application;

 Long haul communication system;
Subscriber and local area network;

Voice,data,video and image system.

Mechnical Parameters:

Fiber Count Outer Diameter (mm) Cable Weight (kg/km) Max Tensile Strength (N) (Long/Short Term)
Max.crush Resistance
Bending Radius (Static/Dynamic)
2 8.3 66 1500/600 300 10D/20D
4 8.3 66 1500/600 300 10D/20D
6 8.3 66 1500/600 300 10D/20D
8 8.3 66 1500/600 300 10D/20D
10 9.0 82 1500/600 300 10D/20D
12 9.0 82 1500/600 300 10D/20D


Environmental Conditions:

Storage/Operating Temperature : -40℃ to + 70℃

Installation Temperature : -30℃ to + 60℃

Description:

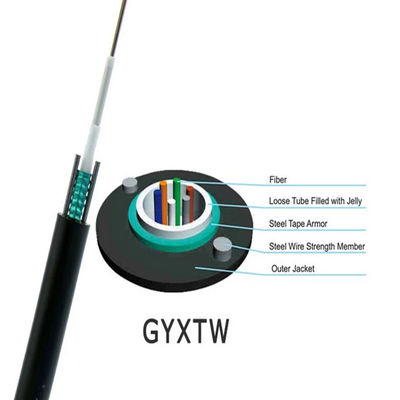

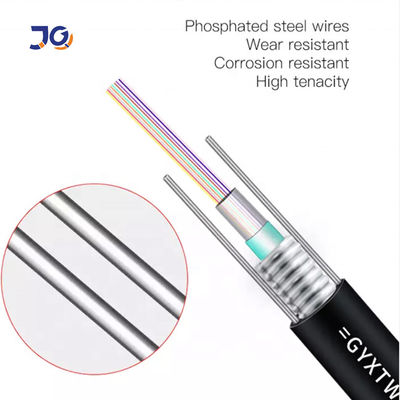

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of corrugated steel tape. Between the corrugated steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

outdoor single mode unitube G652D 4 6 8 12 16 24 core armoured fiber optical cable with steel wire fibra optic gyxtw

outdoor single mode G652D 4 6 8 12 16 24 core armoured fiber optical cable with steel wire fibra optic gyxtw 0


Unit tube 8 core fiber optic cable price per meter Double Jacket Armoured Optical Cable GYXTW53

Packing

1/2/3/4km or customized length export wooden drum

outdoor single mode G652D 4 6 8 12 16 24 core armoured fiber optical cable with steel wire fibra optic gyxtw 2

outdoor single mode G652D 4 6 8 12 16 24 core armoured fiber optical cable with steel wire fibra optic gyxtw 3

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
