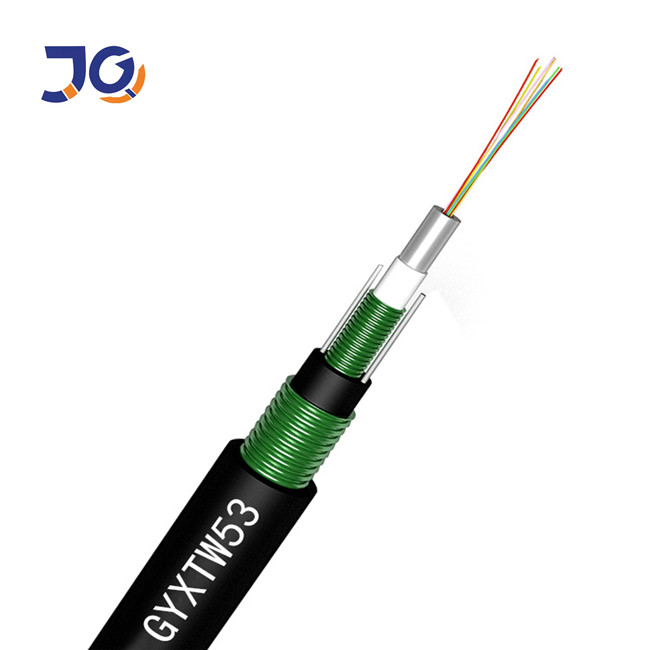

Customized Outdoor Fiber Optic Cable SM G652D Steel Wire Strength Member Armored GYXTW53

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000 kilometers per month
Place of Origin: China Brand Name: Jiqian/OEM
Certification: CE/ISO9001 Model Number: GYXTW53

Detail Information

Out Color: Black Armoured: Steel Tape
Cable Structure: Uni-Loose Tube CST Armor Strength Member: Steel Wire FRP KFRP
Operating Temperature: -30°C~+70°C Place Of Origin: Guangdong, China
Fiber Type: G652D/G657A1/G657A2/G657B3 Fiber Type: Single Mode
Application: Networking
High Light:

KFRP Outdoor Fiber Optic Cable

,

SM G652D Outdoor Fiber Optic Cable

,

Outdoor Fiber Optic Cable ArmoredGYXTW53

Product Description

Factory Customized Outdoor Fiber Cable SM G652D Steel Wire Strength Member Armored Fiber Optical Cable GYXTW53

Temperature Range
Transport/storage temp
-40℃~+70℃
Installation temp
-20℃~+70℃
Operation temp
-40℃~+70℃

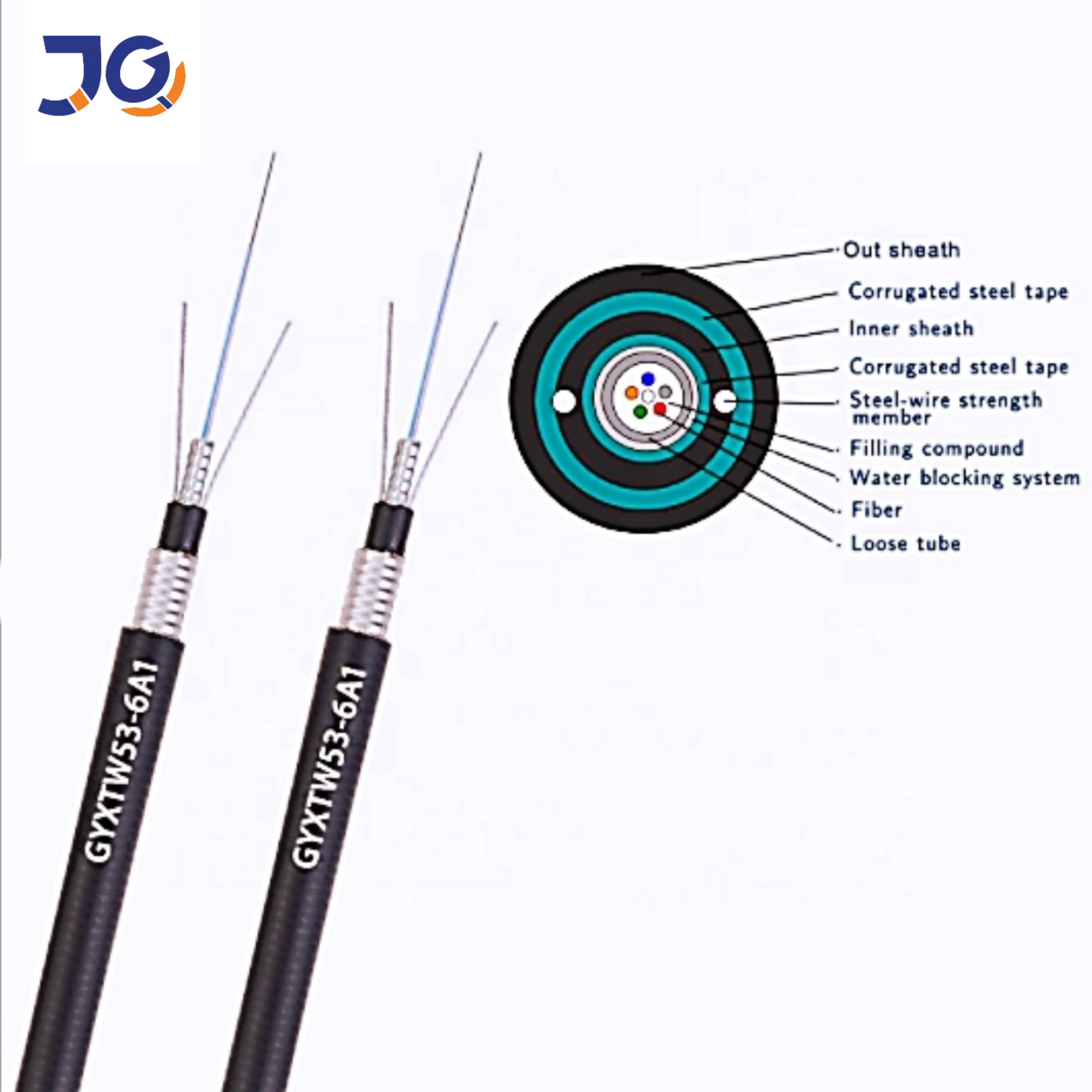

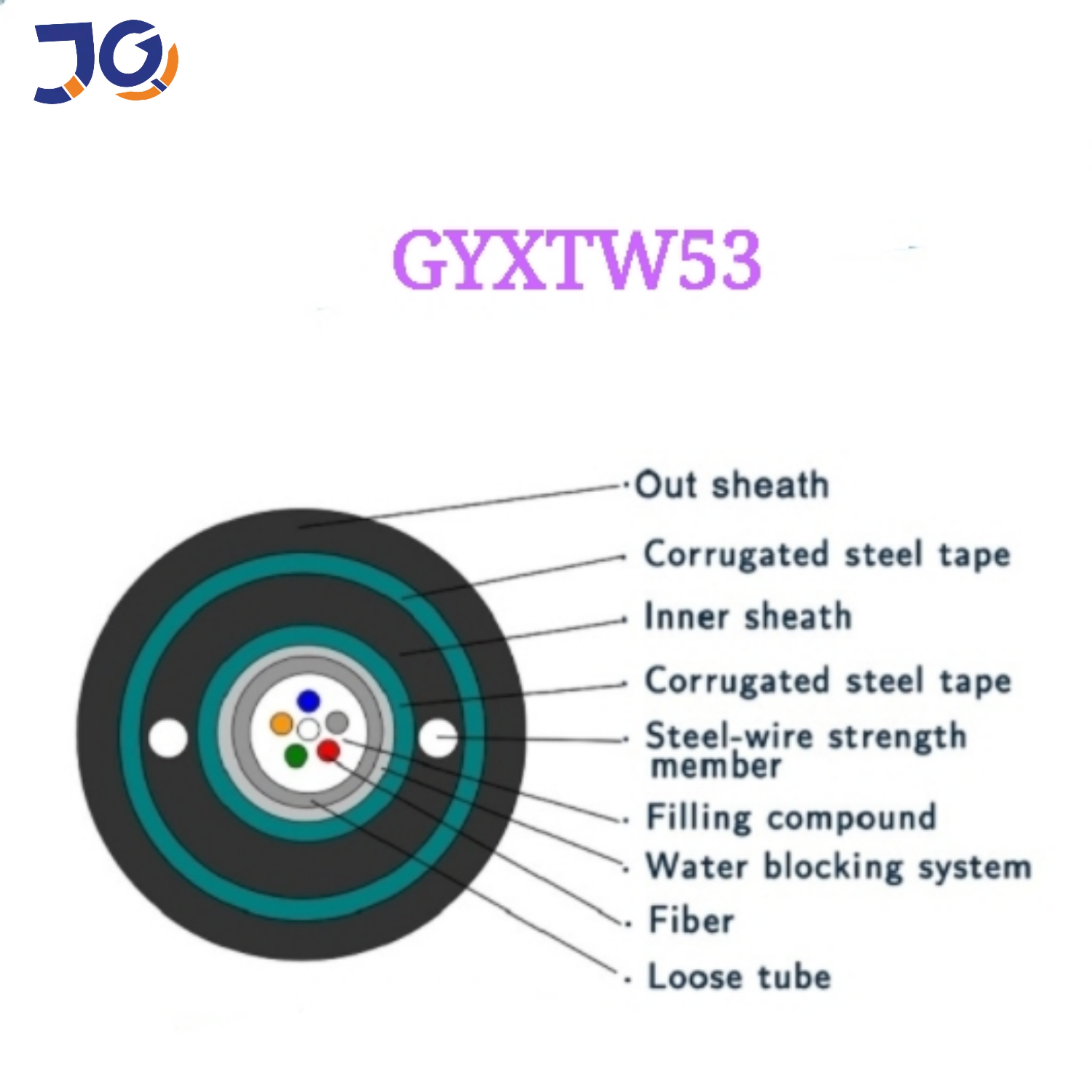

Structural Characteristics
Fiber count
2~288
Loose tube
Colored fiber in PBT loose tube, filled with fiber gel
Strength member
Two parallel steel wire
Corrugated steel-plastic tape
Ensure nice moisture proof and side pressure resisting capability of cable
sheath
PE

Standard:

IEC-60793-1, IEC 60793-2, IEC-60794-1, TIA/EIA-598-A, Telcordia GR-20-CORE,

ITU-T Recommendation G.652D/G.655/G.657A1/G.657A2/G.657B3, ISO/IEC 11801

Mechnical Parameters:

Fiber Count Cable Diameter (mm) Cable Weight (kg/km) Tension Strength (N) (Long/Short Term)
Crush Load (N/100mm) (Long/Short Term)
Bending Radius (Static/Dynamic)
2 12.0 120 1500/3000 600/2200 10D/20D
4 12.0 120 1500/3000 600/2200 10D/20D
6 12.0 120 1500/3000 600/2200 10D/20D
8 12.0 120 1500/3000 600/2200 10D/20D
10 12.0 120 1500/3000 600/2200 10D/20D
12 12.0 120 1500/3000 600/2200 10D/20D
24 12.0 120 1500/3000 600/2200 10D/20D
Item Unit Specification
Fiber Type G.652D



Mode field diameter

1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260



Attenuation Coefficient

1310nm dB/km ≤0.36
1550nm dB/km ≤0.22
Proof stress level kpsi ≥100

Environmental Conditions:

Storage/Operating Temperature : -40℃ to + 70℃

Installation Temperature : -30℃ to + 60℃

outdoor single mode unitube G652D 4 6 8 12 16 24 core armoured fiber optical cable with steel wire fibra optic gyxtw

Customized Outdoor Fiber Optic Cable SM G652D Steel Wire Strength Member Armored GYXTW53 0

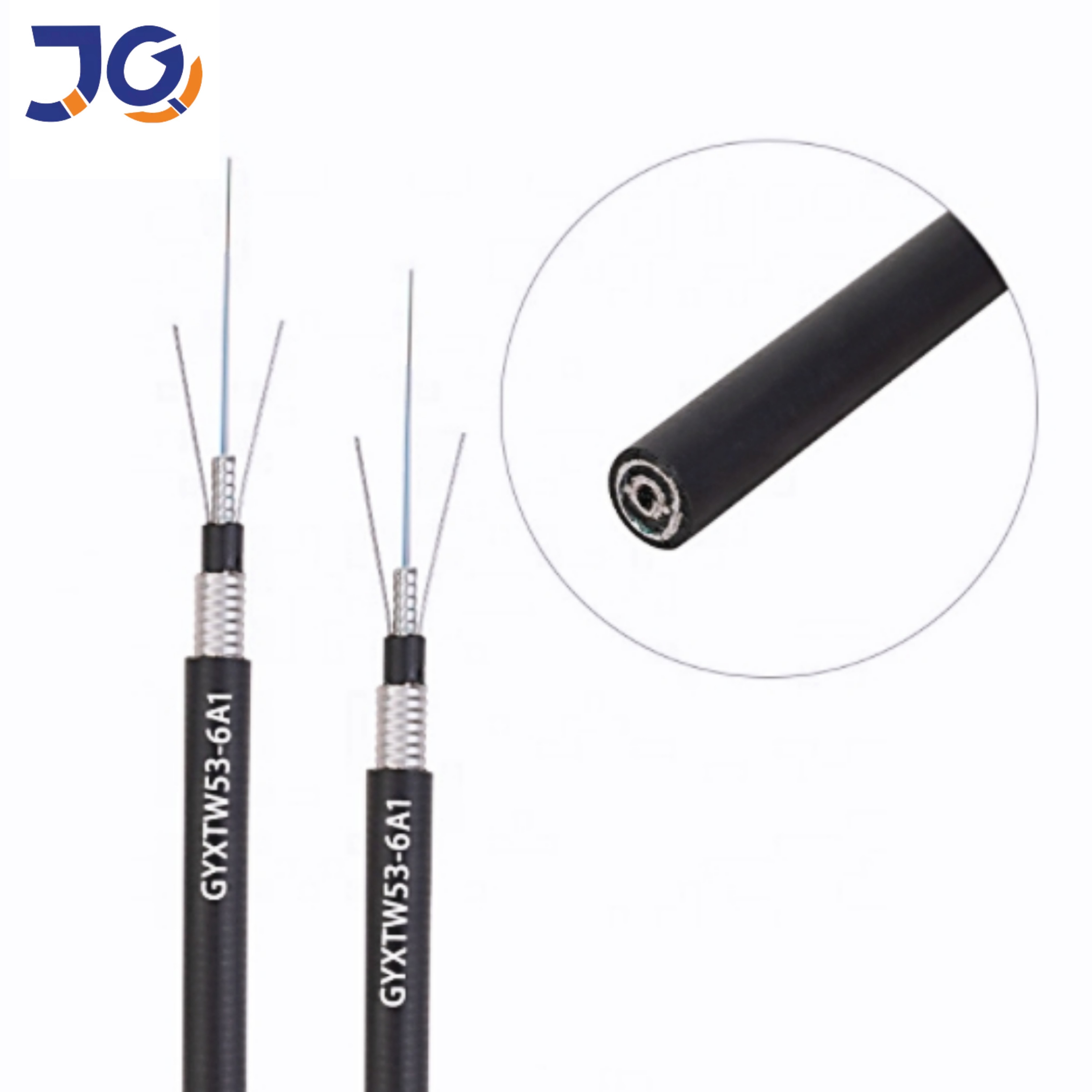

Description:

Customized Outdoor Fiber Optic Cable SM G652D Steel Wire Strength Member Armored GYXTW53 1


Unit tube 8 core fiber optic cable price per meter Double Jacket Armoured Optical Cable GYXTW53

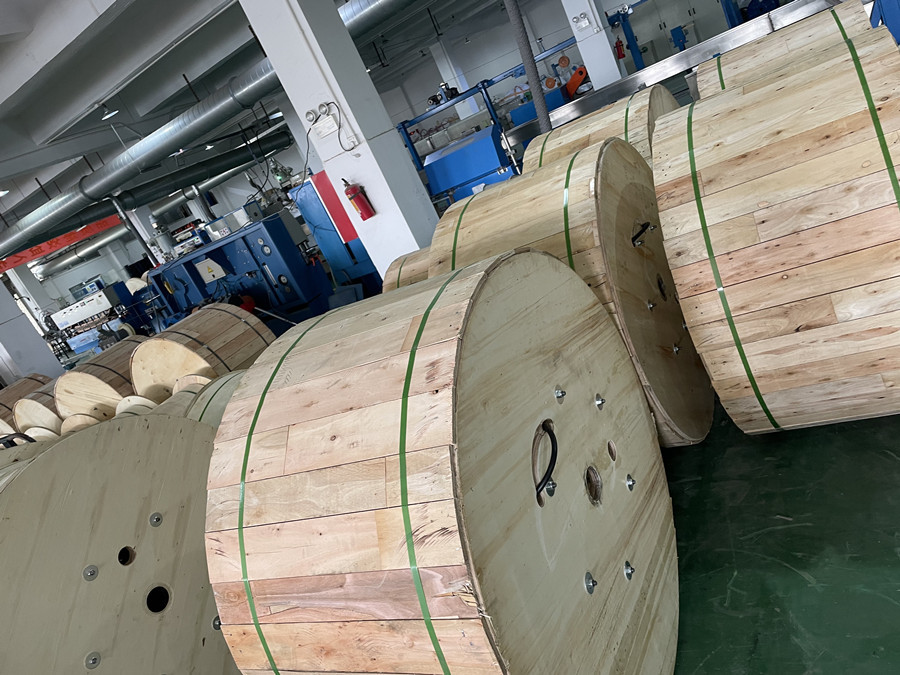

Packing and Shipping:

1/2/3/4km or customized length export wooden drum

By sea/by air or express delivery,it depends on the order quantity

Customized Outdoor Fiber Optic Cable SM G652D Steel Wire Strength Member Armored GYXTW53 3

Customized Outdoor Fiber Optic Cable SM G652D Steel Wire Strength Member Armored GYXTW53 4

FAQ

1.Are you trading company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable.Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
