HDPE Jacke Outdoor Fiber Optic Cable PVC Sheath Blue Single Mode

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000 kilometers per month
Place of Origin: China Brand Name: Jiqian/OEM
Certification: CE/ISO9001 Model Number: mgtsv

Detail Information

Out Color: Blue\Customized Armoured: Steel Tape
Jacket: PVC\LSZH \LSOH \PE \HDPE Strength Member: Stranded Loose Tube Mining Optical Fiber Cable
Number Of Conductors: ≥ 10 Place Of Origin: Guangdong, China
Fiber Type: G652D Fiber Type: Single Mode
Application: Telecommunication Keywords: Outdoor Cable
High Light:

HDPE Jacke Outdoor Fiber Optic Cable

,

ingle Mode Outdoor Fiber Optic Cable

Product Description

Outdoor PVC sheath Blue Single Mode Direct Buried Fiber Optic Cable 8 Core MGTSV for mining use price meter

Description:

MGTSV fiber optic cable, the fibers, 200μm or 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress. The PSP is longitudinally applied over the cable core, a thin PE inner sheath is applied, then the cable is completed with a PE outer sheath.

Features:

Good mechanical and temperature performance

High strength loose tube has good performance of water proof and high strength

Special tube filling compound ensure a critical protection of fiber
Crush resistance.
Two parallel steel wires ensure tensile strength
PSP enhancing moisture-proof and anti rodent
Good water resistance material prevent longitudinal seepage
Blue flame retardant PVC as second sheath to make the cable has good flame retardant performance.

Cable
Fiber Count
Tubes+Fillers
Cable Diameter mm
Cable Weight Kg/km
Tensile Strength Long/Short Term N
Crush Resistance Long/Short Term N/100m
Bending Radius Static/Dynamic mm
MGTSV-2~6
2~60
5
12.2
156
1000/2000
500/1500
10D/20D
MGTSV-62~72
62~72
6
13.8
210
1750/3500
500/1500
10D/20D
MGTSV-74~96
74~96
8
15.1
242

1750/3500
500/1500
10D/20D
MGTSV-98~120
98~120
10
17.2
280

1750/3500
500/1500
10D/20D
MGTSV-122~144
122~144
12
19
320

1750/3500
500/1500
10D/20D
MGTSV-146~216
146~216
18
19
320

1750/3500
500/1500
10D/20D

HDPE Jacke Outdoor Fiber Optic Cable PVC Sheath Blue Single Mode 0

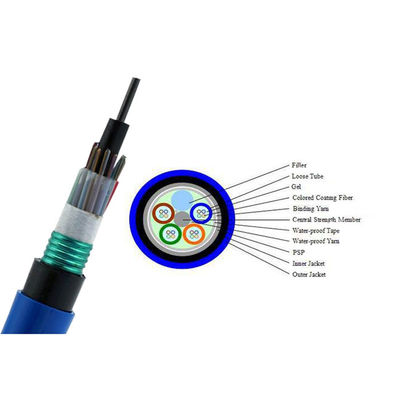

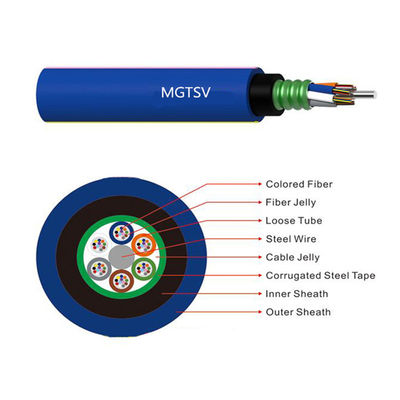

Structure

HDPE Jacke Outdoor Fiber Optic Cable PVC Sheath Blue Single Mode 1

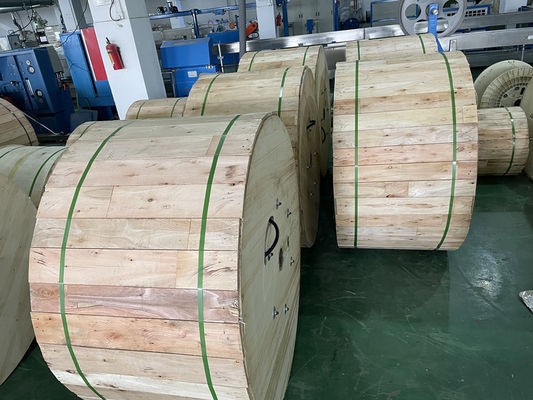

Packing

1/2/3/4km or customized length export wooden drum

HDPE Jacke Outdoor Fiber Optic Cable PVC Sheath Blue Single Mode 2

Application

Duct/Aerial/Direct Buried



HDPE Jacke Outdoor Fiber Optic Cable PVC Sheath Blue Single Mode 3

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,drop cable. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
