G652D MGTSV 72 Core Outdoor Fiber Optic Cable With Wooden Drum

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000 kilometers per month
Place of Origin: China Brand Name: Jiqian/OEM
Certification: CE/ISO9001 Model Number: mgtsv

Detail Information

Out Color: Blue\Customized Armoured: Steel Tape
Jacket: PVC\LSZH \LSOH \PE \HDPE Strength Member: Steel Wire
Temperature Range: -20°~60°C Place Of Origin: Guangdong, China
Fiber Type: G652D Fiber Type: Single Mode
Application: Telecommunication Keywords: Outdoor Cable
High Light:

72 Core Outdoor Fiber Optic Cable

,

G652D Outdoor Fiber Optic Cable

Product Description

MGTSV Stranded Loose Tube 72 Core Outdoor Single Mode fiber optic cable with wooden drum

Introduction:

MGTSV is suitable for coal, gold, iron ore and other mines. It has the flame retardant, rodent resistance property, so it is a good choice for mines. Especially for the accident-prone land mines, to ensure smooth communication, reduce losses when the accident happens.

The steel armor helps to protect the cable from rat bite, ensures bullet proof ability. Double jackets structure have nice properties of moisture resistance and crush resistance. Besides, the out sheath is flame retardant. Loose tube material itself has good hydrolysis resistance. Waterproof performance ensures the safety of underground mine.

Features:

1.Good flame retardant performance.

2.High strength loose tube that is hydrolysis resistant.

3.Double sheathes and single armor providing excellent crush resistance, water proof, and avoiding rat bite.

4.Loose tube wrapped by non-weaven tape has the water blocking ability.

5.Special tube filling compound ensure a critical protection of fiber.

6.Blue PVC jacket: Flame retardant, the blue color is easy to identify.

7.Crush resistance and flexibility.

Application:

1.Professional usage for the coal industry

2.Tunnel shaft

3.Mine

Cable
Fiber Count
Tubes+Fillers
Cable Diameter mm
Cable Weight Kg/km
Tensile Strength Long/Short Term N
Crush Resistance Long/Short Term N/100m
Bending Radius Static/Dynamic mm
MGTSV-2~6
2~60
5
12.2
156
1000/2000
500/1500
10D/20D
MGTSV-62~72
62~72
6
13.8
210
1750/3500
500/1500
10D/20D
MGTSV-74~96
74~96
8
15.1
242

1750/3500
500/1500
10D/20D
MGTSV-98~120
98~120
10
17.2
280

1750/3500
500/1500
10D/20D
MGTSV-122~144
122~144
12
19
320

1750/3500
500/1500
10D/20D
MGTSV-146~216
146~216
18
19
320

1750/3500
500/1500
10D/20D

G652D MGTSV 72 Core Outdoor Fiber Optic Cable With Wooden Drum 0

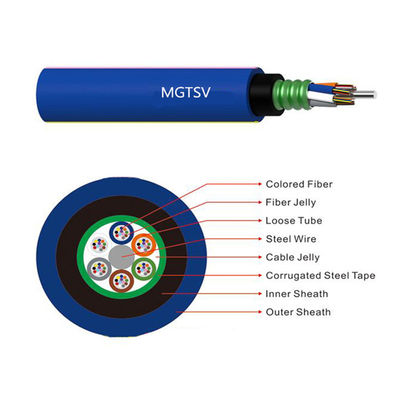

Structure

G652D MGTSV 72 Core Outdoor Fiber Optic Cable With Wooden Drum 1

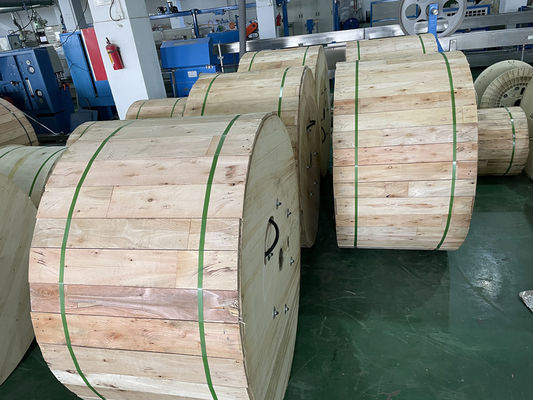

Packing

1/2/3/4km or customized length export wooden drum

G652D MGTSV 72 Core Outdoor Fiber Optic Cable With Wooden Drum 2

G652D MGTSV 72 Core Outdoor Fiber Optic Cable With Wooden Drum 3

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
