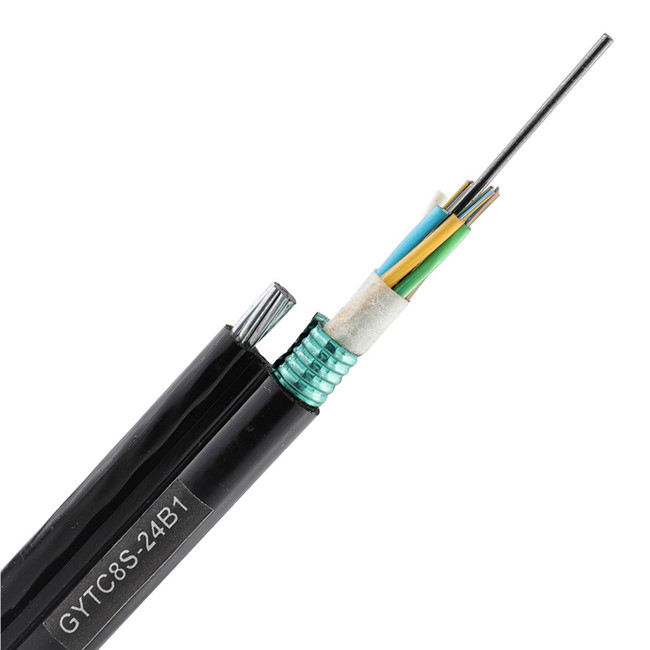

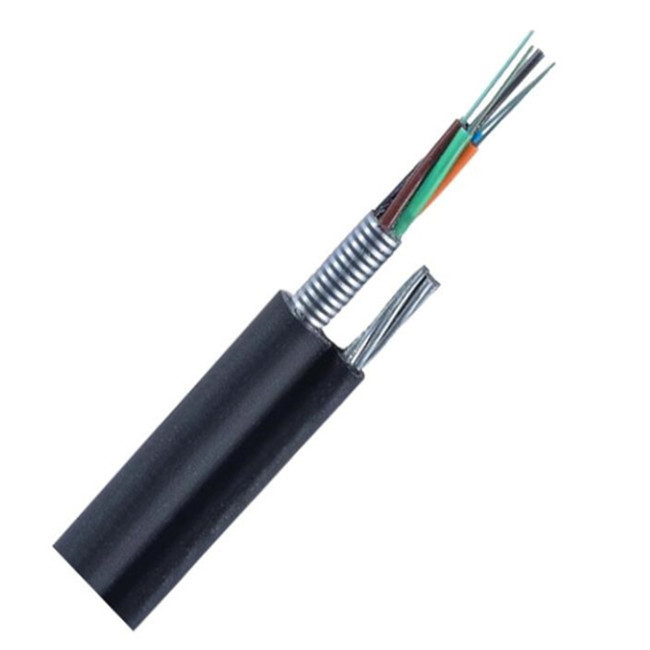

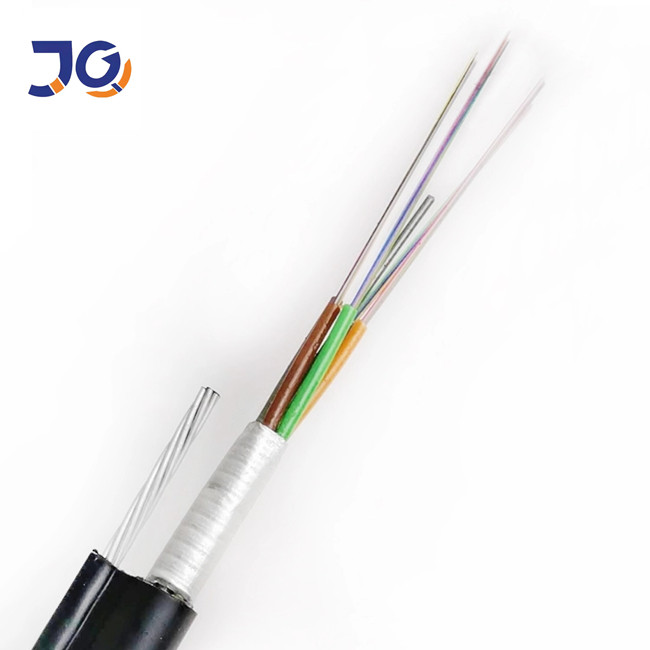

GYTC8S armored aerial self-supporting figure 8 single mode fiber optic cable
Dimensions of Cable Constructions
|
Fiber count
|
Structure
|
Fibers per tube
|
Loose tube diameter (mm)
|
CSM
diameter/pad diameter (mm)
|
Nominal Thickness of outer jacket
(mm)
|
Cable diameter/ Height (mm)
|
Cable weight (kg/km)
|
| 4 |
1+5 |
4 |
1.8±0.1 |
1.4/1.4 |
1.6 |
9.0*14.5 |
140 |
| 6 |
1+5 |
6 |
1.9±0.1 |
1.4/1.4 |
1.6 |
9.0*14.5 |
140 |
| 8 |
1+5 |
8 |
1.9±0.1 |
1.4/1.4 |
1.6 |
9.0*14.5 |
140 |
| 12 |
1+5 |
6 |
1.9±0.1 |
1.4/1.4 |
1.6 |
9.0*14.5 |
140 |
| 24 |
1+5 |
6 |
1.9±0.1 |
1.4/1.4 |
1.6 |
9.0*14.5 |
140 |
| 36 |
1+5 |
12 |
1.9±0.1 |
1.5/1.5 |
1.6 |
9.0*14.5 |
140 |
| 48 |
1+5 |
12 |
1.95±0.1 |
1.5/1.5 |
1.6 |
9.3*14.8 |
146 |
| 72 |
1+6 |
12 |
1.95±0.1 |
2.0/2.0 |
1.6 |
9.6*15.1 |
155 |
| 96 |
1+8 |
12 |
1.95±0.1 |
1.6/3.2 |
1.6 |
11.6*16.4 |
180 |
| 144 |
1+12 |
12 |
1.95±0.1 |
2.0/6.2 |
1.8 |
14.6*20 |
250 |
Characteristic
Steel wire strands have extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs
With good mechanical properties and temperature characteristics
Material of loose tube has good hydrolysis resistance and high strength
The loose tube is filled with special gel, which protect the optical fiber
Take the following measures to ensure the waterproof performance of the optical cable:
-Single metallic wire center reinforced core
-Filled with special Water-blocking material in loose tube
-Complete cable core filling
- Moisture-proof layer of plastic-coated steel
Descriptions

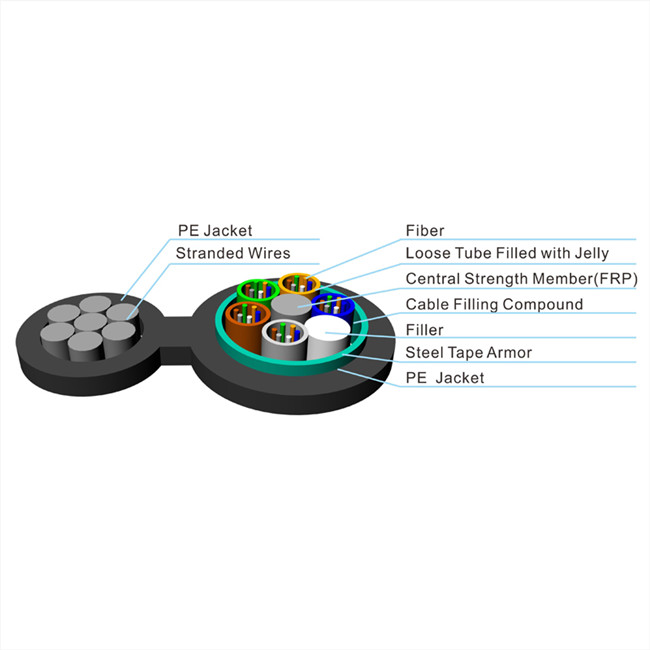

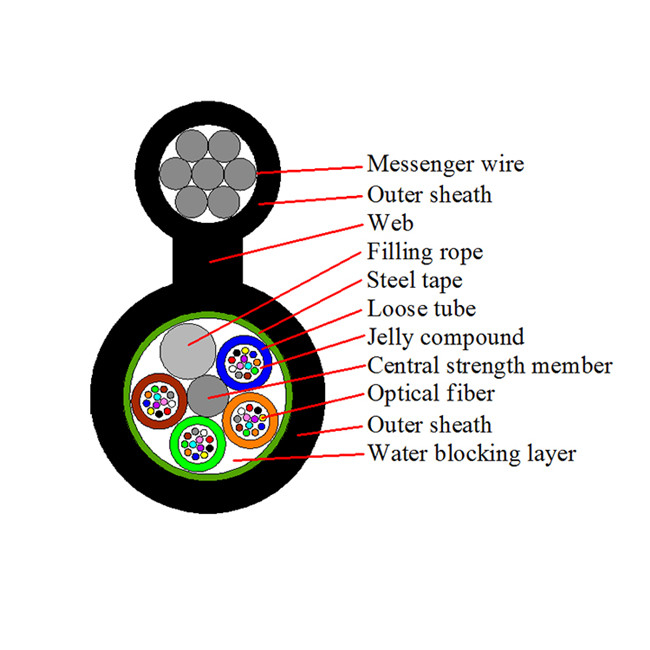

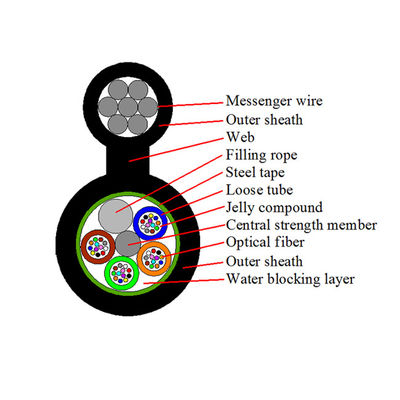

Loose tube style, figure-8 optical fiber cable, Jelly compound, optical fiber cable with metallic central strength member of steel wire.
Filling compound and water-proof tape amoured with corrugated steel tape incorporation steel messenger wire suitable for overhead installation as pole to pole or pole to premises.
High strenght, tracking-resistant sheath.
Feature
Low dispersion and attenuation.
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics.
The armoring of corrugated steel tape makes cable have nice moisture resistance and crush resistance performance.
Small cable diameter, light cable weight, self-supporting, easily to install.
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
