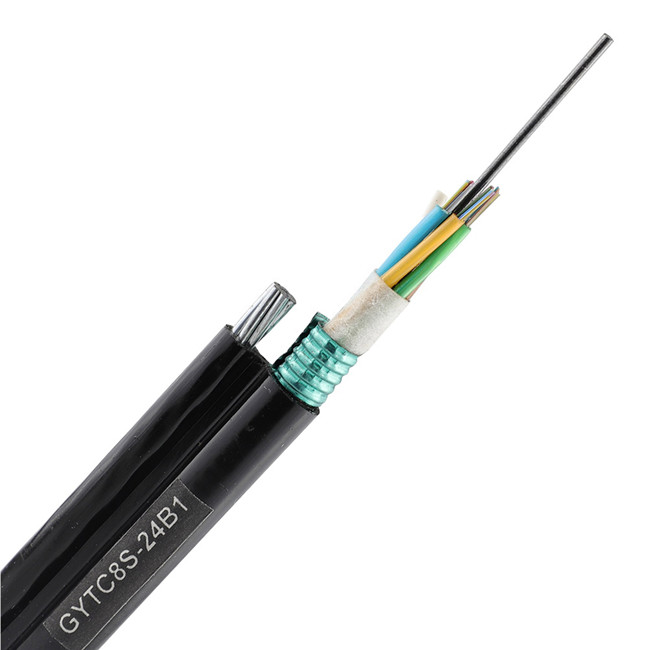

Gytc8a Gytc8s Outdoor Fiber Optic Cable Overhead Self Supporting Figure 8

Contact Now

Gytc8a Gytc8s Outdoor Fiber Optic Cable Overhead Self Supporting Figure 8

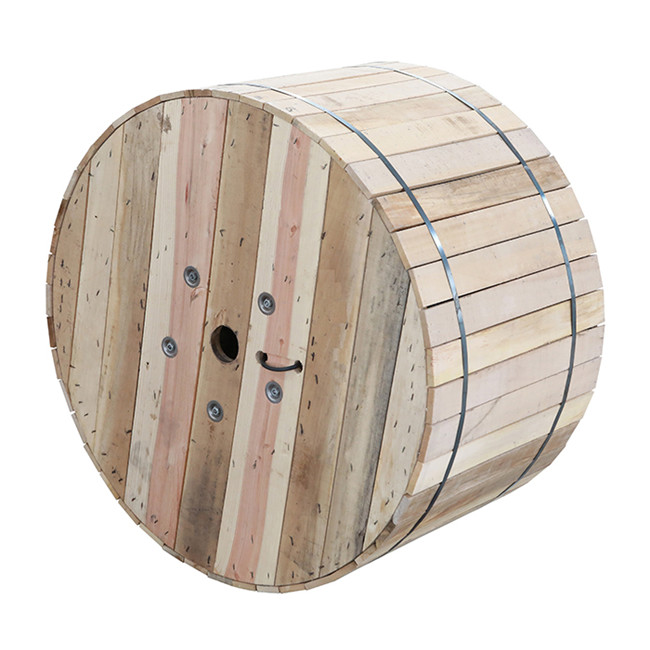

Minimum Order Quantity :	1kilometer	Packaging Details :	Wooden Drum
Delivery Time :	2-4 days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	80000kilometers per month

Place of Origin:	China	Brand Name:	JQ/OEM
Certification:	CE/ISO9001	Model Number:	GYTC8S

Detail Information
Type:	Fiber Optic Cable, Gytc8s	Color:	Black
Jacket:	PE	Cores:	2-144
Laying Method:	Overhead Aerial	Fiber Mode:	Single Mode & Multi Mode
Fiber Brand:	YOFC
Highlight:	Gytc8s Outdoor Fiber Optic Cable , Figure 8 Outdoor Fiber Optic Cable , Outdoor Fiber Optic Cable Gytc8a

Product Description

manufacturer outdoor overhead Self Supporting figure 8 fiber optic cable gytc8s

Technical Parameters


			Performance
			Long-term
			Short-term


			Max.Tension(N)
			2500
			4800


			Max.Crushing
			1000
			1000


			Resistance(N/100mm2)
			20D(Dynamic)
			10D(static)


			Storage and operating temperature
			-20℃ to +70℃


Characteristics
Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility
Application
Aerial self-supporting,Local network,Local network,Long distance network communication.
Descriptions
The metal strength member is made up of stranded steel wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.

Gytc8a Gytc8s Outdoor Fiber Optic Cable Overhead Self Supporting Figure 8 0

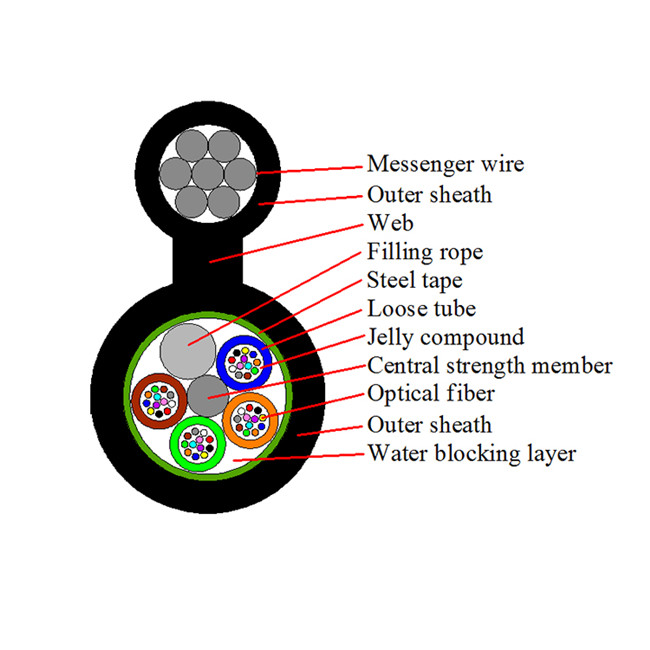

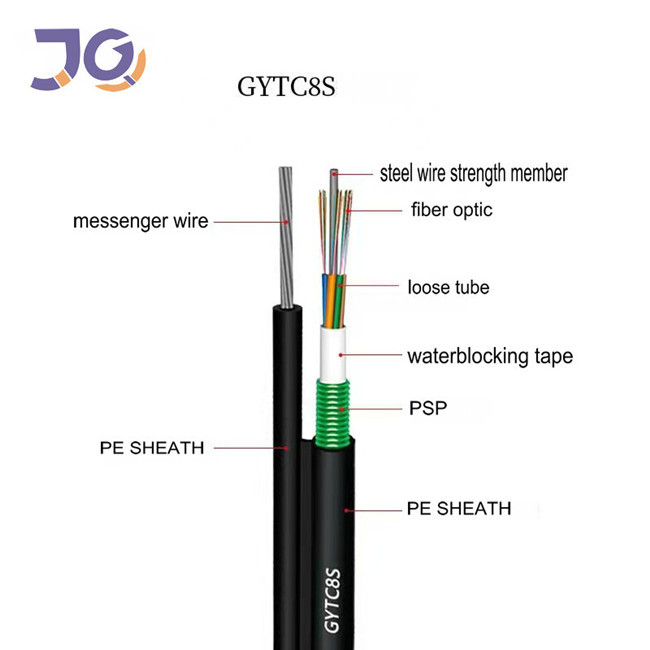

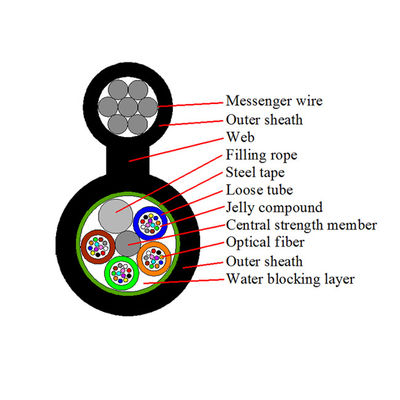

Cable Structure

Figure 8 non armoured fiber cable consists of :
1.Stranded loose tube
2.Steel wire strength member
3.Core filler compound
4.Fillers
5.Phosphating or Galvanized steel wire
6.PE sheath

Gytc8a Gytc8s Outdoor Fiber Optic Cable Overhead Self Supporting Figure 8 2

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
