8 12 144 Core Outdoor Fiber Optic Cable Steel Tape Armored G652d Gyts Communication

Name: 8 12 144 Core Outdoor Fiber Optic Cable Steel Tape Armored G652d Gyts Communication
Brand: Jiqian
SKU: GYTS
Rating: 4.9 (184 reviews)

Minimum Order Quantity :	1KM	Packaging Details :	wooden drum
Delivery Time :	3-5 days, it depends on your quantity	Payment Terms :	L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :	60000KM/month

Place of Origin:	Guangdong,China	Brand Name:	Jiqian
Certification:	CE/ISO9001	Model Number:	GYTS

Detail Information
Fiber Count:	2-288Core	Strength Member:	Steel
Life Time:	25 Years	Factory:	Yes
Amoured:	Steel Tape
High Light:	144 Core Outdoor Fiber Optic Cable , G652d Outdoor Fiber Optic Cable , 12 Core Outdoor Fiber Optic Cable

Product Description

Factory Price 8 12 24 48 96 144 Core Steel Tape Armored G652d Gyts Communication Cables
Product Description

			Product Name

			GYTS Outdoor Fiber Optic Cable

			Jacket Material

			PE

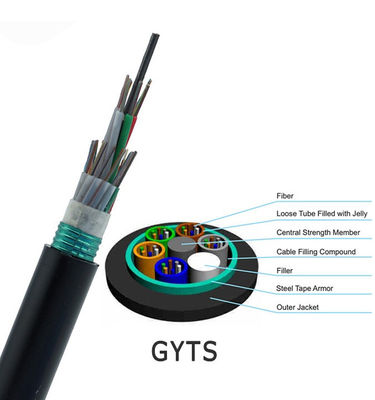

			Structure

			Stranded Loose Tube Steel Tape Cable

			Package

			2km/drum or customized

Mechanical and Environmental Characteristics

			Item
			Unit
			Specifications

			Tension(Long Term)
			N
			600

			Tension(Short Term)
			N
			1500

			Crush(Long Term)
			N/10cm
			300

			Crush(Short Term)
			N/10cm
			1000

			Min. Bend Radius(Dynamic)
			mm
			20D

			Min.Bend Radius(Static)
			mm
			10D

			Installation Temperature
			℃
			-40～+60

			Operating Temperature
			℃
			-40～+70

			Storage Temperature
			℃
			-40～+70

			Repeating bending
			Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.

			Torsion
			Load:250N; number of cycles:10; twist angle:±90° No obvious addition attenuation, no fiber break and no cable damage.

			Impact
			Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage.


Packaging Details

1.Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer's requirements are also welcomed;

2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens.

Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
We still have more. Please feel free to contact me. Whatsapp:+8618122383351
