Jiqian Overhead Outdoor 48 Core Fig 8 Fiber Optical Cable Self Supporting Armored Figure 8 Fiber Optic Cable GYTC8S
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | Plywood drum |
|---|---|---|---|
| Delivery Time : | Normally 3-5 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
| Supply Ability : | 6000km per month |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE FCC | Model Number: | ADSS-48B1 |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou China | Brand Name: | Jiqian |
|---|---|---|---|
| Number Of Conductors: | ≥ 10 | Strength Member: | FRP |
| Storage/operating Temperature:: | -40 To +70 °C | Application: | Overhead |
| OEM: | Yes | Manufacturer: | Yes |
| Structure: | Stranded Loose Tube | Package: | Plywood Drum |
| High Light: | Monomode Adss Outdoor Fiber Optic Cable,24 Hilos Outdoor Fiber Optic Cable |
||
Product Description

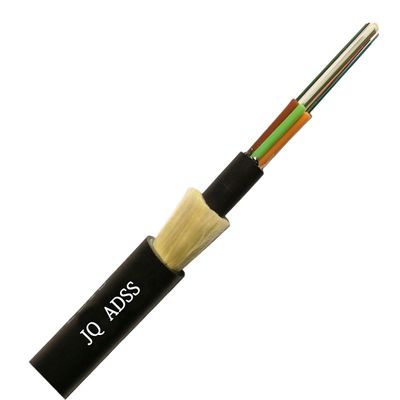

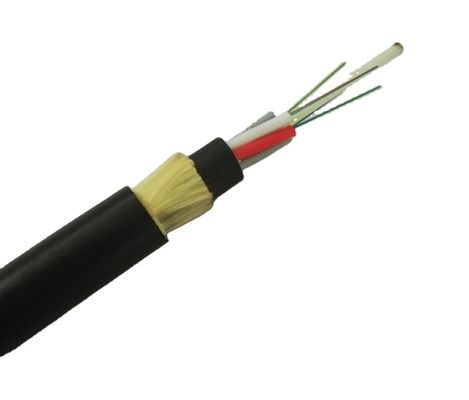

Monomode Fibra Optica Adss Fibra Optica Span 200 24 Hilos 48 Hilos 96 Hilos 144 Hilos
Cable Performance
|
Item |
Contents |
Value | |||
| 6/12/24 | 48 | 72 | 96 | ||

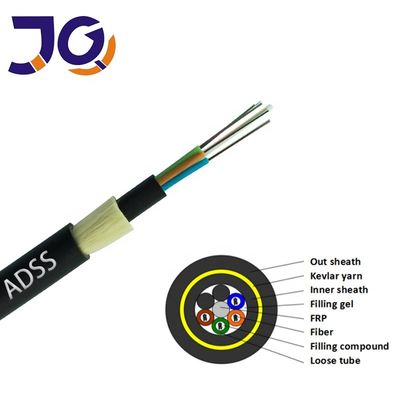

| Structure | Type | 1+6 | 1+6 | 1+8 | 1+12 |
|
Loose tube |
Max Fiber counts/tube | 6 | 12 | 12 | 12 |
| Outer diameter (mm) | 1.9±0.1 | 2.2±0.1 | 2.2±0.1 | 2.2±0.1 | |
|
Central strength member |
Material | FRP | |||
| Diameter (mm) | 1.4 | 1.6 | 2.0 | 2.2 | |
| PE layer diameter (mm) | -- | -- | 3.5 | ||
| Peripheral strength member | Material | FRP | |||
|
Sheath |
Material | HDPE | |||
| Color | Black | ||||
| Thickness (mm) | Nominal: 1.6 | ||||
| Cable diameter(mm) Approx. | 9.8±0.2 | 10.0±0.2 | 10.5±0.3 | 11.8±0.3 | |
| Cable weight(kg/km) Approx. | 85 | 89 | 99 | 124 | |
Fiber parameter
| Parameter | Specification |
| MFD (1310nm) | 8.7~9.5 um |
| Cladding diameter | 125±1.0um |
| Fiber diameter | 235~255um, with UV coating, and colored to : 250±15um |
| Core/cladding concentricity error | ≤ 0.6um |
| Coating/cladding concentricity error | ≤ 12.0um |
| Cladding non circularity | ≤ 1.0% |
| Cut off wavelength | λcc ≤1260nm |
|
Attenuation coefficient |
1310nm: 0.35dB/km max after cabling 1550nm: 0.21dB/km max after cabling |
|
Bending-loss performance of optical fiber @1310nm&1550nm |
≤0.05dB (100 turns around a mandrel of 50mm diameter) |
| Polarization mode dispersion maximum individual fibre |
≤0.2ps/√km |
| Polarization mode dispersion link value | ≤0.1ps/√km |
| Zero-dispersion wavelength | 1300~1324nm |
| Zero-dispersion slope | ≤0.092ps/nm2·km |
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for the freight
3.Do you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001-2000
6.What is your delivery time?
Usually within 3-5 working days
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements
