GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member

Contact Now

GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member

Minimum Order Quantity :	1000m	Packaging Details :	wooden drum
Delivery Time :	2-4day	Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	100km per 2 day

Place of Origin:	CHINA	Brand Name:	jiqian
Certification:	ISO	Model Number:	GYFTY

Detail Information
Fiber Type:	G652D	Oem:	Available
Application:	Aerial/duct	Number Of Conductors:	72/48core /96core
Structure:	Stranded Loose Tube	Operating Temperature:	-40 ~ +60 C
Central Strength Member:	FRP
Highlight:	Aerial 48 Core Fiber Optic Cable , GYFTY Fiber Optic Cable , FRP Strength Fiber Optic Cable

Product Description

GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member

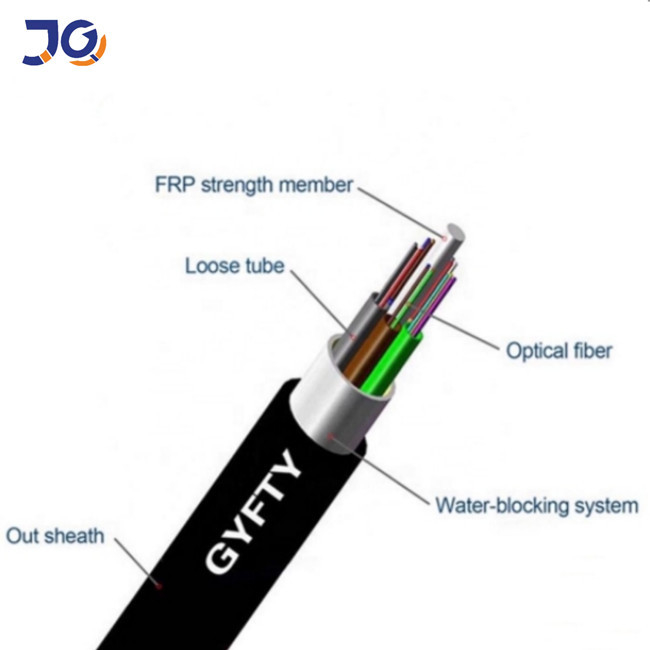

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath

.

Cable structure and parameter:

Fiber
count

Max. fiber count

per tube

Total unit

count

(LT + FR)

Cable sheath thickness

(nominal*)

Overall diameter

(nominal**)

Weight
(approx.)

kg/km

288

12LT

1.8

18.9

300

* The nominal sheath thickness may vary by 0.2mm.

** The nominal outer diameter and height may vary by 0.2mm.

Fiber Properties:

The properties of single mode optical fiber (ITU-T Rec. G.652D)

Item	Specification
Fiber type	Single mode
Fiber material	Doped silica
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm	≤ 0.36 dB/km ≤0.32 dB/km ≤0.22 dB/km ≤0.30 dB/km
Point discontinuity	≤ 0.05 dB
Cable cut-off wavelength	≤ 1260 nm
Zero-dispersion wavelength	1300 ~ 1324 nm
Zero-dispersion slope	≤0.093 ps/(nm².km)
Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm	≤3.5 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18 ps/(nm. km) ≤22 ps/(nm. km)
PMD	≤0.2 ps/km½
Mode field diameter @ 1310 nm	9.2±0.4 um
Core / Clad concentricity error	≤0.5 um
Cladding diameter	125.0 ± 0.7 um
Cladding non-circularity	≤1.0%
Primary coating diameter	245 ± 10 um
Proof test level	100 kpsi (=0.69 Gpa), 1%
Temperature dependence 0℃~ +70℃ @ 1310 & 1550nm	≤ 0.1 dB/km

Cable bending radius: 10 x cable diameter (during operation)

20 x cable diameter (during installation)

Temperature range:

Operating temperature range	-40℃ to +60℃
Storage / Transport temperature range	-50℃ to +70℃
Installation temperature range	-30℃ to +50℃

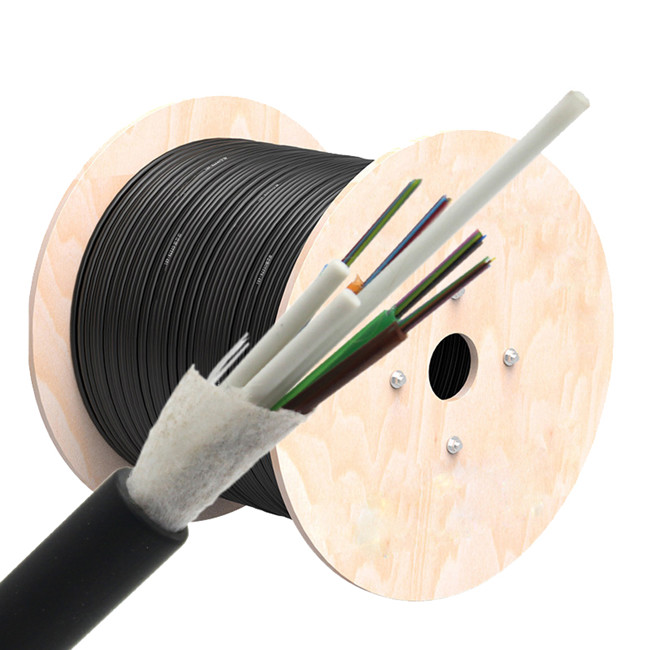

Package Details:

Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact. GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member 1
