GYFTY Non Metallic Strength Member Outdoor Fiber Optic Cable Non Armored

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: GYFTY

Detail Information

Fiber Type: G652D Oem: Available
Application: Aerial/duct Number Of Conductors: 72/48core
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
Central Strength Member: FRP
High Light:

Outdoor Fiber Optic Cable Non Armored

,

GYFTY Outdoor Fiber Optic Cable

Product Description

GYFTY Non Metallic Strength Member Non Armored Cable Outdoor Fiber Optic Cables

Product description/ PRODUCT:

The fibers, 200/250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

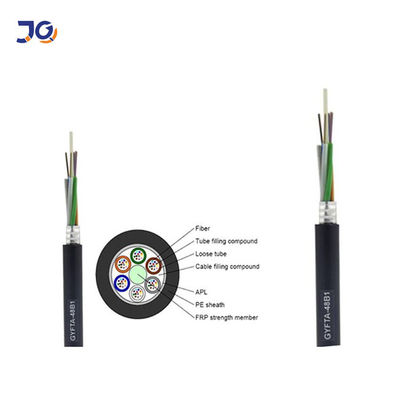

GYFTY Non Metallic Strength Member Outdoor Fiber Optic Cable Non Armored 0

Product Features/ PRODUCT

·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Good crush ability and soft
·Adopt the measures below to assure the water-proof function:
·single non-metallic central strength member
·Special tube filling compound ensure a critical protection of fiber
·fully fiber filled



Product Standard / PRODUCT

·GYFTY cable complies with Standard YD/T 901-2009 as well as IEC 60794-1.

Optical Characteristics / PRODUCT

  G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20℃)
@850nm     ≤3.0dB/km ≤3.0dB/km
@1300nm     ≤1.0dB/km ≤1.0dB/km
@1310nm ≤0.36dB/km ≤0.36dB/km
@1550nm ≤0.22dB/km ≤0.23dB/km
Bandwidth (Class A) @850     ≥500MHZ·km ≥200MHZ·km
@1300     ≥1000MHZ·km ≥600MHZ·km
Numerical Aperture       0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc   ≤1260nm ≤1480nm

Technical Parameters / PRODUCT

Cable Type Fiber Count Loose tube count Filler count Cable Diameter
Mm
Cable Weight
Kg/km
Tensile Strength
Long/short term
N
Crush Resistance
Long/short term N/100mm
Bending
Radius
Static/dynamic mm
GYFTY-2~6 2~6 1 4 9.0 88 800/1500 500/1000 15D/30D
GYFTY-8~12 8~12 2 3 9.0 88 800/1500 500/1000 15D/30D
GYFTY-14~18 14~18 3 2 9.0 88 800/1500 500/1000 15D/30D
GYFTY-20~24 20~24 4 1 9.0 88 800/1500 500/1000 15D/30D
GYFTY-26~30 26~30 5 0 9.0 88 800/1500 500/1000 15D/30D
GYFTY-32~36 32~36 5 0 9.0 88 800/1500 500/1000 15D/30D
GYFTY-38~48 38~48 5 0 9.0 88 800/1500 500/1000 15D/30D
GYFTY-50~60 50~60 5 0 9.0 88 800/1500 500/1000 15D/30D
GYFTY-62~72 62~72 6 0 9.5 100 1000/2000 500/1000 15D/30D
GYFTY-74~84 74~84 7 1 10.5 120 1000/2000 500/1000 15D/30D
GYFTY-86~96 86~96 8 0 10.5 120 1500/2500 500/1000 15D/30D
GYFTY-98~108 98~108 9 1 11.5 150 1500/2500 500/1000 15D/30D
GYFTY-110~120 110~120 10 0 12.0 150 1500/2500 500/1000 15D/30D
GYFTY-122~144 122~144 12 0 13.0 150 1500/2500 500/1000 15D/30D
GYFTY-146~216 146~216 18 0 13.0 150 1000/2000 500/1000 15D/30D

storage/Operating Temperature : -40℃ to + 70℃Hanxin Gyfty Stranded Loose Tube Non Metallic Strength Member Non Armored Cable Outdoor Fiber Optic Cables





FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

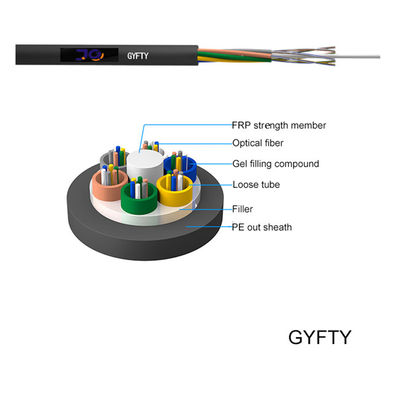

Yes, we supply OEM&ODM service, pls feel free to contact.GYFTY Non Metallic Strength Member Outdoor Fiber Optic Cable Non Armored 2
