OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
|
Detail Information |
|||
| Place Of Origin: | Guangzhou,China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO9001/ROHS/CE/FCC | Model Number: | GYTS/GYTA |
| Number Of Conductors: | ≥ 10 | Fiber Count: | 4-288 Cores |
| Installation: | Conduit/Underground | Strength Member: Central: | Steel Wire Or FIberglass Reinforced Plastic (FRP) |
| Manufacturer: | Yes | ||

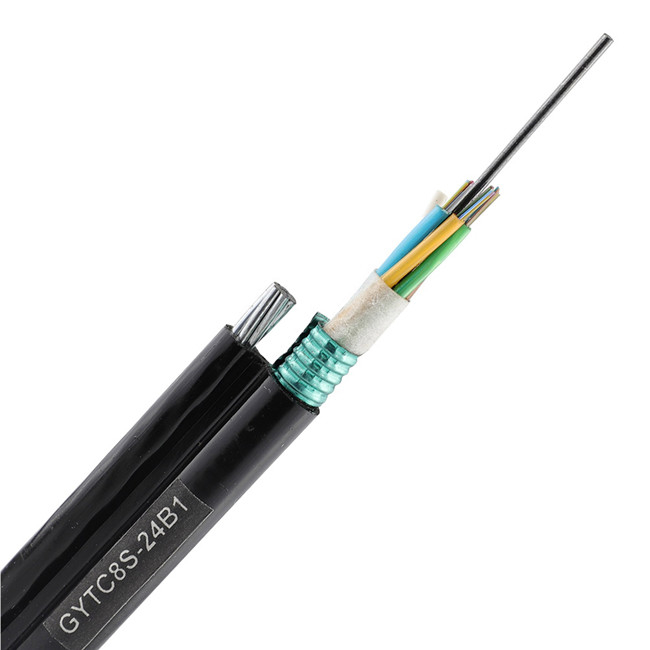

| High Light: | Gytc8s Fiber Optic Cable,FCC Armoured Fiber Cable,Gytc8s Armoured Fiber Cable |
||
Product Description

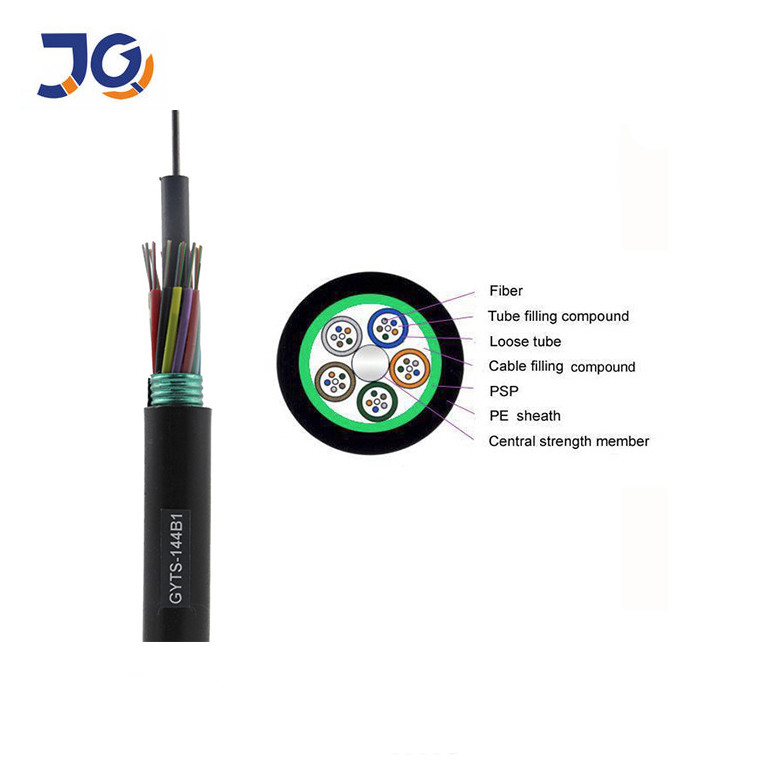

Outdoor 12 24 48 96 144 core G652D singlemode armoured fibre cable duct underground GYTS GYTA GYTA53 fiber optic cable
Features:
Choice of Fibre Type
Colour code of Fiber
High water resistance
High crush resistance
Choice Sheath Material
Low attenuation and dispersion
Good flexibility and bending performance
Appicable fields:
Duct/Underground
Fiber parameter
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
|
Mode field diameter |
1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | £1.0 | |
| Core/cladding concentricity error | mm | £0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | £6.0 | |
| Coating/cladding concentricity error | mm | £12.0 | |
| Cable cut-off wavelength | nm | £1260 | |
|
Attenuation Coefficient |
1310nm | dB/km | £0.36 |
| 1550nm | dB/km | £0.22 | |
| Proof stress level | kpsi | ≥100 | |
Cable Performance
| Item | Parameters | |
| Fiber Count | 24 | |
|
Colored coated fiber |
Dimension | 250µm±15µm |
|
Color |
Blue,Orange,Green,Brown,Gray,White |
|
|
Loose tube |
Dimension | 2.2mm±0.1mm |
| Material | PBT | |
| Color | Blue,Orange,Green,Brown | |
|
Filler |
Material | PE |
| Color | Black | |
|
Central Strength Member |
Dimension | 1.6mm±0.05mm |
| Material | Phosphating steel wire | |
| Armoured | Material | Plastic coated steel strip |
|
Outer jacket |
Material | PE |
| Color | Black | |
Packing:
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
