GYXTW Outdoor Aerial Fiber Optic Cable Duct Overhead 2 24 Core high Quality
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
Minimum Order Quantity : | 1km | Packaging Details : | Plywood drum |
---|---|---|---|
Delivery Time : | 5-7 days,it depends on order quantity | Payment Terms : | L/C, T/T,Alipay, Western Union |
Supply Ability : | 6000km |
Place of Origin: | China | Brand Name: | Jiqian |
---|---|---|---|
Certification: | ISO 9001/CE/FCC/ROHS | Model Number: | GYXTW |
Detail Information |
|||
Cable Brand: | Jiqian | Place Of Origin: | Guangzhou,China |
---|---|---|---|
Number Of Conductors:: | 12 | Application: | Duct/aerial |
Armoured: | Yes | Fiber Type: | Fiberhome/YOFC |
Suitable Temperature: | -40+60 | Certification: | ISO 9001/CE/FCC/ROHS |
Manufacturer: | Yes | ||
Highlight: | 1310nm Outdoor Fiber Optic Cable,Outdoor Fiber Optic Cable 6 Cores |
Product Description
Jiqian Manufacturer Fiber Optic Cable 4 6 8 12 Cores GYXTW
Fiber Optic Cable G652D
Item | Unit | Specification | |
Fiber Type | G.652D | ||
Mode field diameter | 1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.8 | |
Cladding diameter | μm | 125.0±1 | |
Cladding non-circularity | % | ≤1.0 | |
Core/cladding concentricity error | μm | ≤0.5 | |
Coating diameter | μm | 245±5 | |
Coating non-Circularity | % | ≤6.0 | |
Coating/cladding concentricity error | μm | ≤12.0 | |
Cable cut-off wavelength | nm | ≤1260 | |
Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
1550nm | dB/ks | ≤0.22 | |
Proof stress level | kpsi | ≥100 |

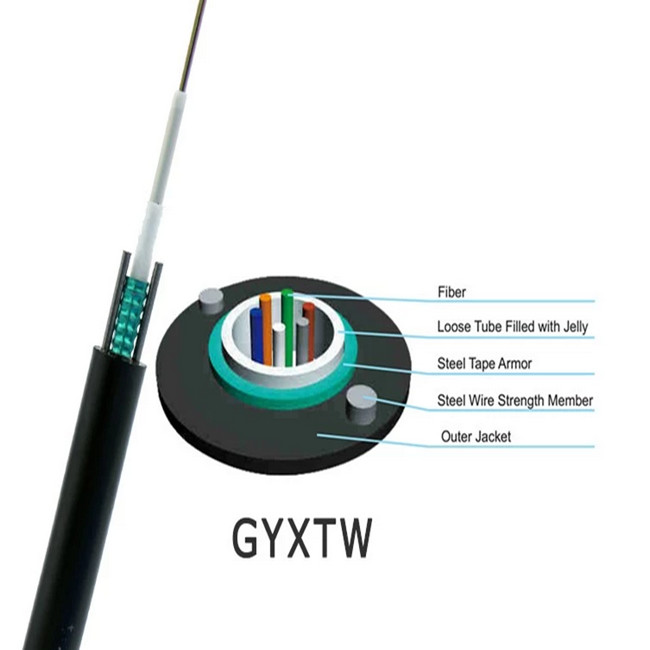

Cable performance:
Item | Parameter | |
Fiber Count | 12 | |
Colored coated fiber | Dimension | 250µm±15µm |
Color | Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua | |
Loose tube | Dimension | 2.2mm±0.1mm |
Material | PBT | |
Color | nature | |
Filler | Material | none |
Color | none | |

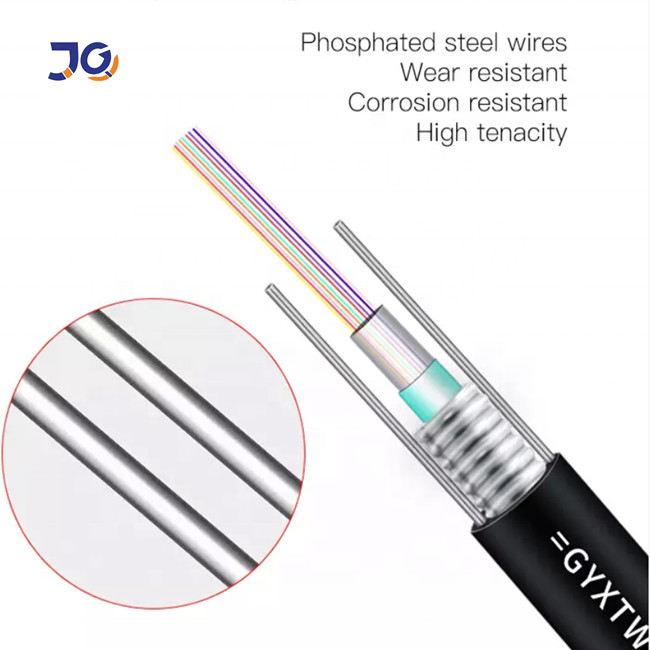

Strength Member | Dimension | 0.7mm±0.05mm |
Material | Phosphating steel wire | |
Armoured | Material | Plastic coated steel strip |
Outer jacket | Material | PE |
Color | Black |
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
3.Q:Which brand of fiber do you use?
A:Corning,YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days,It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
