no metal singlejacket double jacket multi cores ADSS Fiber Optic Cable with HDPE

Minimum Order Quantity : 20km Packaging Details : Wooden drum or Customized
Delivery Time : about 12 working days Payment Terms : T/T, Western Union,Alipay
Supply Ability : 2000KM per day
Place of Origin: guangdong China Brand Name: JQ /OEM
Certification: ISO9001 CE ROHS FCC Model Number: ADSS-12/24/48 hilos

Detail Information

Application: Overhead Fiber Counts: 2-288 Core
Span: 300m 500m Or Customerized Fiber Per Tube: 12/24F/48F/96F
OEM: Acceptable Strength Number: FRP
Structure: Stranded Loose Tube With Filler Jacket Color: Black
Operating Temperature: -40℃ To +80℃ Fiber Type: G652D, OM3, OM4/OM5
Jacket: HDPE

Product Description

large span 300m double jacket multi cores ADSS Fiber Optic Cable with HDPE



ADSS destricption



ADSS stands for All Die-Electric Self Supporting cable. It is a kind of fiber optic cable that can support itself between pole to pole structures without the use of

conductive metal parts. With a maximum of 288 fibers, ADSS cables can support both single mode and multimode fibers. From pole-to-building

to town-to-town deployments, ADSS fiber optic cable is designed for overhead and outside plant aerial and campus network loop topologies.

A full transmission circuit architecture with high-reliability performance is provided by the cabling system, which includes cables, suspension, dead-end, and termination enclosures



Features



1.  Low attenuation, low dispersion Proper design and precise excess length control make the cable have outstandingmechanical and environmental performance.
2.  Non-metallic construction is convinence for cable laying without cutoff the power systems .
3.  High strength aramid yarn as strength member ensures high tensile resistance, small diameter and light weight of the cable, fitting for
     different weather conditions and different installation spans.
4.  Special AT(anti-tracking) outer sheath (optional) offers good electro-erosion resisting performance.



Structure and Technical Specifications





fiber count structure fiber per tube

losse tube diameter

(MM)

FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)
Ref. Weight
(kg/km)
PE Jacket AT Jacket
4 1+6 4 1.9 2.0/2.0 1.8±0.1 12.0 125 135
6 1+6 6 1.9 2.0/2.0 1.8±0.1 12.0 125 135
8 1+6 4 1.9 2.0/2.0 1.8±0.1 12.0 125 135
12 1+6 6 1.9 2.0/2.0 1.8±0.1 12.0 125 135
24 1+6 6 2.0 2.0/2.0 1.8±0.1 12.0 128 138
48 1+6 12 2.0 2.0/2.0 1.8±0.1 12.5 130 140
72 1+6 12 2.2 2.0/2.0 1.8±0.1 13.2 145 155
96 1+8 12 2.2 2.0/3.4 1.8±0.1 14.5 185 195
144 1+12 12 2.2 3.0/7.2 1.8±0.1 16.5 212 228



Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.





Fiber type

Attenuation

(+20℃)

Bandwidth

Optical cable cut-off wavelength

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm

G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- ≤1260nm
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km ---
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km ---




Details picture shows

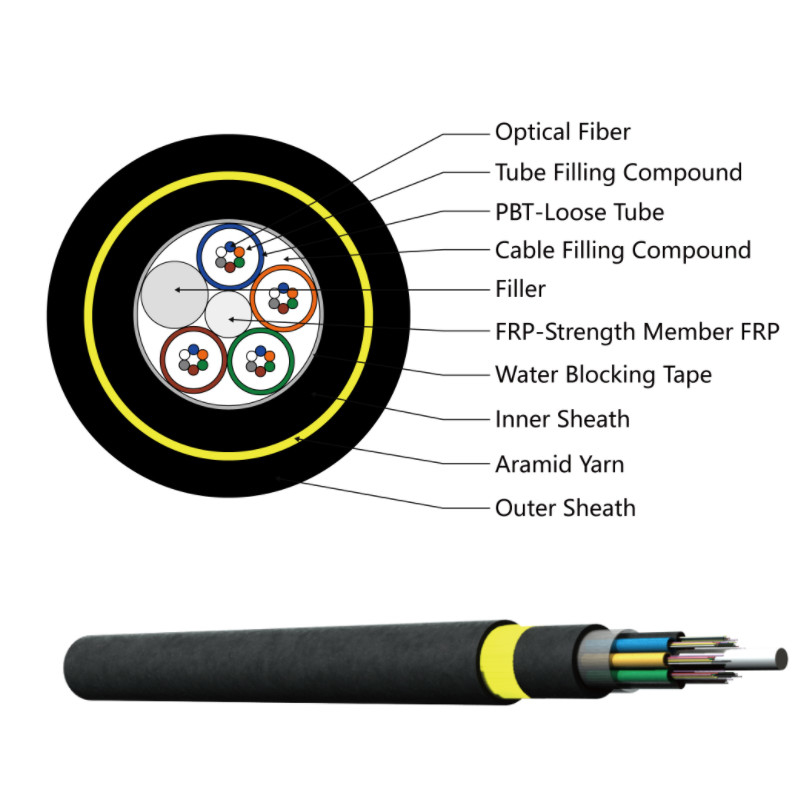

no metal singlejacket double jacket multi cores  ADSS Fiber Optic Cable with HDPE 0



                                                  double  jackets  ADSS fiber cable

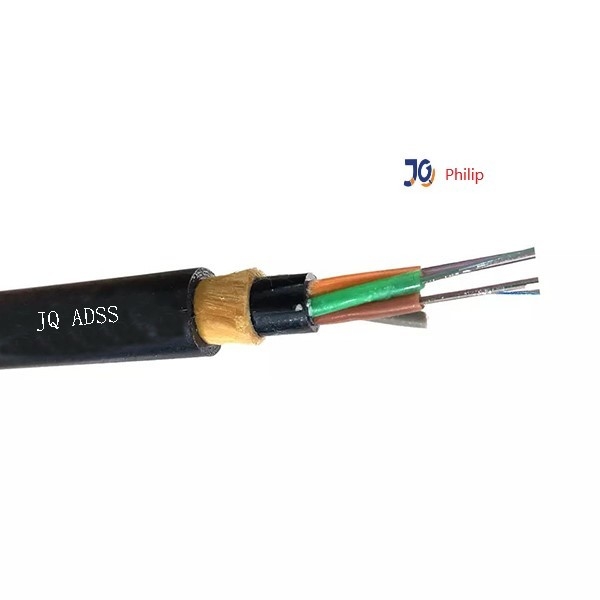

no metal singlejacket double jacket multi cores  ADSS Fiber Optic Cable with HDPE 1

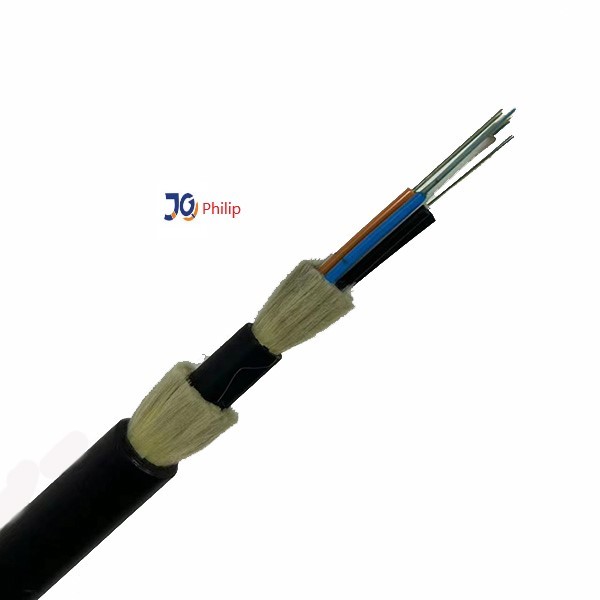

no metal singlejacket double jacket multi cores  ADSS Fiber Optic Cable with HDPE 2

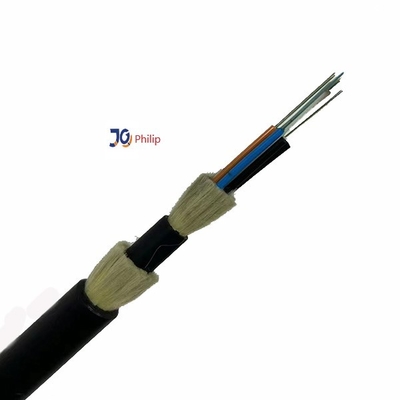

no metal singlejacket double jacket multi cores  ADSS Fiber Optic Cable with HDPE 3



                                          double jacket ADSS fiber optic cable

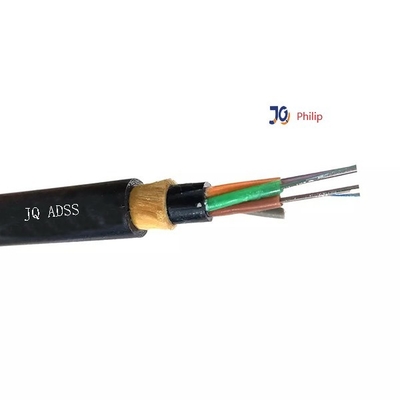

no metal singlejacket double jacket multi cores  ADSS Fiber Optic Cable with HDPE 4

Application of Fiber Optic Cable



       Telecommunication networks

  • Data centers
  • 40G to 10G transition
  • CATV;
  • Active device termination;
  • Metro;
  • Local Area Networks;
  • Data processing networks
  • Test equipment;
  • Premise installation;
  • Wide Area Networks





Packing:

no metal singlejacket double jacket multi cores  ADSS Fiber Optic Cable with HDPE 5





   FAQ



1. Are you factory direct?

as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord.

Our products are mainly exported to Europe, South America, and some other countries and areas.



2. What is your main products?

Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS

Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord



3. Product quality guarantee period?

20 years Guarantee for fiber optic cable







4. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
