OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : colleen
Phone Number : 8618122384446
whatsapp : +8618122384446
| Minimum Order Quantity : | 20km | Packaging Details : | Wooden drum or Customized |
|---|---|---|---|
| Delivery Time : | about 10 working days | Payment Terms : | T/T, Western Union,Alipay |
| Supply Ability : | 8000KM per week |
| Place of Origin: | Guangzhou China | Brand Name: | JQ /OEM |
|---|---|---|---|
| Certification: | ISO9001 CE ROHS FCC | Model Number: | ADSS-12/24/48 /96 hilos |
|
Detail Information |
|||
| Application: | Telecommunication, Aerial, Telecom, Network | Fiber Counts: | 2-144 Hilos |
|---|---|---|---|
| Span: | 80m 100m 150m 200m 300 Or Customerized | Fiber Per Tube: | 4/6/8/12/24F |
| OEM: | YES | Strength Number: | Fiberglass Rainforced Plastics |
| Structure: | Stranded Loose Tube With Filler (if Needed) | Jacket Color: | Black, Blue, Grey, Customized, Green |
| Operating Temperature: | -40℃ To +80℃ | Fiber Type: | G652D, OM3, G657A2, 50/125 |
| High Light: | Double Jacket ADSS Fiber Optic Cable,Single Jacket ADSS Fiber Optic Cable |
||
Product Description
No metal singlejacket double jacket multi cores ADSS Fiber Optic Cable with HDPE
ADSS destricption
ADSS stands for All Die-Electric Self Supporting cable. It is a kind of fiber optic cable that can support itself between structures without the use of conductive metal parts.
With a maximum of 144 fibers, ADSS cables can support both single mode and multimode fibers. From pole-to-building to town-to-town deployments,
ADSS fiber optic cable is designed for duct applications in local and outside plant aerial and campus network loop topologies. A full transmission circuit architecture
with high-reliability performance is provided by the cabling system, which includes cables, suspension, dead-end, and termination enclosures
Features
Structure and Technical Specifications
1. ADSS single jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 83 | 93 |
| 6 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 83 | 93 |
| 8 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 83 | 93 |
| 12 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 83 | 93 |
| 24 | 1+6 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 9.8 | 86 | 96 |
| 48 | 1+6 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 10.0 | 89 | 99 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 10.5 | 99 | 109 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 12.0 | 124 | 136 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 15.2 | 176 | 189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 6 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 8 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 12 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 24 | 1+6 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.0 | 128 | 138 |
| 48 | 1+6 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.5 | 130 | 140 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 13.2 | 145 | 155 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 14.5 | 185 | 195 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 16.5 | 212 | 228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type |
Attenuation (+20℃) |
Bandwidth |
Optical cable cut-off wavelength |
||||
|---|---|---|---|---|---|---|---|
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | --- |

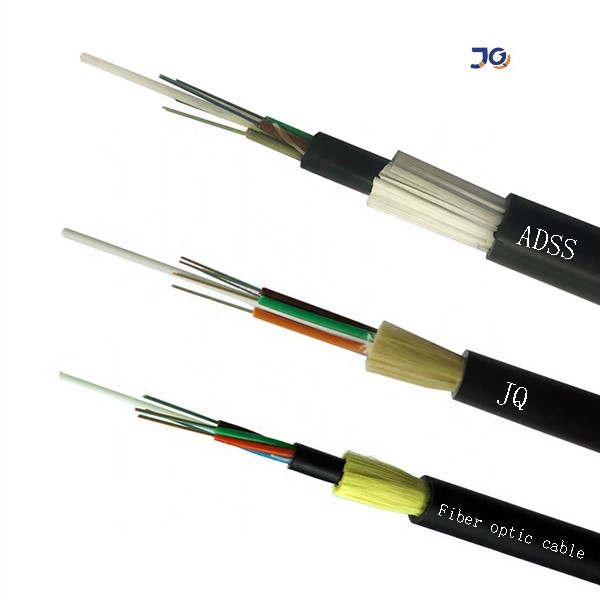

Details picture shows

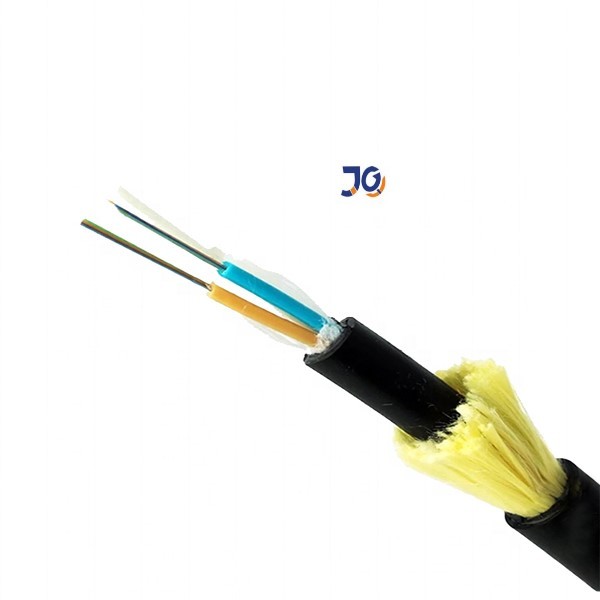

single jacket ADSS fiber cable

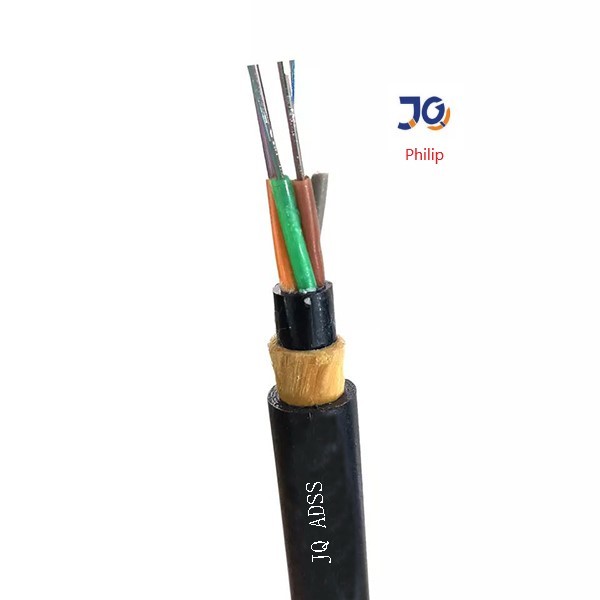

double jacket ADSS fiber optic cable
Application of Fiber Optic Cable
1. LAN, WAN and Metro Networks
2. FTTH project & FTTX Deployments
3. CATV System
4. GPON, EPON
5. Fiber Optic Test Equipment
6. Data-base Transmit Broadband Net
Packing:
FAQ
1. Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2. About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3. Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4. What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5. Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
