OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 10km | Packaging Details : | Wooden drum or Customized |
|---|---|---|---|
| Delivery Time : | about 12 working days | Payment Terms : | T/T, Western Union,Alipay |
| Supply Ability : | 800KM per day |
| Place of Origin: | Guangzhou China | Brand Name: | JQ or customerized |
|---|---|---|---|
| Certification: | ISO9001 CE FCC ROHS | Model Number: | ADSS-12/24/48 /96 hilos |
|
Detail Information |
|||
| Application: | Outdoor Overhead | Fiber Counts: | 4-144 Cores |
|---|---|---|---|
| Span: | 80m 100m 200m Or Customerized | Fiber Per Tube: | 4/6/8/12/24F |
| OEM: | Acceptable | Strength Number: | Fiber Rainforce Plastics (FRP) |
| Structure: | Stranded Loose Tube With Filler (if Needed) | Jacket Color: | Black, Blue, Grey, Customized, Green |
| Operating Temperature: | -40℃ To +80℃ | Fiber Type: | G652D, OM3, G657A, 50/125 |
| High Light: | Multi Cores ADSS Fiber Optic Cable,Double Jacket ADSS Fiber Optic Cable |
||
Product Description

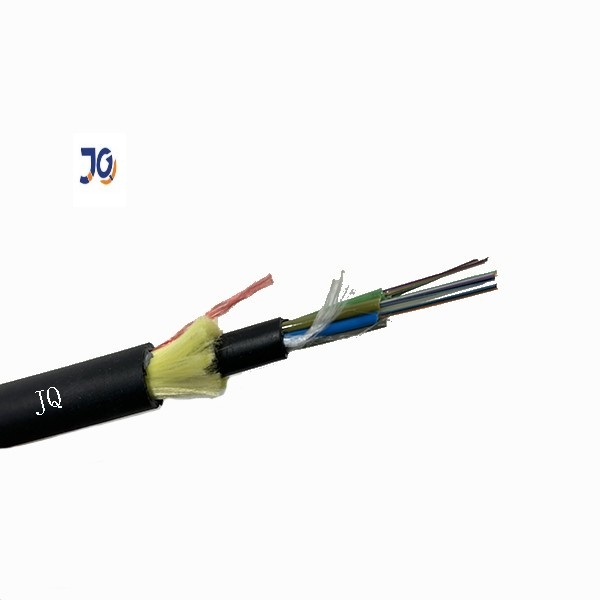

Aramid yarn Single jacket Double Jacket Multi Cores ADSS Fiber Optic Cable With HDPE
ADSS destricption
ADSS stands for All Die-Electric Self Supporting cable. It is a kind of fiber optic cable that can support itself between structures without the use of conductive metal parts.
With a maximum of 144 fibers, ADSS cables can support both single mode and multimode fibers. From pole-to-building to town-to-town deployments,
ADSS fiber optic cable is designed for duct applications in local and outside plant aerial and campus network loop topologies. A full transmission circuit architecture
with high-reliability performance is provided by the cabling system, which includes cables, suspension, dead-end, and termination enclosures
Characteristics
· Can be installed without shutting off the power
· Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
· Light weight and small diameter reducing the load caused by ice and wind and the load on towers
and backprops
· Large span lengths and the largest span is over 1000m
· Good performance of tensile strength and temperature
· The design life span is 30 years
Application of Fiber Optic Cable
1. LAN, WAN and Metro Networks
2. FTTH project & FTTX Deployments
3. CATV System
4. GPON, EPON
5. Fiber Optic Test Equipment
6. Data-base Transmit Broadband Net

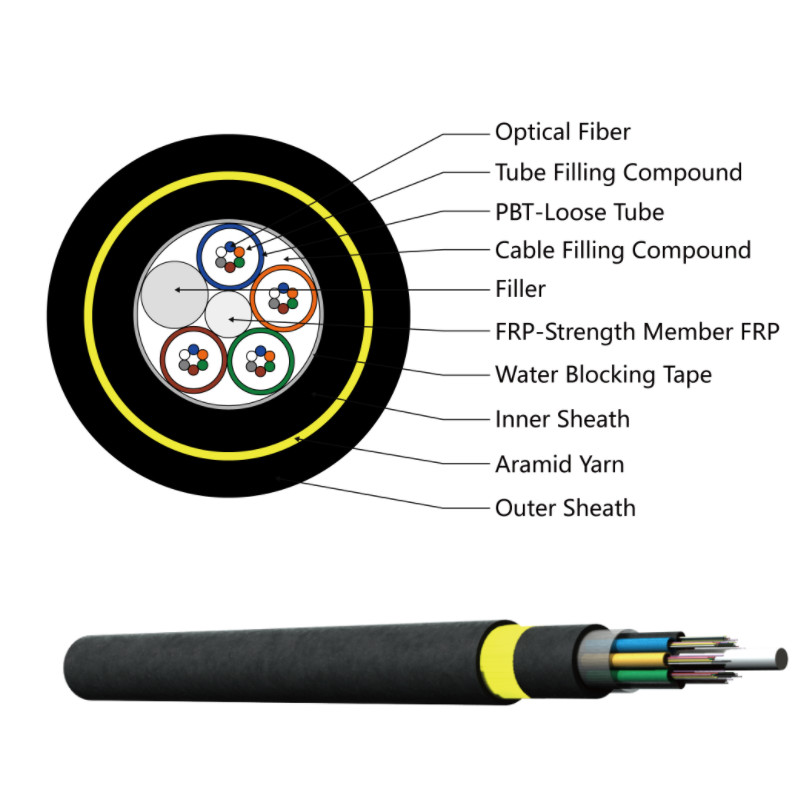

Structure and Technical Specifications
1. ADSS single jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+6 | 4 | 1.85 | 2.0/2.0 | 1.7±0.1 | 9.8 | 83 | 93 |
| 6 | 1+6 | 6 | 1.85 | 2.0/2.0 | 1.7±0.1 | 9.8 | 83 | 93 |
| 8 | 1+6 | 4 | 1.85 | 2.0/2.0 | 1.7±0.1 | 9.8 | 83 | 93 |
| 12 | 1+6 | 6 | 1.85 | 2.0/2.0 | 1.7±0.1 | 9.8 | 83 | 93 |
| 24 | 1+6 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 9.8 | 86 | 96 |
| 48 | 1+6 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 10.0 | 89 | 99 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 10.5 | 99 | 109 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 12.0 | 124 | 136 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 15.2 | 176 | 189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+6 | 4 | 1.85 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 6 | 1+6 | 6 | 1.85 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 8 | 1+6 | 4 | 1.85 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 12 | 1+6 | 6 | 1.85 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 24 | 1+6 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.0 | 128 | 138 |
| 48 | 1+6 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.5 | 130 | 140 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 13.2 | 145 | 155 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 14.5 | 185 | 195 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 16.5 | 212 | 228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type |
Attenuation (+20℃) |
Bandwidth |
Optical cable cut-off wavelength |
||||
|---|---|---|---|---|---|---|---|
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | --- |
Details picture shows

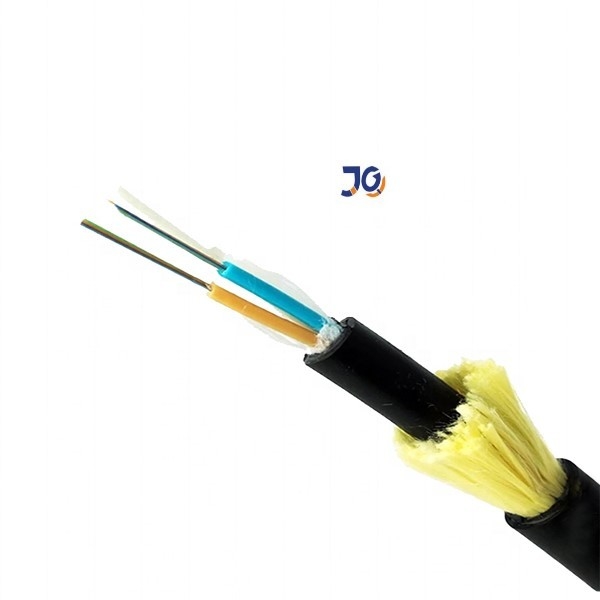

single jacket ADSS fiber cable

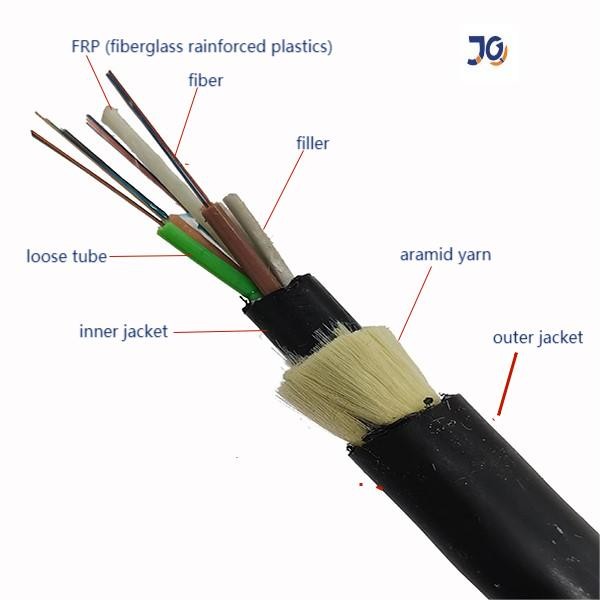

double jacket ADSS fiber optic cable
Packing:
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord.
Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
