Self Supporting Aerial No Metal ADSS Fiber Optic Cable 12 /24/48 Cores Span 200m

Minimum Order Quantity : 10km Packaging Details : Wooden drum
Delivery Time : it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 15000km per Month
Brand Name: JQ/HAISO Certification: ISO 9001/CE/ROHS/FCC
Model Number: ADSS-24B1/12B1

Detail Information

Place Of Origin: Guangzhou,China Cable Brand: JQ Or Customized
Number Of Conductor: ≥ 10 Manufacturer: Yes
Application: Overhead Telecommunication Outer Sheath: PE/HDPE
Number Of Fiber: 2-288 Storage And Use Temperature: -40℃ To +70℃.
Out Sheath: PE/AT Fiber Brand: YOFC/Corning
High Light:

200m ADSS Fiber Optic Cable

,

ADSS Fiber Optic Cable 24 Cores

Product Description

Self Supporting Aerial no metal ADSS Fiber Optic Cable 12 /24/48 cores Span 200m

product desctirption
All-dieletirc  self-supporting optical cable (ADSS) has no metal, tension resistance, self-supporting, high insulation, no induction, small diameter, light, easy construction and economic. It is a combination of optical fiber bundle wound on the center reinforcement, through insulation, waterproof, reinforcement, sheath and other protective measures made.

Characteristics
· Can be installed without shutting off the power
· Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
· Light weight and small diameter reducing the load caused by ice and wind and the load on towers
  and backprops
· Large span lengths and the largest span is over 1000m
· Good performance of tensile strength and temperature
· The design life span is 30 years
·Application
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
·Standards
ADSS cable complies with Standard IEEE P 1222 as well as IEC 60794-1.

ADSS detail pictures showes:

Self Supporting Aerial No Metal ADSS Fiber Optic Cable 12 /24/48 Cores Span 200m 0

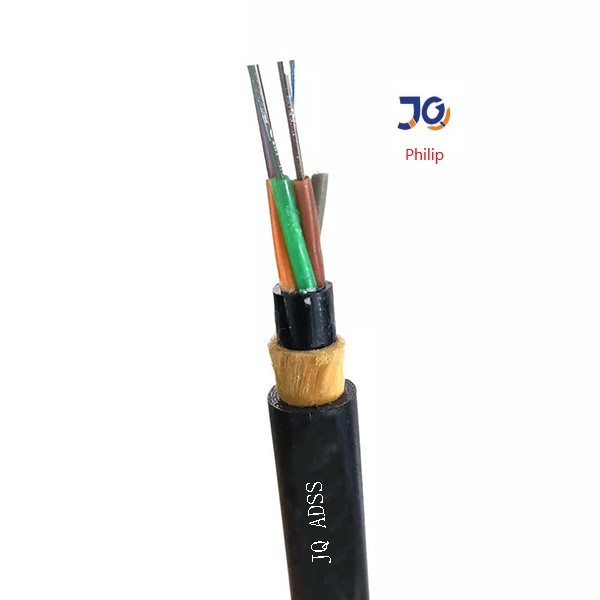

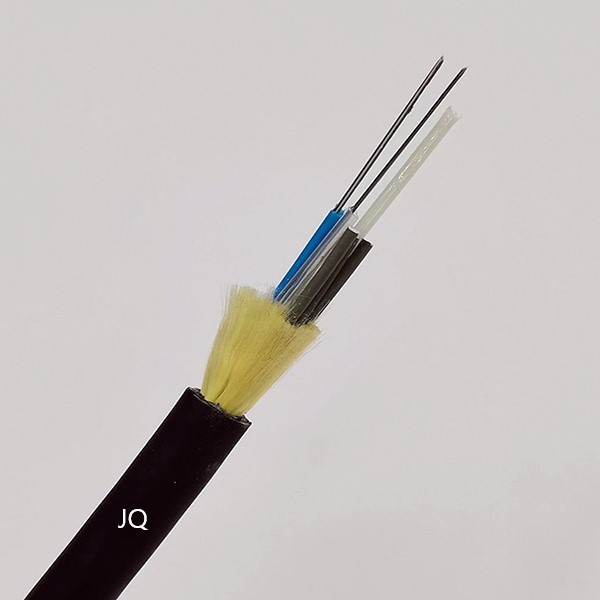

                                                 single jacket ADSS

Self Supporting Aerial No Metal ADSS Fiber Optic Cable 12 /24/48 Cores Span 200m 1

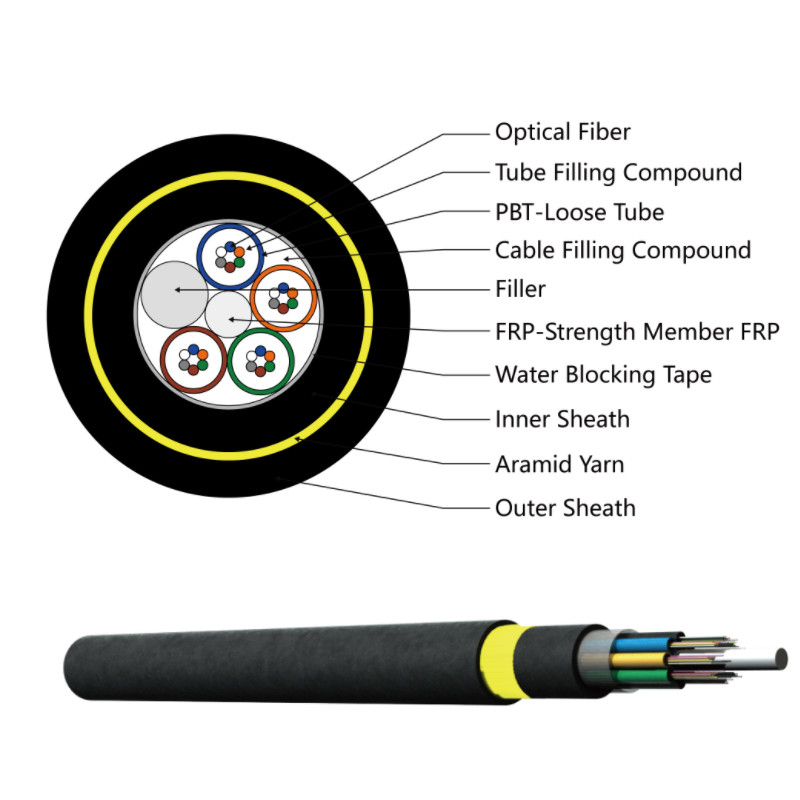

                                                double jackets ADSS


ADSS data sheets



Structure and Technical Specifications ADSS-SJ(50-150M)

Ref. Outer
Diameter
(mm)
Ref. Weight
(kg/km)

Rec. Daily Max.
Working Tension
(kN)

Max Allowable
Working Tension
(kN)

Break
Strength
(kN)

Strength
Member
CSA
(mm2)

Modulus of
Elasticity
CSA
(kN/mm2)

Heat
Expansion
Coefficient
(x10- 6/K)

Suitable Span
 Meter
PE JacketAT JacketABCD
111101201.02.583.06.62.11208010080
11.51151251.54104.57.31.8180120150120
121201302.56157.58.31.5250150290150


Structure and Technical Specifications ADSS-DJ(50-750M)

Ref. Outer
Diameter
(mm)
Ref. Weight
(kg/km)

Rec. Daily Max.
Working Tension

(kN)

Max Allowable
Working Tension
(kN)

Break
Strength
(kN)

Strength
Member
CSA
(mm2)

Modulus of
Elasticity
CSA
(kN/mm2)

Heat
Expansion
Coefficient
(x10- 6/K)

Suitable Span
 Meter
PE JacketAT JacketABCD
12.51251361.54104.67.61.8160100140100
13.01321422.256157.68.31.5230150200150
13.31371483.082010.359.451.3300200290200
13.61451563.6102413.810.81.2370250350250
13.81471594.5123014.311.81.0420280400280
14.51641775.4153618.413.60.9480320460320
14.91711856.75184522.016.40.6570380550380
15.11791937.95225326.418.00.3670460650460
15.51902049.0266032.219.10.1750530750510


Optical characteristic


Fiber type

Attenuation
(+20℃)

Bandwidth

Numerical aperture

Optical cable cut-off wavelength

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm

G.652------≤0.36dB/km≤0.22dB/km---------≤1260nm
G.655------≤0.40dB/km≤0.23dB/km---------≤1450nm
50/125µm≤3.3dB/km≤1.2dB/km------≥500MHz·km≥500MHz·km0.200±0.015 NA---
62.5/125µm≤3.5dB/km≤1.2dB/km------≥200MHz·km≥500MHz·km0.275±0.015 NA---



FAQ
1. Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2. About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.

3. Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4. What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5. Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.











Application: Self-supporting overhead
