GYTA53 Outdoor Singlemode Underground Fiber Optic Cable Direct Buried Armoured Steel Tape Double Jacket

Minimum Order Quantity : 5 km Packaging Details : wooden drum
Delivery Time : 9 days Payment Terms : L/C, T/T, Western Union
Supply Ability : 6000KM Per Month
Place of Origin: China Brand Name: JQ/OEM
Certification: ISO9001/RoHs/CE Model Number: GYTA53-12/24/48B1.3

Detail Information

Fiber Type: YOFC,Fiberhome, Corning Color: Black Or As Your Required
Jacket: PE,HDPE/LSZH/AT Strength Member: Steel Wire Or FRP
Fiber Count: 2-144 Cores Installation: Directly Buired & Underground
Armored: Steel & Aluminium Tape Product Name: Outdoor Optic Fiber Cable
Fiber Type: Single Mode And Multimode OM3/OM4 Sample: Acceptable
High Light:

GYTA53 Underground Fiber Optic Cable


Double Jacket Underground Fiber Optic Cable

Product Description

GYTA53 Outdoor SingleMode UnderGround Direct Buried Armoured Steel Tape Double Jacket Fiber Optic


Product Description



GYTA53 Cable is Moisture-proof and rodent-proof cable, fibers are housed in loose tubes that are made of high-modulus plastic. The tubes are stranded around a central strength member to form a cable core. Two layer tape, Aluminium tape+Coated steel tape , then PE as outer Jacket.






 Duct / underground/Direct buried

Specification & Features
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Crush resistance and flexibility
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- APL moisture barrier
- PSP enhancing moisture-proof
- Water-blocking material



Optical Characteristics

Items Unit Specification
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % 0.7
Core-Cladding Concentricity Error um 0.5
Coating Diameter um 245±5
Coating Non-Circularity % 6.0
Cladding-Coating Concentricity Error um 12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22



Technical Parameters

Min.Bend Radius Mlin.Tension
Static Dynamic Long Term Short Term Long Term Short Term
2-24 12.0 180




10 times Diameter









20 Times









1000 3000 1000 3000
26-36 12.2 195 1000 3000 1000 3000
38-60 12.5 205 1000 3000 1000 3000
62-72 12.8 225 1000 3000 1000 3000
74-96 13.5 245 1000 3000 1000 3000
98-120 14.4 275 1000 3000 1000 3000
122-144 16.5 315 1000 3000 1000 3000



Product showes


GYTA53 Outdoor Singlemode Underground Fiber Optic Cable Direct Buried Armoured Steel Tape Double Jacket 0

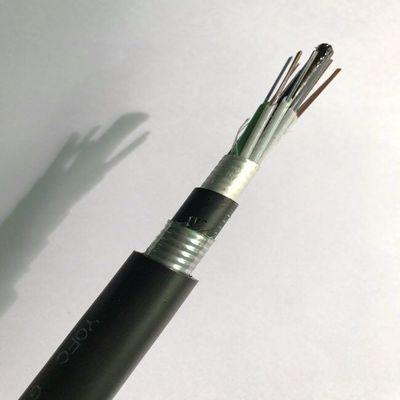

GYTA53 Outdoor Singlemode Underground Fiber Optic Cable Direct Buried Armoured Steel Tape Double Jacket 1









1.  Are you factory direct?

as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.


2.  What is your main products?

Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS

Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord


3.  Product quality guarantee period?

20 years Guarantee for fiber optic cable


4.  Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
