12 24 48 96 Core Outdoor Duct Fiber Optic Cable Non Armoured Optical Fiber Cable GYFTY GYFXY
12 24 48 96 Core Outdoor Duct Fiber Optic Cable Non Armoured Optical Fiber Cable GYFTY GYFXY
12 24 48 96 Core Outdoor Duct Fiber Optic Cable Non Armoured Optical Fiber Cable GYFTY GYFXY 12 24 48 96 Core Outdoor Duct Fiber Optic Cable Non Armoured Optical Fiber Cable GYFTY GYFXY 12 24 48 96 Core Outdoor Duct Fiber Optic Cable Non Armoured Optical Fiber Cable GYFTY GYFXY
Contact Now

12 24 48 96 Core Outdoor Duct Fiber Optic Cable Non Armoured Optical Fiber Cable GYFTY GYFXY

Minimum Order Quantity : 1km Packaging Details : Plywood drum
Delivery Time : Normally 3-5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 6000km per month
Place of Origin: China Brand Name: Jiqian
Certification: ISO9001 ROHS CE FCC Model Number: GYFTY-12B1

Detail Information
Place Of Origin: Guangzhou China Brand Name: Jiqian
Number Of Conductors: ≥ 10 Strength Member: FRP
Laying Mode: Duct/Aerial Storage/operating Temperature:: -40 To +70 °C
OEM: Yes Factory: Yes
Structure: Stranded Loose Tube Armoured: Non
High Light:

Outdoor Duct Fiber Optic Cable

,

Duct Fiber Optic Cable Non Armoured

Product Description

Good Quality GYFTY 12 24 48 96 Core Outdoor Duct Fiber Optic Cable Non-Armoured Optical Fiber Cable GYFTY GYFXY

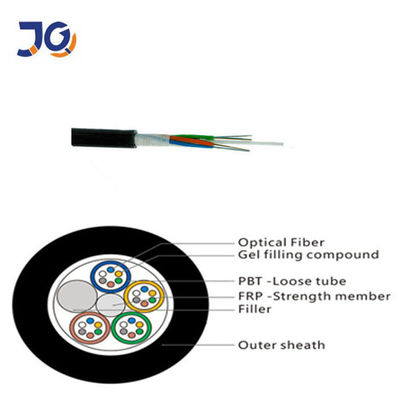

The fibers, 250μm, are positioned in a loose tube which is made of a high modulus plastic. All the tubes are filled with a water- resistent filling compound. We use the FRP(fiber reinforced plastic) as the strength member. The optical cable have a very good mechanical and temperature performance. You don't need to worry about the crush resistance and flexibility during the storage and operating.
12 24 48 96 Core Outdoor Duct Fiber Optic Cable Non Armoured Optical Fiber Cable GYFTY GYFXY 0
12 24 48 96 Core Outdoor Duct Fiber Optic Cable Non Armoured Optical Fiber Cable GYFTY GYFXY 1

Cable Performance



Item



Contents

Value
6/12/24487296
StructureType1+61+61+81+12



Loose tube

Max Fiber counts/tube6121212
Outer diameter (mm)1.9±0.12.2±0.12.2±0.12.2±0.1



Central strength member

MaterialFRP
Diameter (mm)1.41.62.02.2
PE layer diameter (mm)---- 3.5
Peripheral strength memberMaterialFRP



Sheath

MaterialHDPE
ColorBlack
Thickness (mm)Nominal: 1.6
Cable diameter(mm) Approx.8.8±0.29.2±0.29.5±0.311.0±0.3
Cable weight(kg/km) Approx.606575103


Fiber parameter

ItemUnitSpecification
Fiber TypeG.652D



Mode field diameter

1310nmmm9.2±0.4
1550nmmm10.4±0.8
Cladding diametermm125.0±1
Cladding non-circularity%≤1.0
Core/cladding concentricity errormm≤0.5
Coating diametermm245±5
Coating non-Circularity%≤6.0
Coating/cladding concentricity errormm≤12.0
Cable cut-off wavelengthnm≤1260



Attenuation Coefficient

1310nmdB/km≤0.36
1550nmdB/km≤0.22
Proof stress levelkpsi≥100


Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
12 24 48 96 Core Outdoor Duct Fiber Optic Cable Non Armoured Optical Fiber Cable GYFTY GYFXY 2
12 24 48 96 Core Outdoor Duct Fiber Optic Cable Non Armoured Optical Fiber Cable GYFTY GYFXY 3



FAQ:

1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc


4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?
A:Yes. We supply OEM service.


7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
