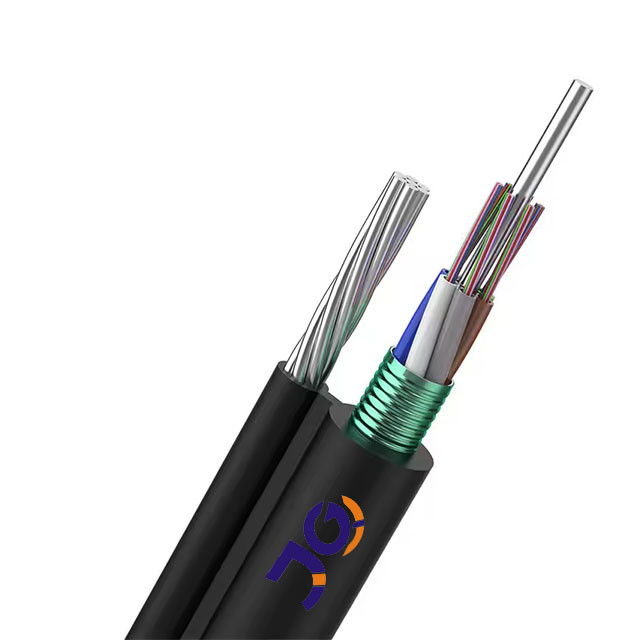

Fiber Optic 12 24 48 96 Core Single Mode Self-Supporting Aerial Fig 8 GYTC8S GYTC8Y Fiber Optic Cable

Product Description

Fiber Optic 12 24 48 96 Core Single Mode Self-Supporting Aerial Fig 8 GYTC8S GYTC8Y Fiber Optic Cable



Fiber Optic G652D



Parameter	Specification
MFD (1310nm)	9.2±0.4 um
MFD (1550nm)	10.4±0.8 um
Cladding diameter	125±1.0um
Fiber diameter	235~255um, with UV coating, and colored to : 250±15um
Core/cladding concentricity error	≤ 0.5um
Coating/cladding concentricity error	≤ 12.0um
Cladding non circularity	≤ 1.0%
Cut off wavelength	λcc ≤1260nm
Attenuation coefficient	1310nm: 0.35dB/km max after cabling 1550nm: 0.21dB/km max after cabling
Bending-loss performance of optical fiber @1310nm&1550nm	≤0.05dB (100 turns around a mandrel of 50mm diameter)
Polarization mode dispersion maximum individual fibre	≤0.2ps/√km
Polarization mode dispersion link value	≤0.1ps/√km
Zero-dispersion wavelength	1300~1324nm
Zero-dispersion slope	≤0.092ps/nm2·km

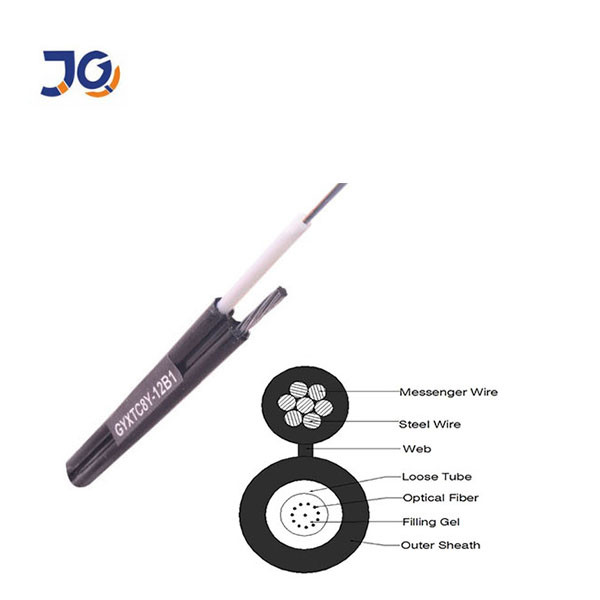

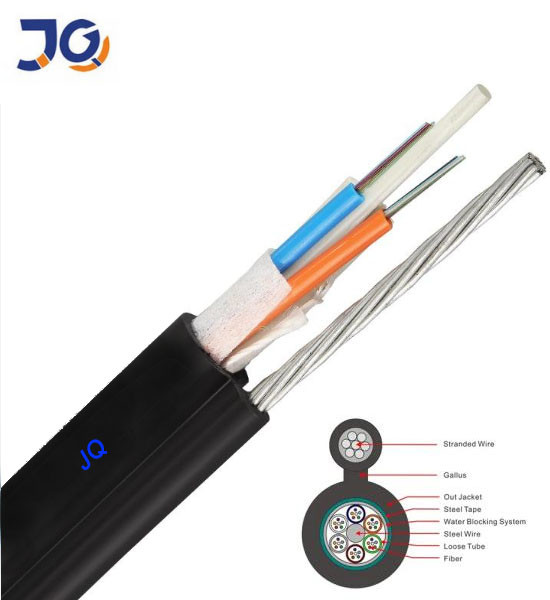

Cable performance:



Item		Parameters
Fiber Count		24
Colored coated fiber	Dimension	250µm±15µm
	Color	Blue,Orange,Green,Brown, Gray,White
Loose tube	Dimension	2.0mm±0.1mm
	Material	PBT
	Color	Blue,Orange,Green,Brown
Filler	Material	PE
	Color	White
Central Strength Member	Dimension	1.5mm
	Material	FRP
Armoured	Material	Corrugated steel tape
Inner Jacket	PE
Messenger Stranded steel wire	Dimension	3.0mm(7*1.0mm)
Outer jacket	Material	PE
	Color	Black



Certification:





Company profile:

Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 12 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa



Exhibition:

FAQ:

Q1.What is your terms of packing?

A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements



Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.



Q3. What is your terms of Trade?

A: EXW, FOB, CFR, CIF



Q4. How about your delivery time?

A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends

on the items and the quantity of your order.



Q5. Can you provide OEM or ODM

A: Yes



Q6. What is your sample policy?

A: We provide FREE sample if we have them in stock



Q7. Do you test all your goods before delivery?

A: Yes, all of cables have to be tested before delivery



Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
