OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : vicky
Phone Number : +8618998347595
WhatsApp : +8618998347595

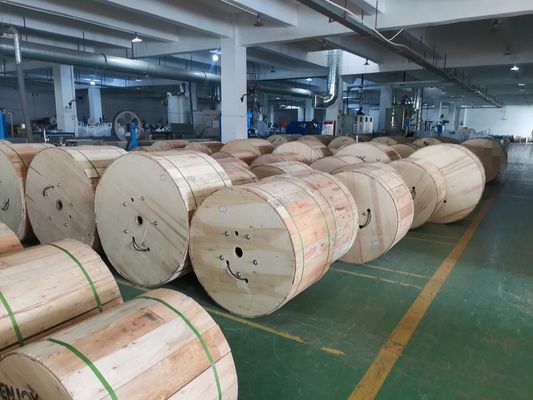

| Minimum Order Quantity : | 1km | Packaging Details : | Plywood drum |
|---|---|---|---|
| Delivery Time : | Normally 3-5 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
| Supply Ability : | 6000km per month |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE FCC | Model Number: | GYFTY-144B1 |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou China | Brand Name: | Jiqian |
|---|---|---|---|
| Number Of Conductors: | ≥ 10 | Strength Member: | FRP |
| Laying Mode: | Duct/Aerial | Storage/operating Temperature:: | -40 To +70 °C |
| OEM: | Yes | Factory: | Yes |
| Structure: | Stranded Loose Tube | Installation: | Unarmoured Underground Pipe |
| High Light: | Outdoor Fiber Optic Cable 144 Core,SM Outdoor Fiber Optic Cable,Outdoor Fiber Optic Cable Single Mode |
||
Product Description

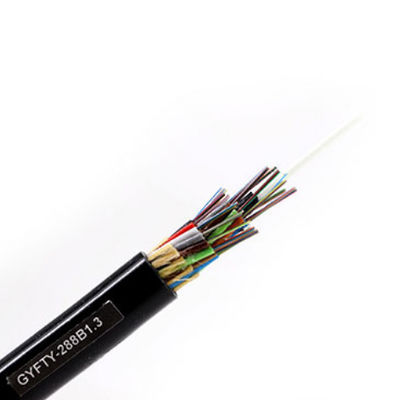

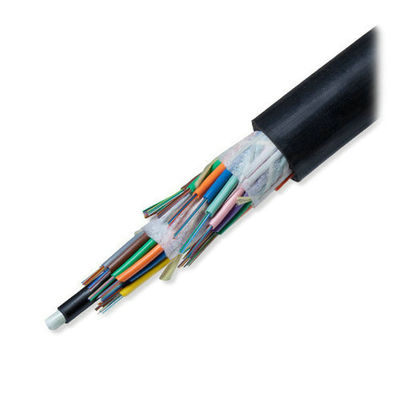

Outdoor fiber optic cable 144 core single mode SM fibra optica cable

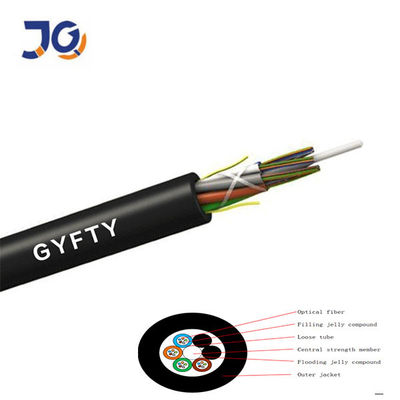

The fibers, 250μm, are positioned in a loose tube which is made of a high modulus plastic. All the tubes are filled with a water- resistent filling compound. We use the FRP(fiber reinforced plastic) as the strength member. The optical cable have a very good mechanical and temperature performance. You don't need to worry about the crush resistance and flexibility during the storage and operating.
Cable Performance
|
Item |
Contents |
Value | |||
| 4-12 | 24-48 | 72 | 96 | ||
| Structure | Type | 1+6 | 1+6 | 1+8 | 1+12 |
|
Loose tube |
Max Fiber counts/tube | 6 | 12 | 12 | 12 |
| Outer diameter (mm) | 1.9±0.1 | 2.2±0.1 | 2.2±0.1 | 2.2±0.1 | |
|
Central strength member |
Material | FRP | |||
| Diameter (mm) | 1.4 | 1.5 | 2.0 | 1.6/ | |
| PE layer diameter (mm) | -- | -- | 3.2 | ||
| Peripheral strength member | Material | FRP | |||
|
Sheath |
Material | HDPE | |||
| Color | Black | ||||
| Thickness (mm) | Nominal: 1.6 | ||||
| Cable diameter(mm) Approx. | 8.8±0.2 | 9.2±0.2 | 9.5±0.3 | 11.0±0.3 | |
| Cable weight(kg/km) Approx. | 60 | 65 | 75 | 103 | |
Fiber parameter
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
|
Mode field diameter |
1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | mm | ≤0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | mm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
|
Attenuation Coefficient |
1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 | |
| Proof stress level | kpsi | ≥100 | |
Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
Exhibition
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for freight
3.Do you accept small order?
Yes, small order is available .We support new project of our customers as we know business is from small order.
4.What is your warranty period?
25-30years life expectancy
5.Which kind of certification you have ?
ISO9001/FCC/ROHS/CE
6.What is your delivery time?
Usually within 5-7 working days,it depens on order quantity
7.What is your fiber brand?
YOFC ,Fiberhome
8.What is your payment way?
T/T,Western Union
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements
Welcome to visit our factory
Contact me to get free sample at +8618998347595
