Home ProductsOutdoor Fiber Optic CableGYFTY53 Direct Burial Span 100m 12 60 72 144 Cores Armored 12mm 18mm 24mm Fiber Optic Cable
GYFTY53 Direct Burial Span 100m 12 60 72 144 Cores Armored 12mm 18mm 24mm Fiber Optic Cable
GYFTY53 Direct Burial Span 100m 12 60 72 144 Cores Armored 12mm 18mm 24mm Fiber Optic Cable GYFTY53 Direct Burial Span 100m 12 60 72 144 Cores Armored 12mm 18mm 24mm Fiber Optic Cable GYFTY53 Direct Burial Span 100m 12 60 72 144 Cores Armored 12mm 18mm 24mm Fiber Optic Cable GYFTY53 Direct Burial Span 100m 12 60 72 144 Cores Armored 12mm 18mm 24mm Fiber Optic Cable GYFTY53 Direct Burial Span 100m 12 60 72 144 Cores Armored 12mm 18mm 24mm Fiber Optic Cable
Contact Now

GYFTY53 Direct Burial Span 100m 12 60 72 144 Cores Armored 12mm 18mm 24mm Fiber Optic Cable

Minimum Order Quantity : 2km Price : 220-950usd/km
Packaging Details : wood drum
Place of Origin: China Brand Name: Jiqian
Model Number: GYFTY53

Detail Information
Fiber Model: G652D Or G657A Waterproof: Yes
Suitable Temperature: -40℃ +70℃ Useful: FTTX
Type: GYFXTY Structure: Layer-stranding Cable
Network: FTTH FTTX
Highlight:

24mm Fiber Optic Cable

,

GYFTY53 Direct Burial Fiber Optic Cable

,

Fiber Optic Cable 100m

Product Description

GYFTY53 direct burial span 100m 12 60 72 144 cores armored 12mm 18mm 24mm fiber optic cable

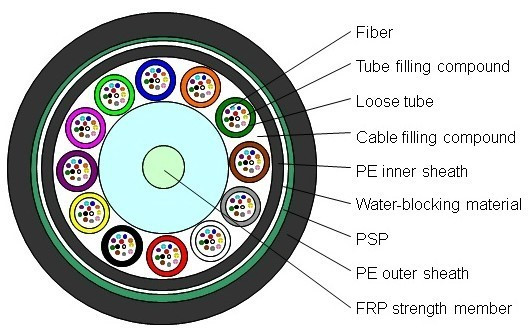

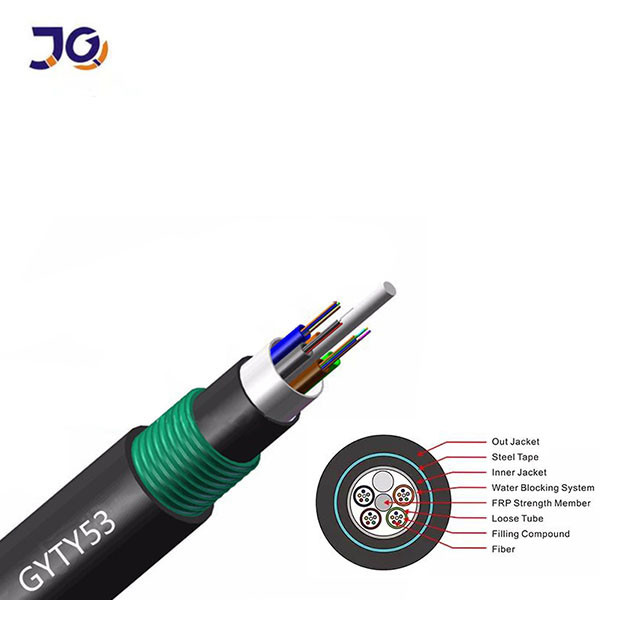

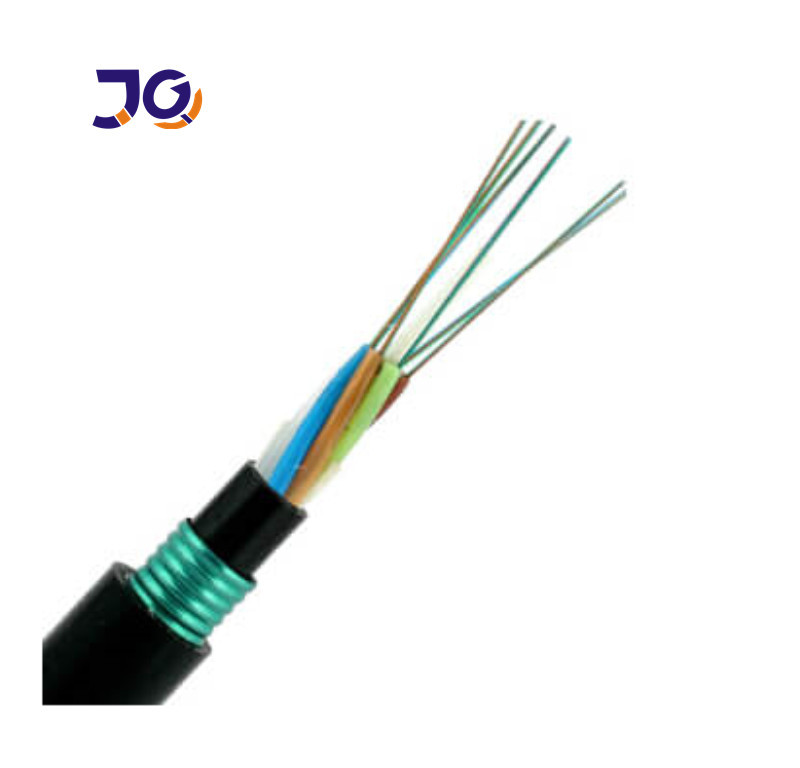

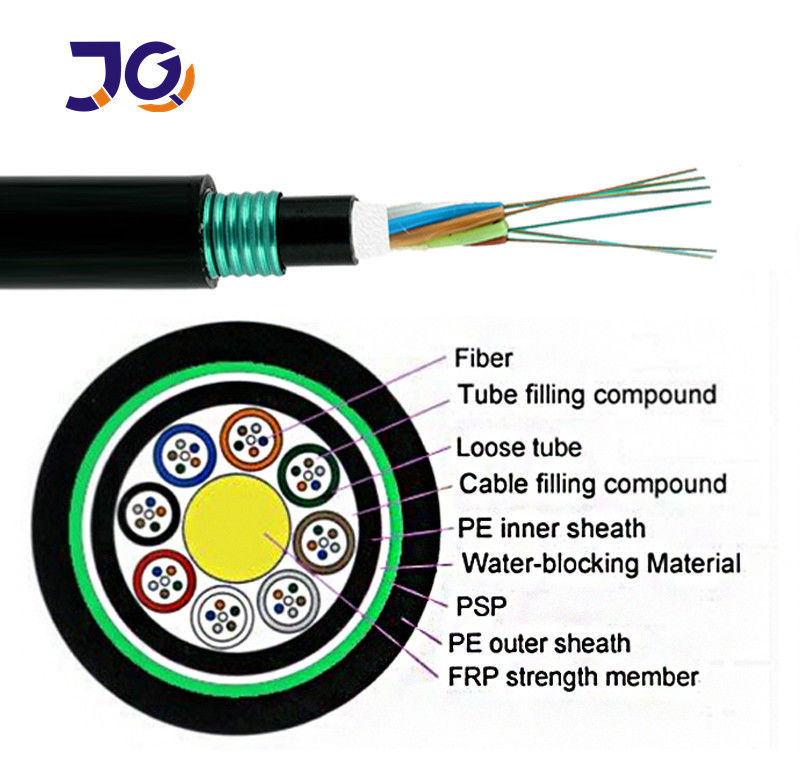

GYFTY53 Fiber Optic Cable Single Armor Double Jackets Stranded Loose Tube FRP Strength Member Waterproof Outdoor Cable is an outdoor cable, it is suitable for installation in high voltage area, the frequent lightning area and anti electric field. It can also be used for duct and direct buried application.
GYFTY53 Direct Burial Span 100m 12 60 72 144 Cores Armored 12mm 18mm 24mm Fiber Optic Cable 0
GYFTY53 Direct Burial Span 100m 12 60 72 144 Cores Armored 12mm 18mm 24mm Fiber Optic Cable 1
Characteristics:
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
Single steel wire or massagers as the additional strength member ensures good performance of tensile strength
Simple structure, light weight and high practicability
Novel flute design, easily strip and splice, simplify the installation and maintenance
Low smoke, zero halogen and flame retardant sheath.

Application:
Directly installed into houses Aerial Installation Suitable for Condominiuml Office Installation
Access network, fiber to the home
End users use directly cabling.
Support the internet, CATV and telephone, Support more network increase service in futureGood mechanical and enviromental characteristic Anti-UV charateristics meet the requirements of relevant standards The mechanical charateristics meet the requirements of relevant standards Soft ,flexiable ,easy to lay and splice,and with big capacity data transmission Meet various requirements of market and clients
Specification
Product Name
Fiber Optic Cable
Fiber Count
2-288 Fibers,can be customized according to customers' requirement
Construction
multi-layer Armored structure,double PE jacket
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
usually PE,plastic,LSZH,can be customized
Application
direct buried,duct severe environment
Jacket Diameter
12-24mm
Cable Length
1km,2km,3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-40℃ to +70℃
Strengthen
multi layers with metal belt
Color
usually black,can be customized
Related Products

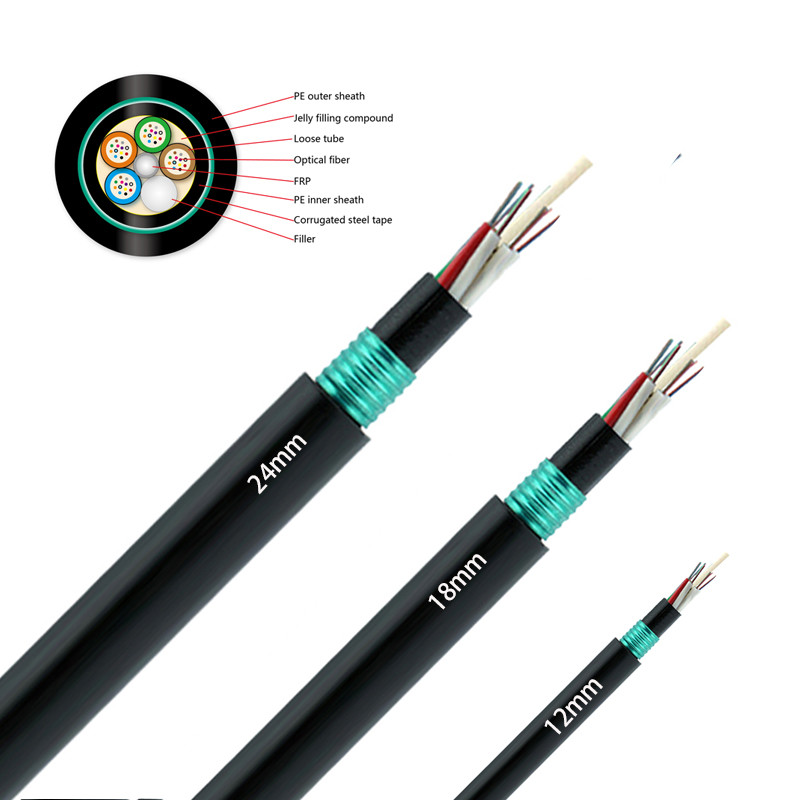

GYFTY53 Direct Burial Span 100m 12 60 72 144 Cores Armored 12mm 18mm 24mm Fiber Optic Cable 2
GYFTY53 Direct Burial Span 100m 12 60 72 144 Cores Armored 12mm 18mm 24mm Fiber Optic Cable 3
Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

Packing & Delivery
GYFTY53 Direct Burial Span 100m 12 60 72 144 Cores Armored 12mm 18mm 24mm Fiber Optic Cable 4
GYFTY53 Direct Burial Span 100m 12 60 72 144 Cores Armored 12mm 18mm 24mm Fiber Optic Cable 5
Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
