Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F
Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F
Contact Now

Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F

Minimum Order Quantity : 2km Price : 90-1000usd/km
Packaging Details : wood drum
Place of Origin: China Brand Name: Jiqian
Model Number: any style for choice,also customize

Detail Information
Fiber Model: G652D Or G657A Waterproof: Yes
Suitable Temperature: -40℃ +70℃ Useful: FTTX
Type: Different Models For Choice,can Customize For Customers Application: Aerial,duct,underground
Network: FTTH FTTX
High Light:

288 Cores Fiber Optic Cable

,

Overhead Direct Burial Fiber Optic Cable

Product Description

Factory outdoor fibra optica aerial overhead direct burial piping yofc fiber optic cable 96 48 core



Application

1. overhead
2. aerial
3. duct
4. direct burial
Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F 0
Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F 1
Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F 2
Specification
Product Name
outdoor fibra optica aerial overhead direct burial piping yofc fiber optic cable 96 48 core
Fiber Count
2-288 Fibers,can be customized according to customers' requirement
Construction
PE sheath + aramid yarn,FRP strengthen
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
usually PE,plastic,LSZH,can be customized
Application
overhead,aerial
Diameter
depends on quantity of fiber and structure
Cable Length
1km,2km,3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-40℃ to +70℃
Strengthen
FRP in the centre of the fiber optic cable
Color
usually black,can be customized
Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F 3

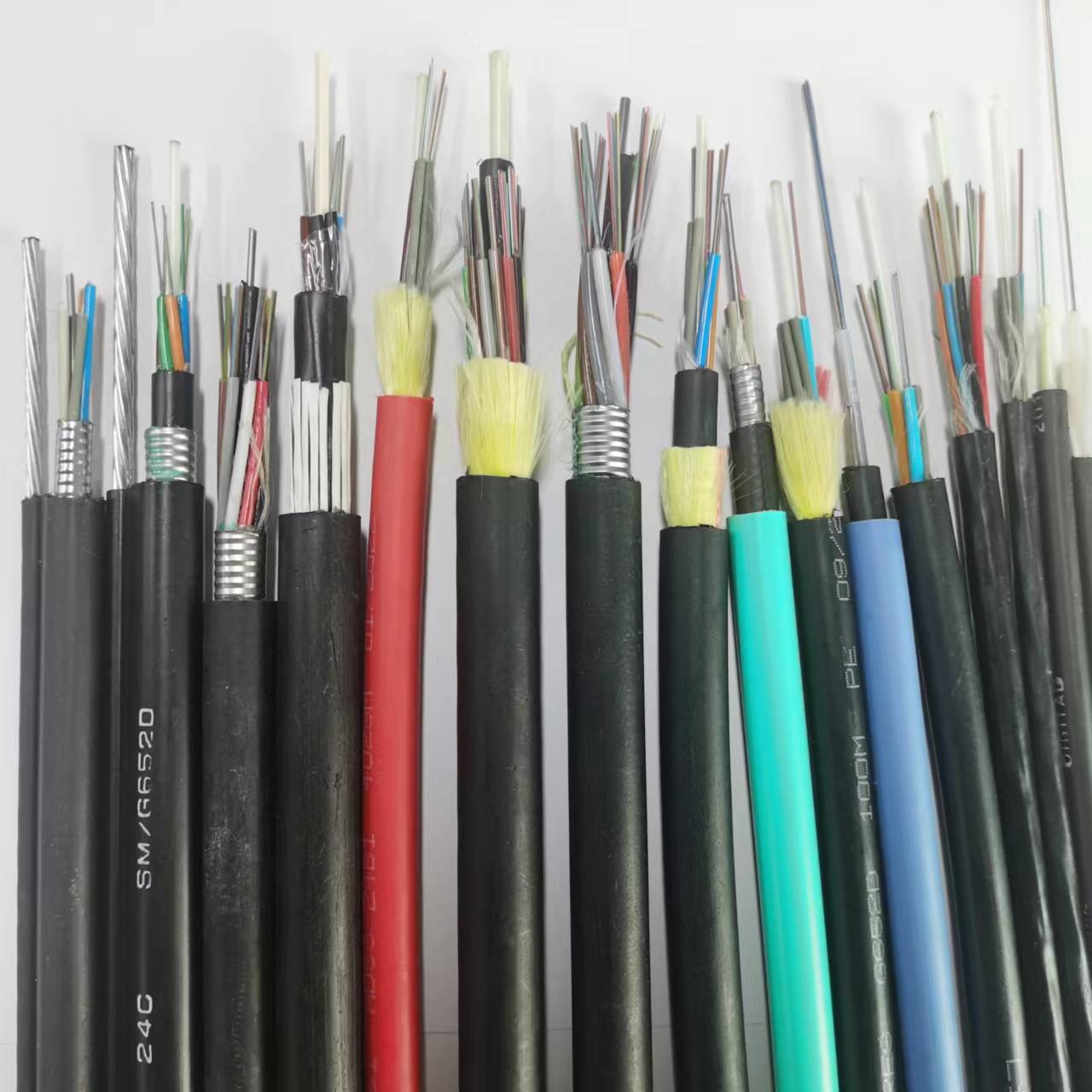

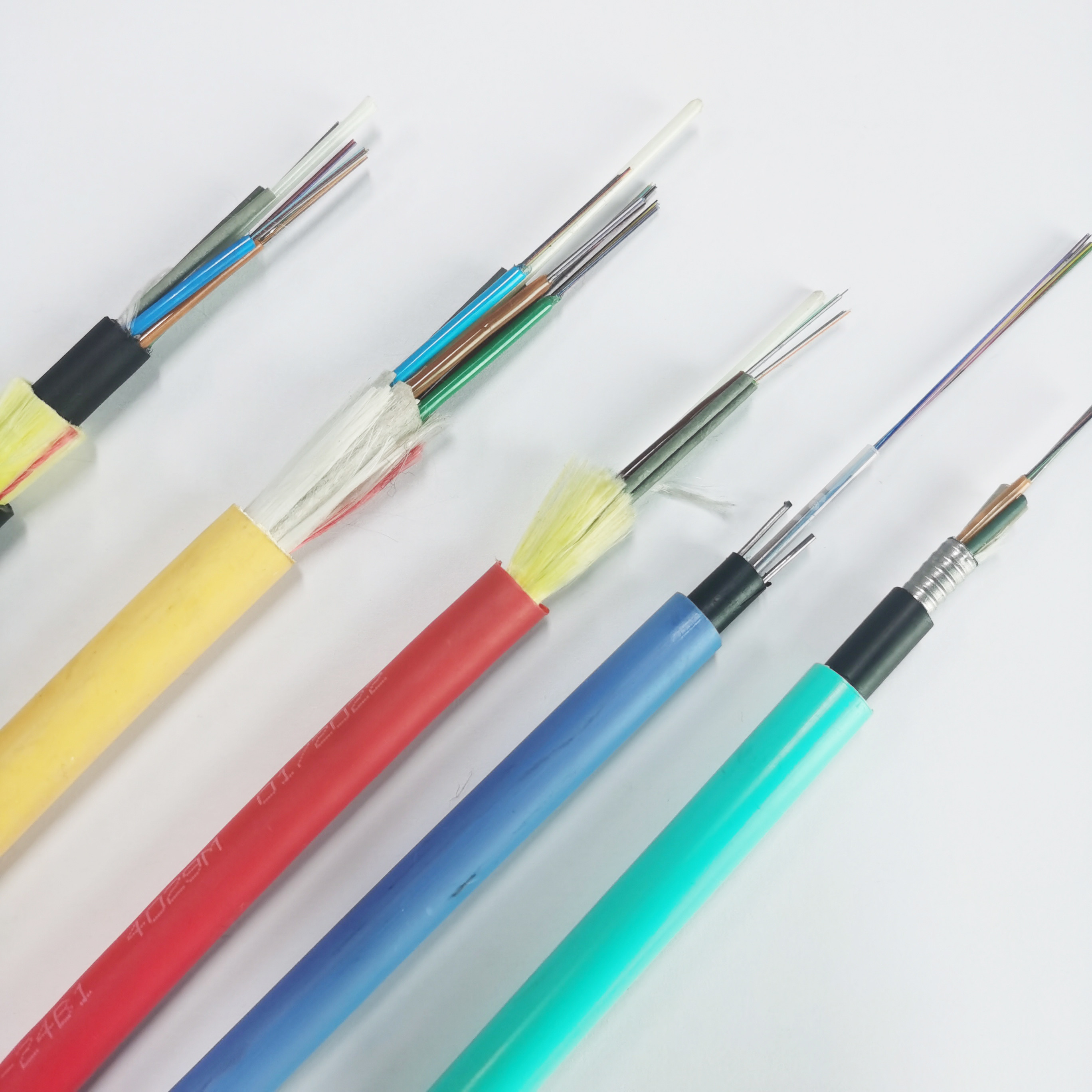

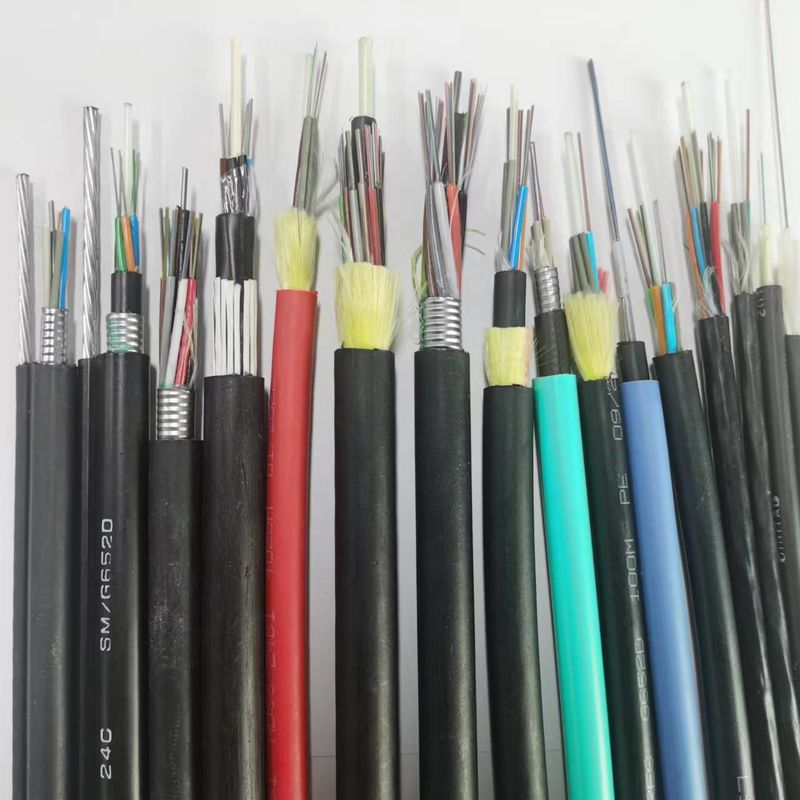

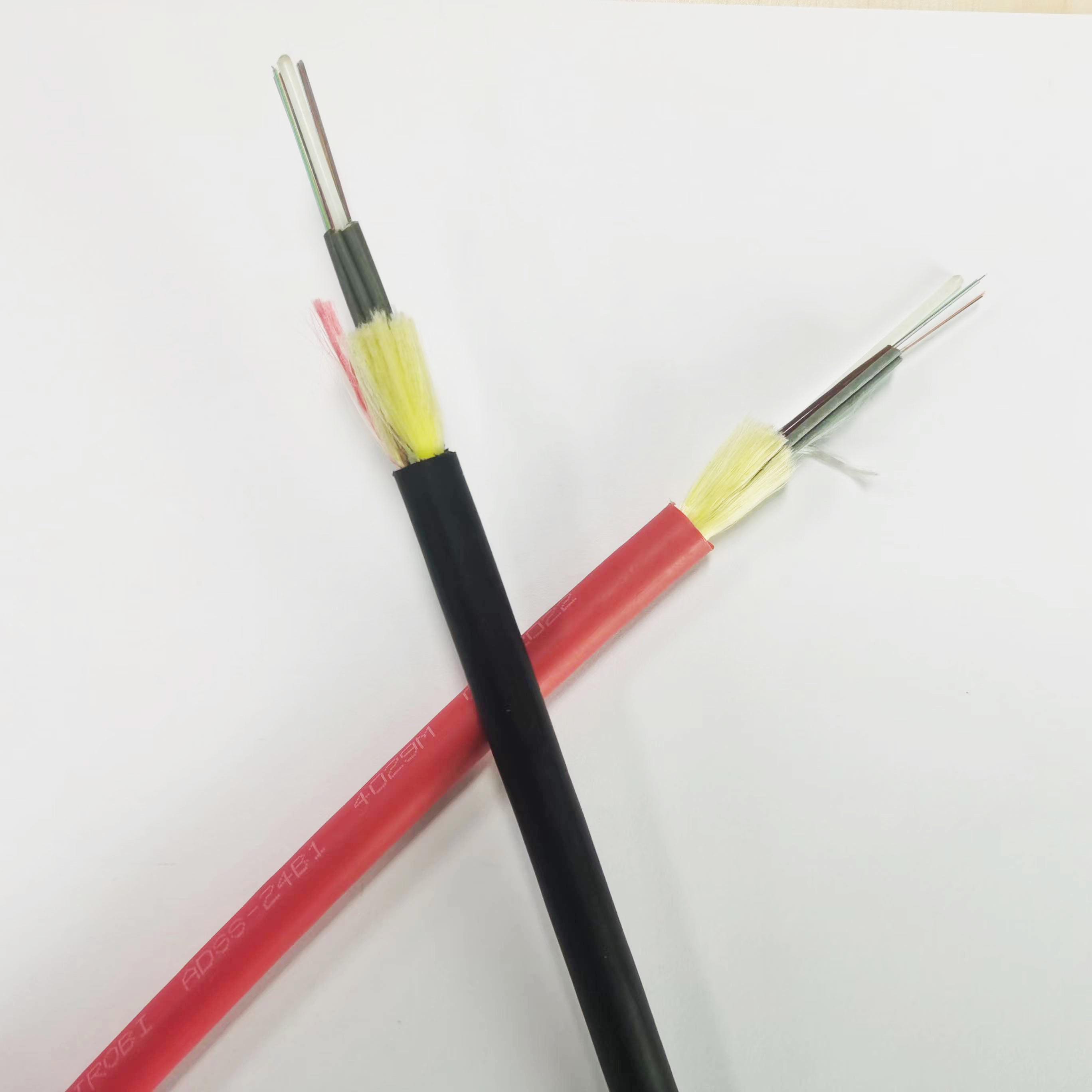

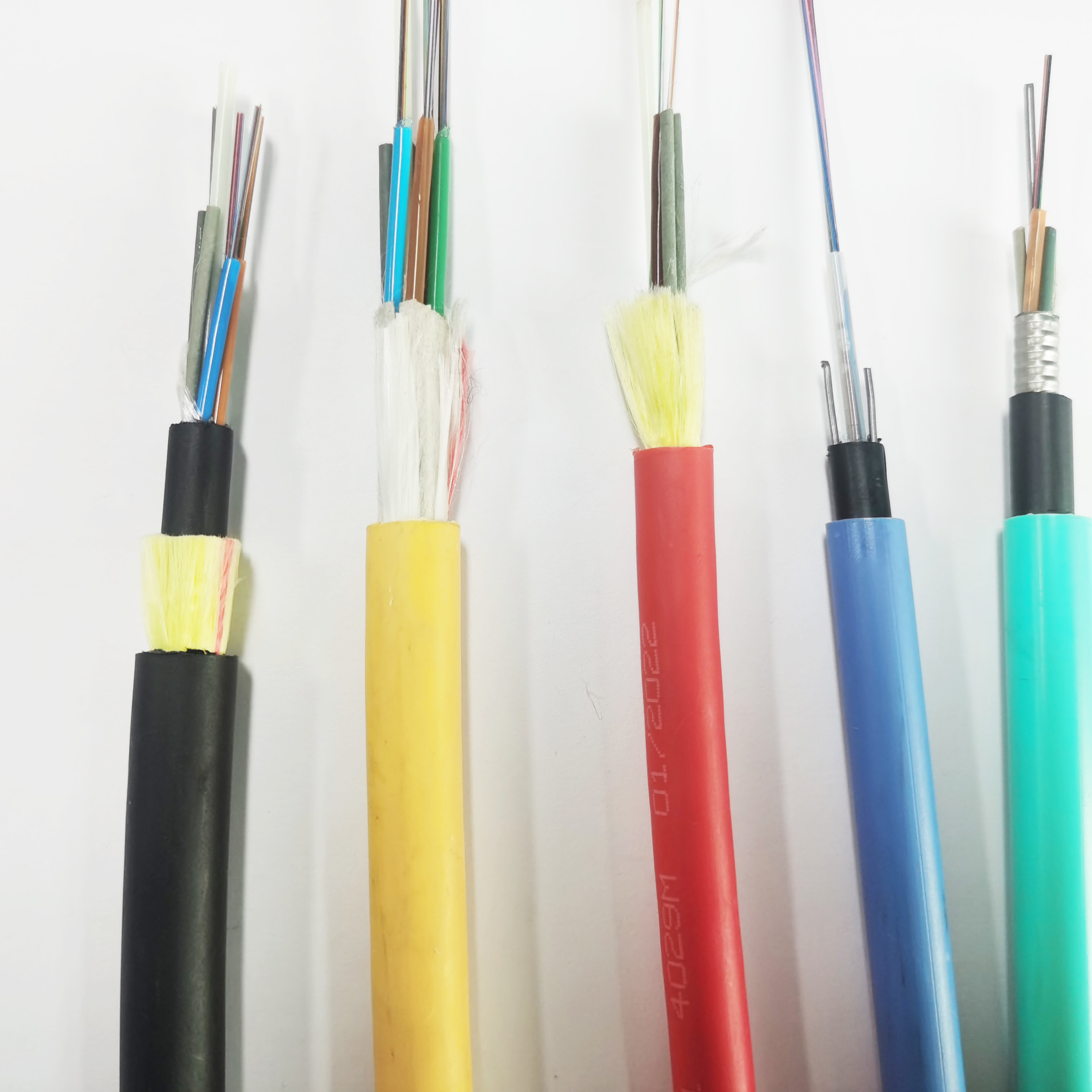

Hot selling models
Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F 4
Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

Fiber Parameter
Item
Unit
Specification
Fiber Type
G. 652
Mode field diameter
1310nm
μm
9.2 ± 0.4
1550nm
μm
10.4 ± 0.8
Cladding diameter
μm
125.0 ± 1
Cladding non-circularity
%
≤1.0
Core/cladding concentricity error
μm
≤0.5
Coating diameter
μm
242 ± 7
Coating/cladding concentricity error
μm
≤12
Cable cut-off wavelength
nm
≤12
Attenuation Coefficient
1310nm
dB/km
≤0.36
1550nm
dB/km
≤0.22
Proof stress level
kpsi
≥100
Packing & Delivery
Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F 5
Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F 6
Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F 7
Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F 8

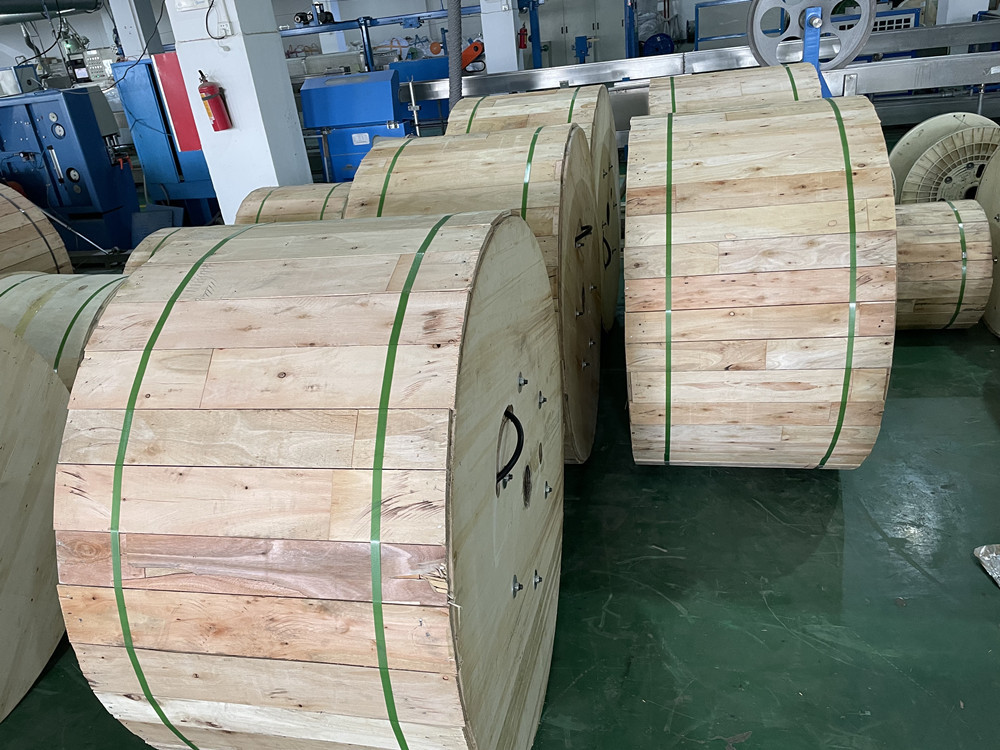

Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
00:01

00:12

Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F 9
Outdoor 2-288 Cores Fiber Optic Cable Aerial Overhead Direct Burial Duct Piping Yofc Fiber Optic Cable 96 48 F 10
