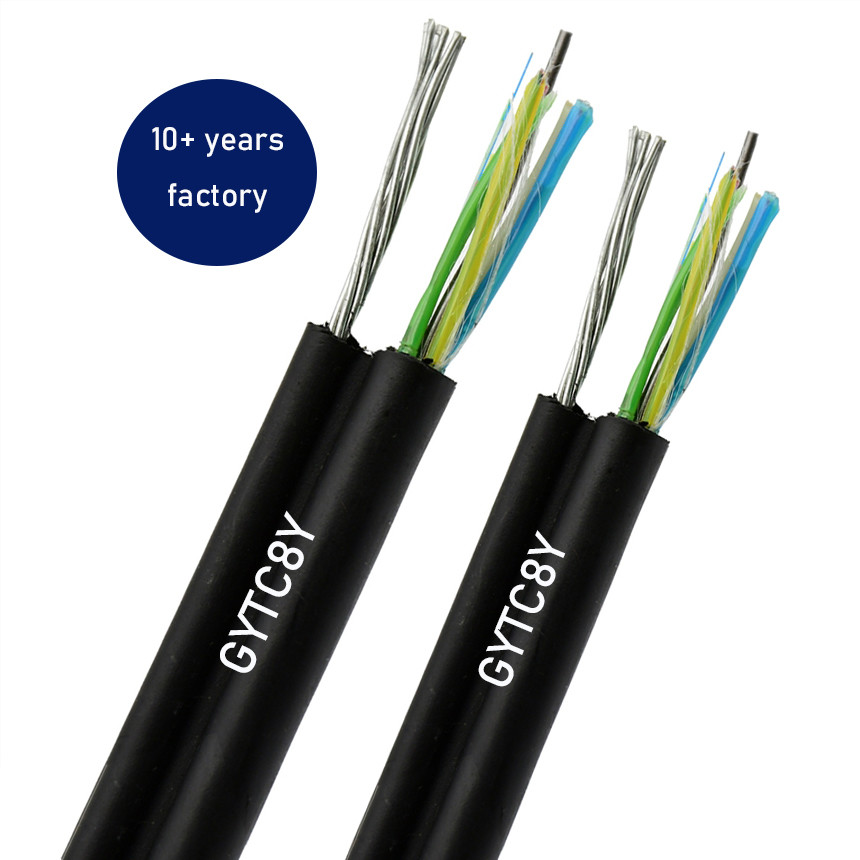

Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self - Supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable
Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self - Supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable
Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self - Supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self - Supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self - Supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self - Supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self - Supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self - Supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable
Contact Now

Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self - Supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable

Minimum Order Quantity : 1KM Price : 200-600USD/KM
Packaging Details : wooden drum Delivery Time : 3-5 days, it depends on your quantity
Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram Supply Ability : 60000KM/month
Place of Origin: Guangdong,China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: GYTC8Y

Detail Information
Fiber Count: 4 6 8 10 12 24 48 96 144 Core Strength Member: Metal Reinforcement
Warranty: 25 Years MOQ: 1KM
OEM: Yes Amoured: Yes
Length: 1/2/3/4/5KM Feature: Figure 8 Shape 4 6 8 10 12 24 48 96 144 Core Fiber Optic Cable
Highlight:

Self Supported Optic Fibre Cable

,

GYTC8Y Optic Fibre Cable

Product Description

Product Description

Factory Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self-supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable


Application:
Outdoor,aerial,overhead
Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self - Supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable 0
Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self - Supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable 1
GYTC8Y

No armour srtucture

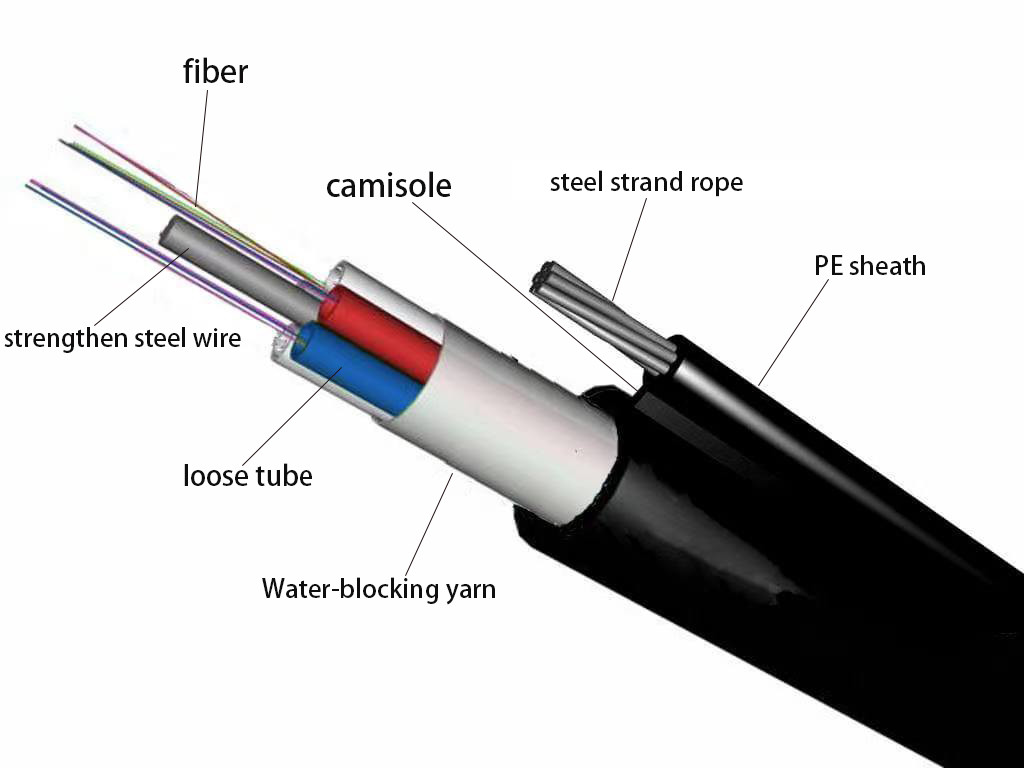

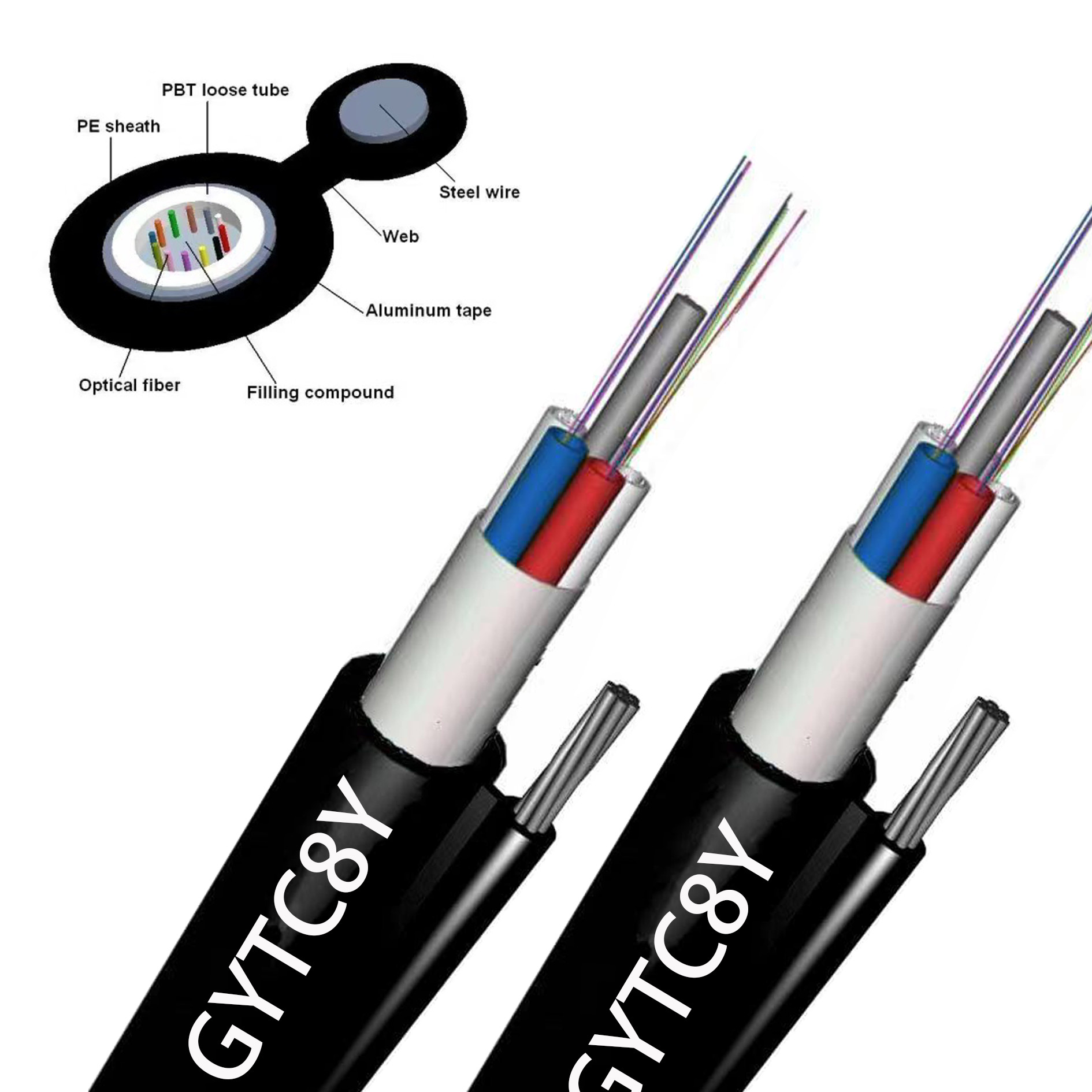

Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around steel wire central member.

The cable core is protected with jelly or water blocking material to prevent water intrusion and migration.

This set unit and steel strand messenger are covered with polyethylene outer jacket.

Specification
Product Name
Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self-supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable
Fiber Count
2-288 Fibers,can be customized according to customers' requirement
Construction
steel wire rope for strengthening + Center beam tube for fibers (no armour srtucture)
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
usually PE,plastic,LSZH,can be customized
Application
overhead, aerial
Diameter
depends on quantity of fiber and structure
Cable Length
1km,2km,3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-40℃ to +70℃
Strengthen
steel wire rope
Color
usually black,can be customized
Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self - Supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable 2
Related Products
Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self - Supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable 3
Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self - Supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable 4
Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

Packing & Delivery
Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self - Supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable 5
Outdoor Aerial GYTC8Y G652D Single Mode Figure 8 Self - Supported 4 6 8 10 12 24 48 96 144 Core Optic Fibre Cable 6

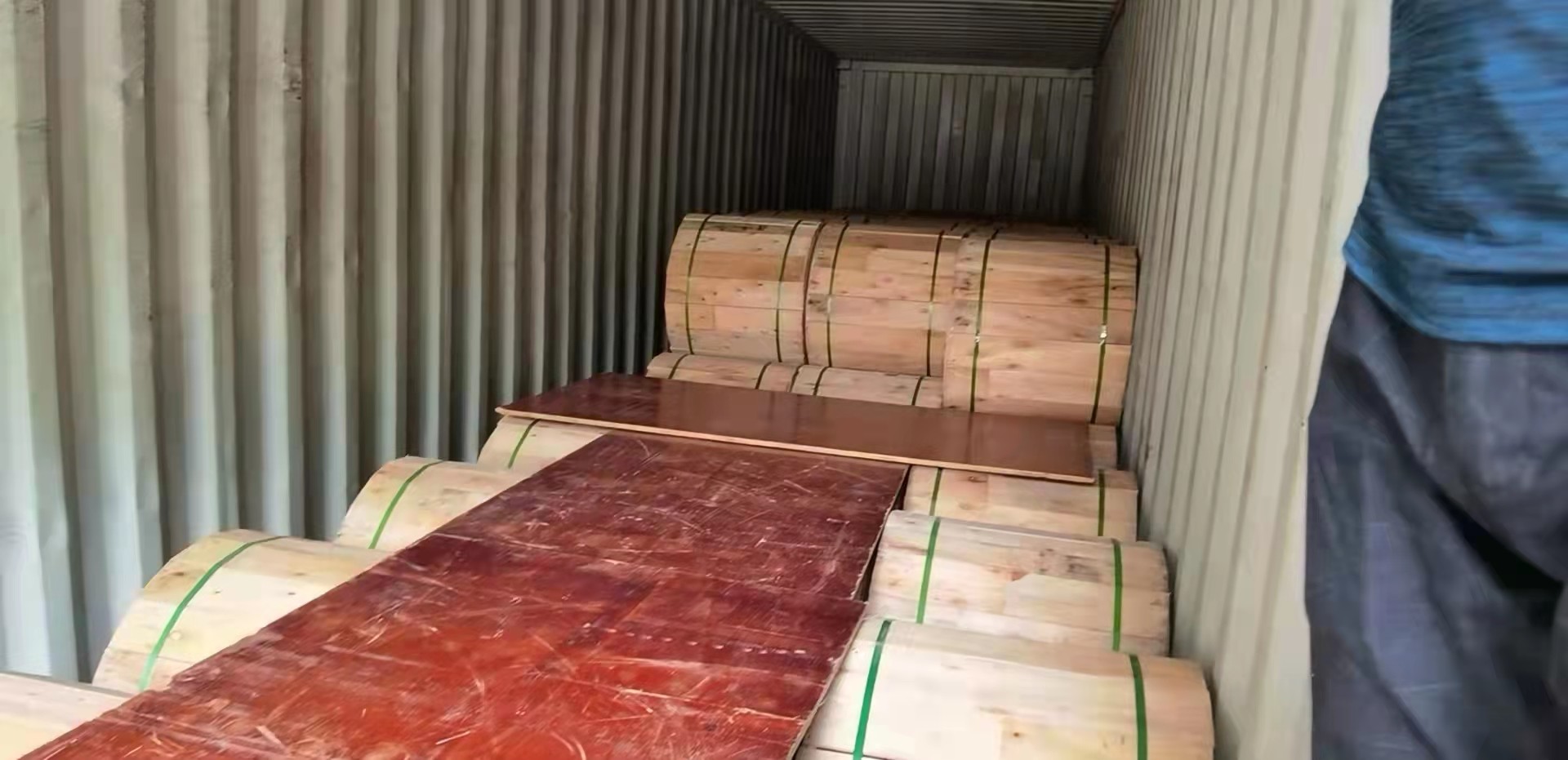

Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
