OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | ADSS |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Fiber Count: | 2-288 Cores |
| Length: | As Required | Color: | Customized |
| Jacket: | PE,MDPE,LSZH,PVC | Central Strength Member: | FRP |
| Structure: | Multi Loose Tube | Package: | Wooden Drum/Customized |
| Application: | Self-supporting Aerial | Oem: | Available |
| High Light: | Single/Double Outdoor Fiber Optic Cable,ADSS Outdoor Fiber Optic Cable,Outdoor overhead Outdoor Fiber Optic Cable |
||
Product Description

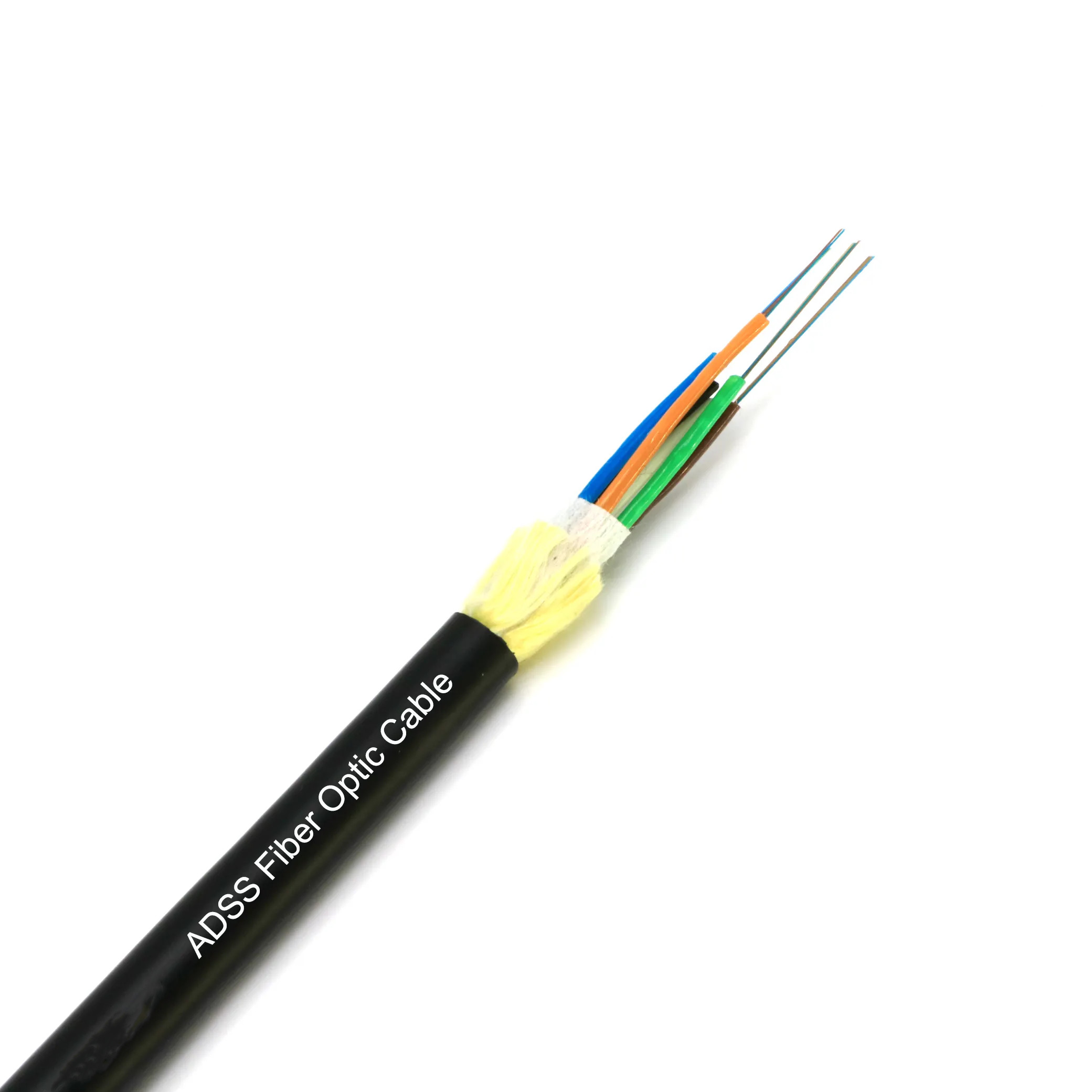

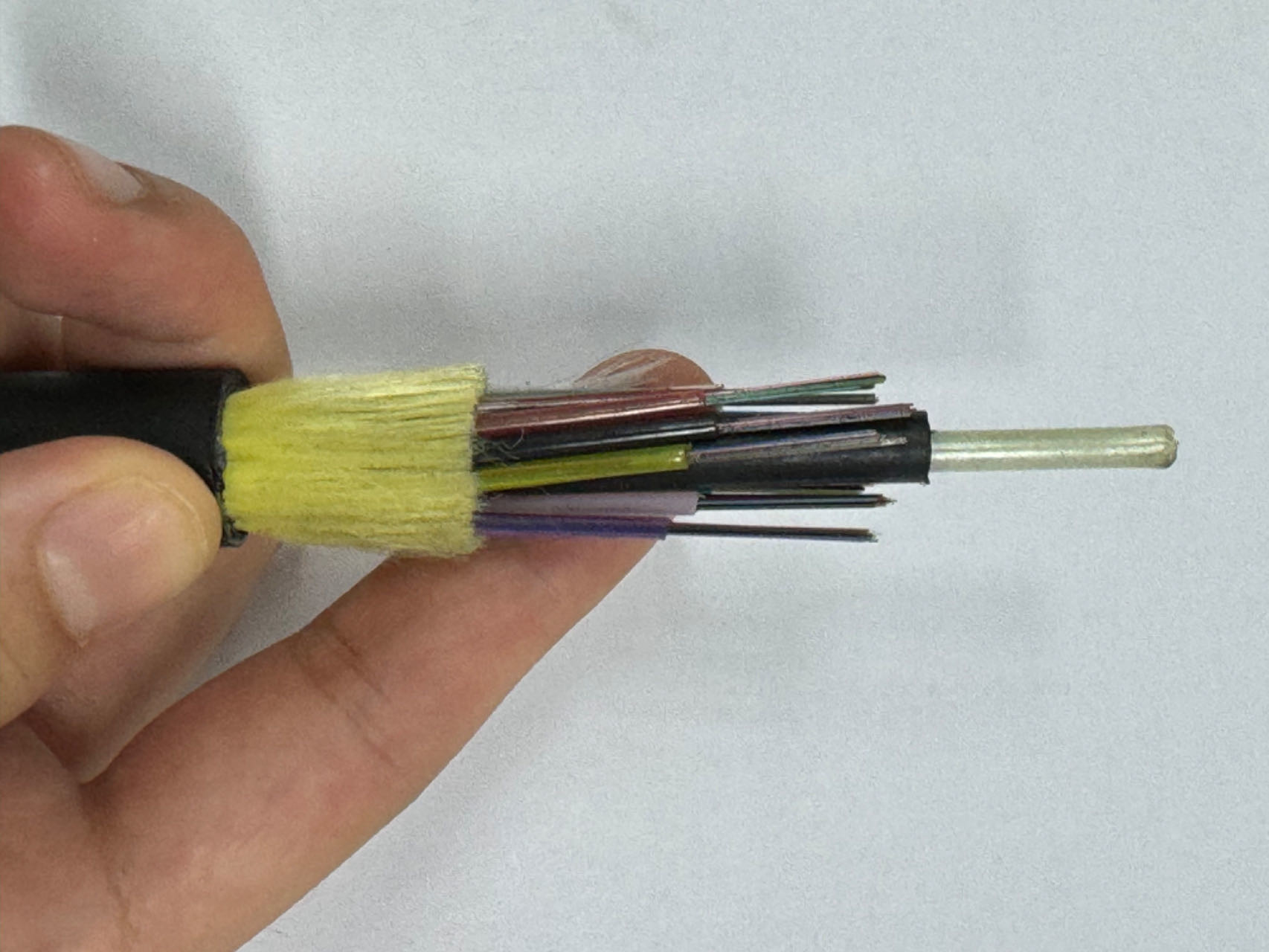

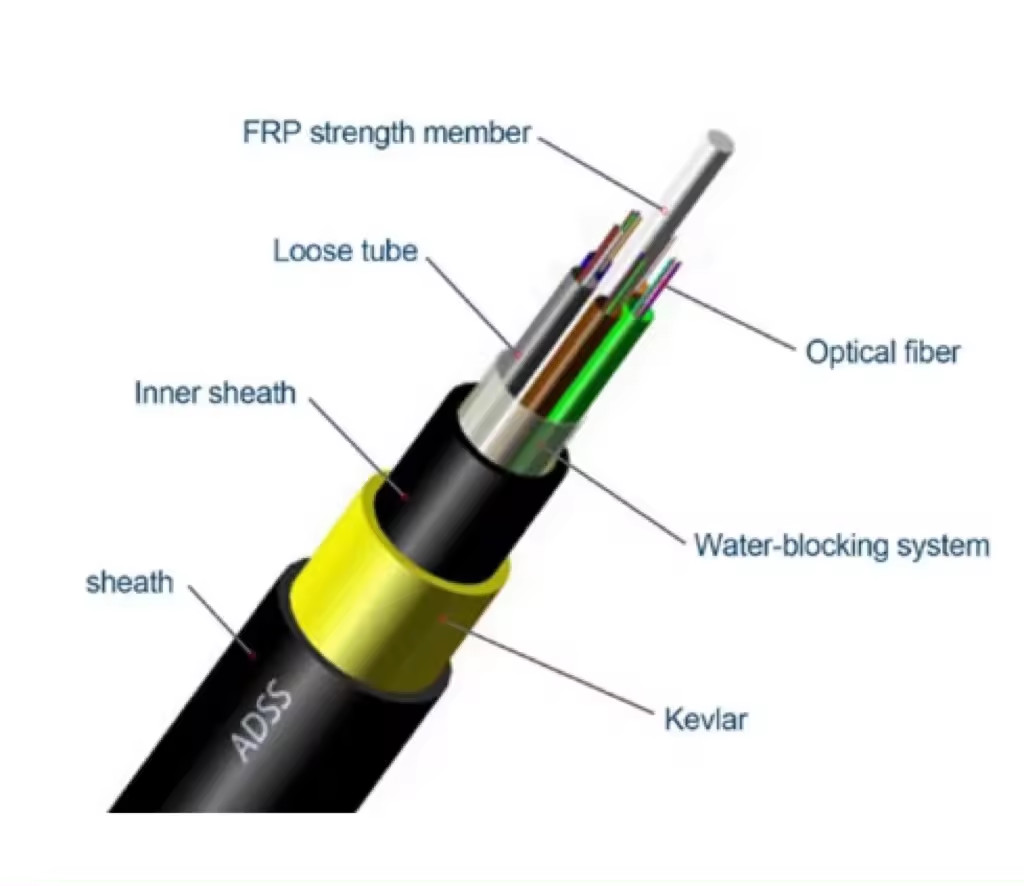

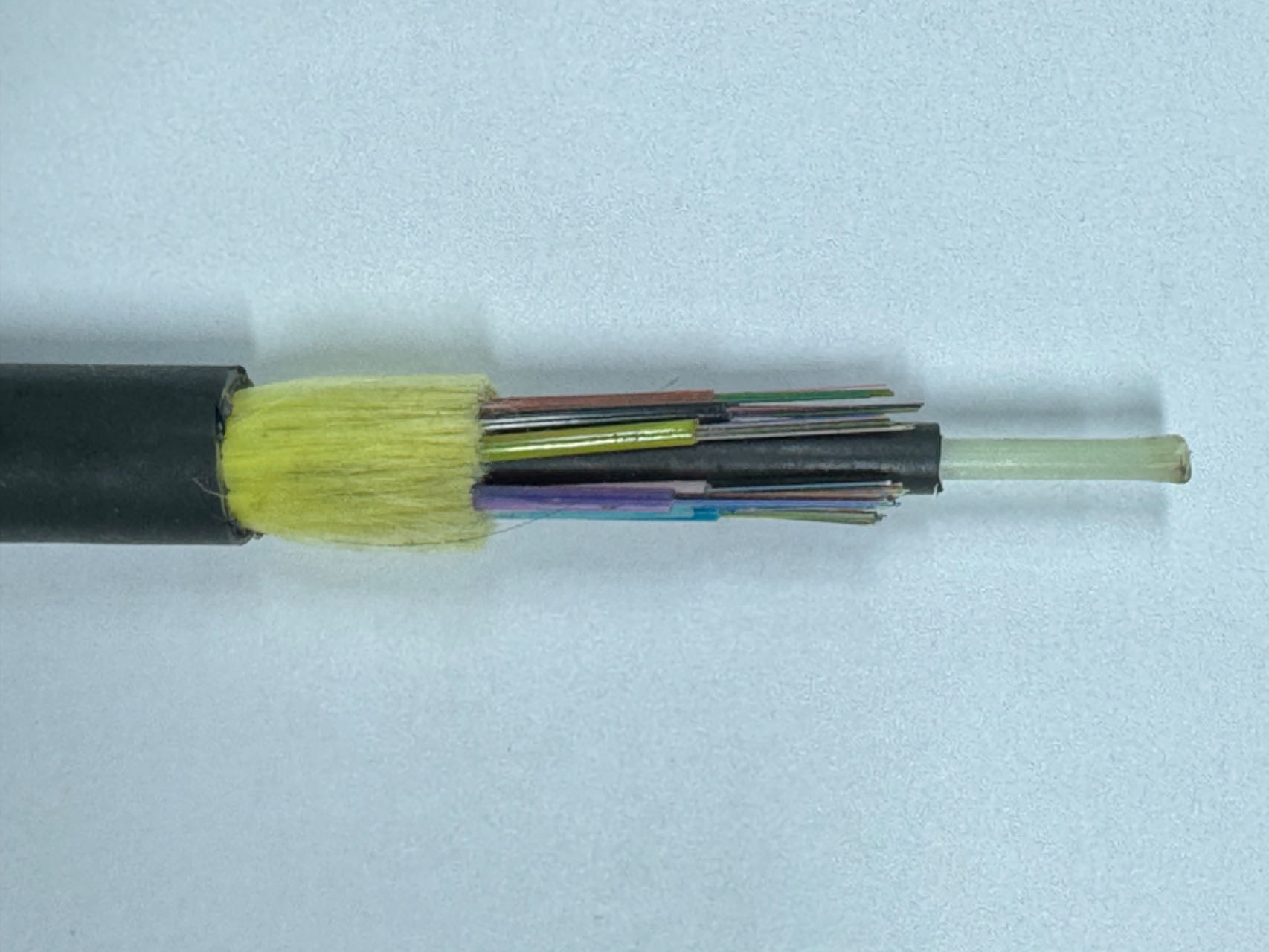

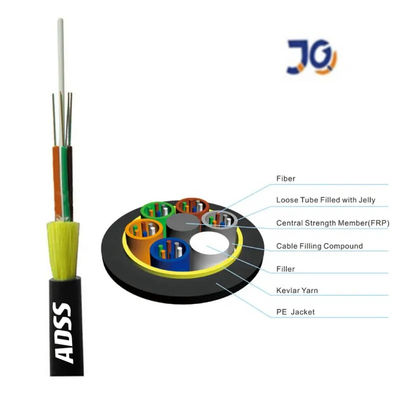

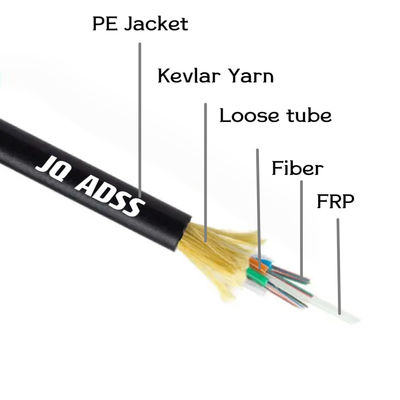

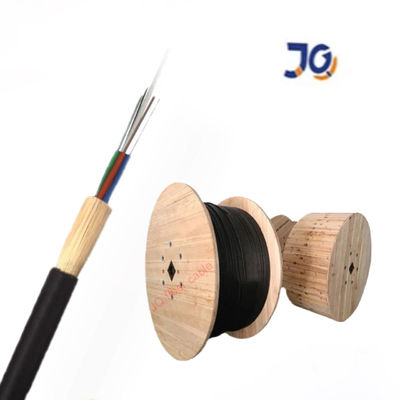

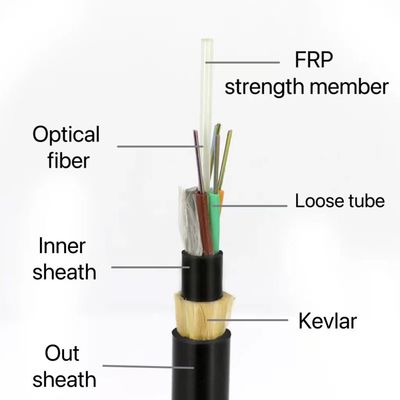

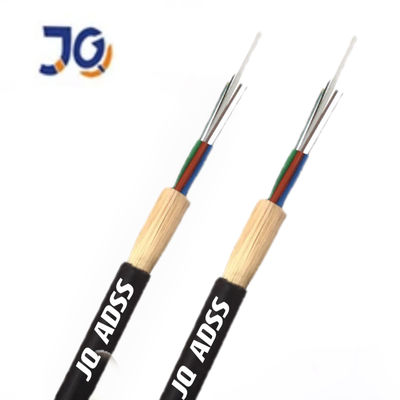

ADSS cable is loose tube stranded. The fibers, 125μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a FRP as a non-metallic strength member into a compact and circular cable core,and the cable core is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube, water-blocking material is applied to keep the cable compact and watertight. Final the cable is completed with a polyethylene (PE) or AT outer sheath.Product Description:
• All-dielectrical self-supporting aerial fiber optic cable, no metal material in the structure, can be set up without interruption.
• Large number of fiber cores, light weight, can be laying with the power line, saving resources.
• Small thermal expansion, the variation of the arc of the cable line is small when the temperature changes greatly.

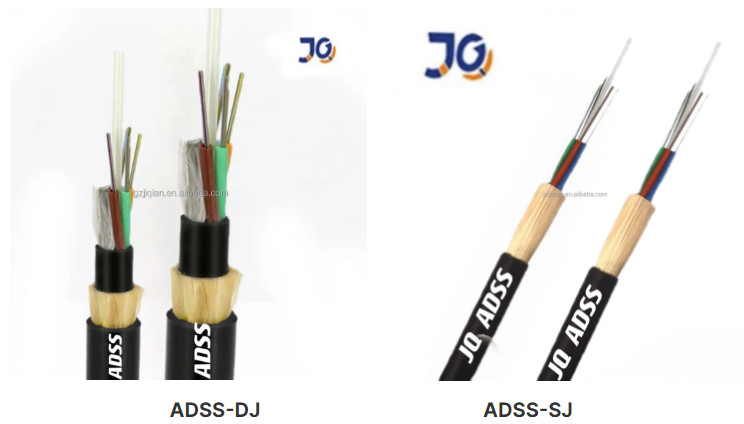

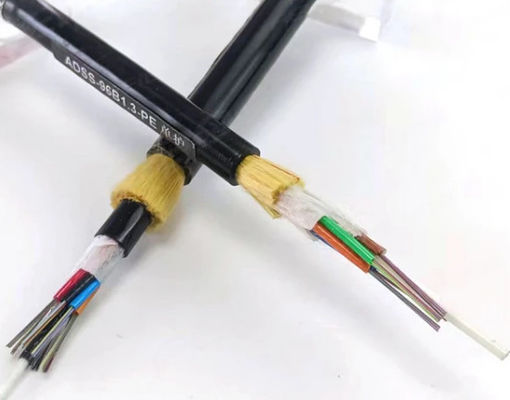

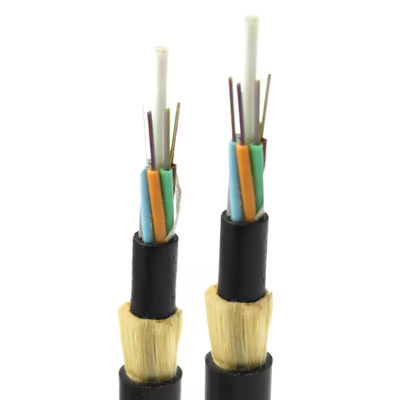

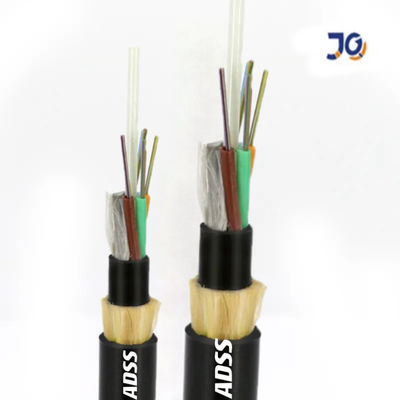

• Can make single jacket or double jacket
• Large span, the maximum span exceeds 1000 meters
• Life expectancy greater than 30 years
Specification:
| item | value |
| Model Number | ADSS |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Cable type | Outdoor All dielectric self-supporting aerial cable ADSS |
| Cable Structure | FRP+aramid yarn+outher sheath |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber material | silicon dioxide |
| Fiber Type | G652D Single mode or as your request |
| Fiber color | Blue, Orange, Green, Brown,etc |
| Central strength member | FRP |
| Loose tube | Jelly filled |
| Loose Tube | Stranded Loose Tube |
| Loose tube Material | PBT |
| Water Blocking | Water Swell able Material |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Installation | Self-supporting aerial |
| Span | 150 meters |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
Optical Characteristics:
| G.655 | 50/125μm | 62.5/125μm | ||
| G.652 | ||||
| Attenuation | '@850nm | ≤3.0 dB/km | ||
| (+20℃) | '@1300nm | ≤1.0 dB/km | ||
| '@1310nm | ≤0.34 dB/km | ≤0.40 dB/km | ||
| '@1550nm | ≤0.21 dB/km | ≤0.23 dB/km | ||
| '@850nm | ≥500 MHz·km | |||
| '@1300nm | ≥1000 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | |||
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
