Self Supporting 48 Core Aerial Optical Fiber Cable Gytc8s
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GYFTC8S53 |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Loose Tube: | PBT |
| Jacket: | PE Or As Your Request | Strength Member: | Steel Wire |
| Armoured: | Steel Tape | Package: | Wooden Drum/Customized |
| Application: | Aerial,Overhead | Oem: | Available |
| High Light: | Outdoor Single Mode Fibre Cable,GYFTC8S53 Single Mode Fibre Cable |
||
Product Description
Product Description

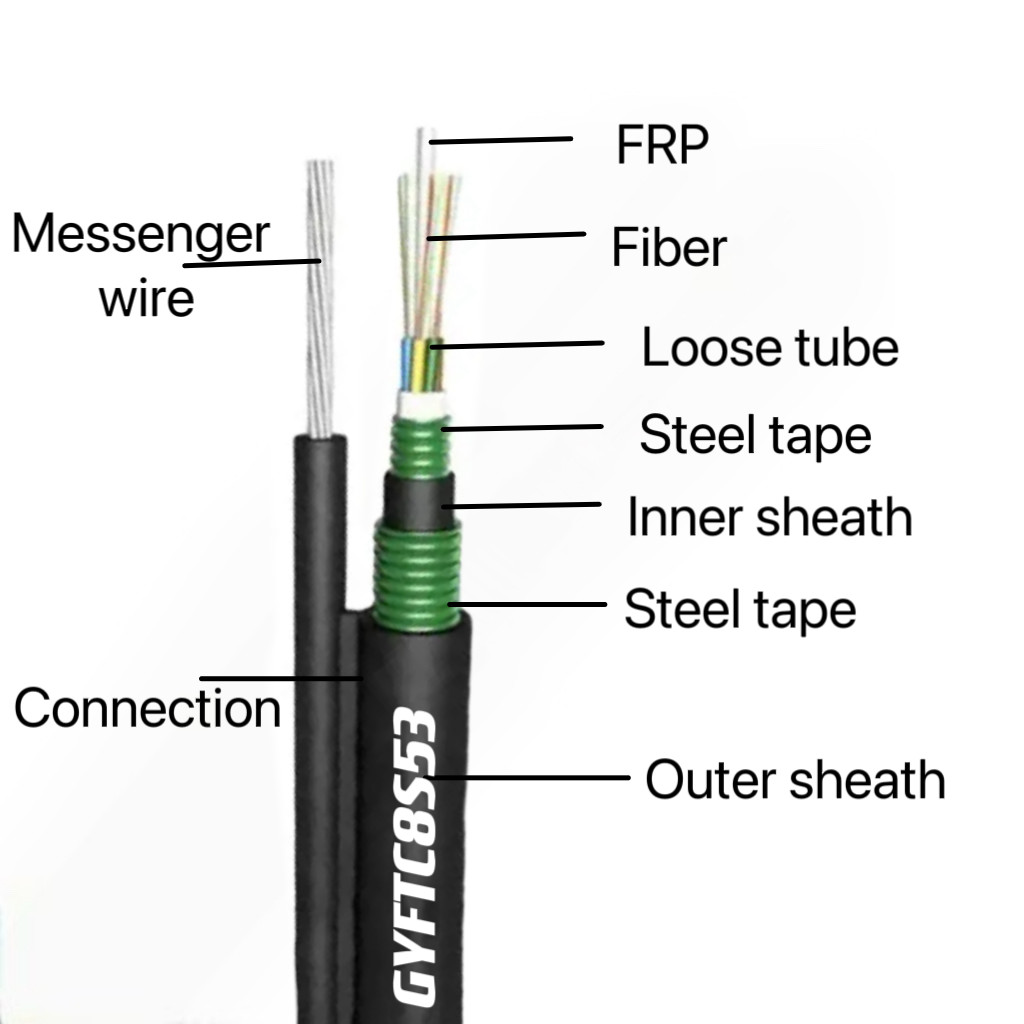

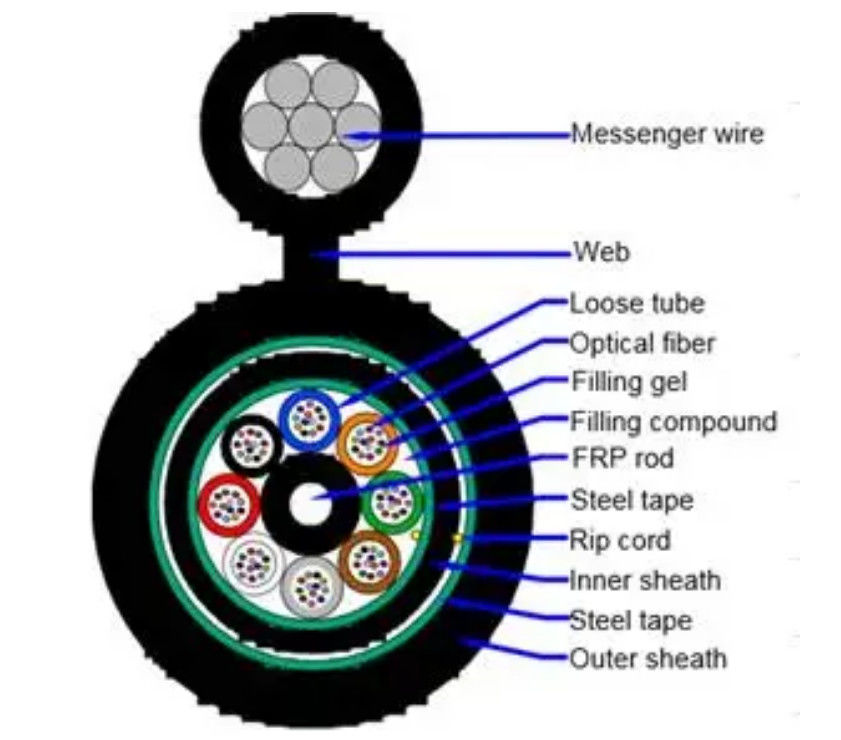

■ Loosen tube stranding,
■ Metal strength member,
■ Flooding jelly compound,
■Dual steel tape armored ,
■Dual PE sheath,
■"8" layer
Characteristics:
■ Low dispersion and attenuation.
■ Proper design, precise control for fiber excess length and distinct stranding process.
■ render the cable excellent mechanical and environmental properties.
■ With small cable diameter, light cable weight, easily to lay.
■ The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance.
* Long-distance backbone network.
* Urban ring network.
* Access Network, FTTX.
* Relay between communication machine rooms.
* Building cable in integrated wiring.
| item | value |
| Model Number | GYFTC8S53 |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Structure | multi loose tube |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Loose tube | Jelly filled |
| Loose tube | PBT |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Application | Aerial,Overhead |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation | @850nm | ≤3.0dB/km | ≤3.3dB/km | ||
| (+20℃) | @1300nm | ≤1.0dB/km | ≤1.0dB/km | ||
| @1310nm | ≤0.34dB/km | ≤0.40dB/km | |||
| @1550nm | ≤0.21dB/km | ≤0.23dB/km | |||
| Bandwidth | @850nm | ≥500MHZ·km | ≥200MHZ·km | ||
| @1300nm | ≥500MHZ·km | ≥500MHZ·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off | ≤1260nm | ≤1450nm | |||
| Wavelength λcc |
| Items | Unit | Specifications |
| Tension(Long Term) | N | 600 |
| Tension(Short Term) | N | 1500 |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Installation Temperature | ºC | -20~+60 |
| Operating Temperature | ºC | -40~+70 |
| Storage Temperature | ºC | -40~+70 |
