OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | MGXTSV/MGTSV |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Loose Tube: | PBT |
| Central Strength Member: | Steel Wire | Armoured: | Steel Tape Armoured |
| Jacket: | LSZH PE MDPEor As Your Request | Package: | Wooden Drum/Customized |
| Application: | Outdoor Aerial And Duct | Oem: | Available |
| High Light: | Explosion proof Optical Fiber Cable,Flame Retardant Optical Fiber Cable |
||
Product Description
Product Description:

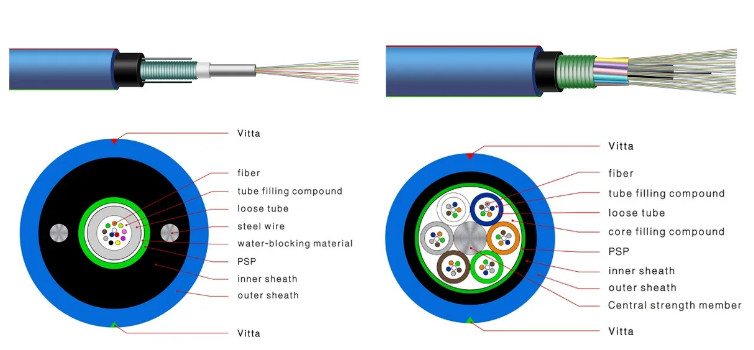

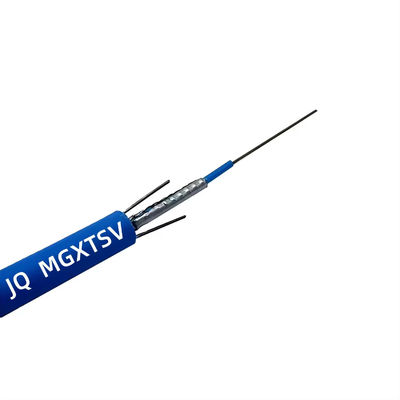

Unitube Mining Falme-retardant Cable:

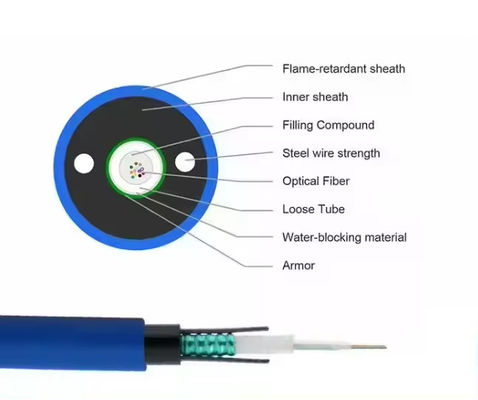

The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are
filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally.
Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and
watertight. Two parallel steel wires are placed at the two sides of the steel tape.The cable is completed
with a flame-retardant sheath.

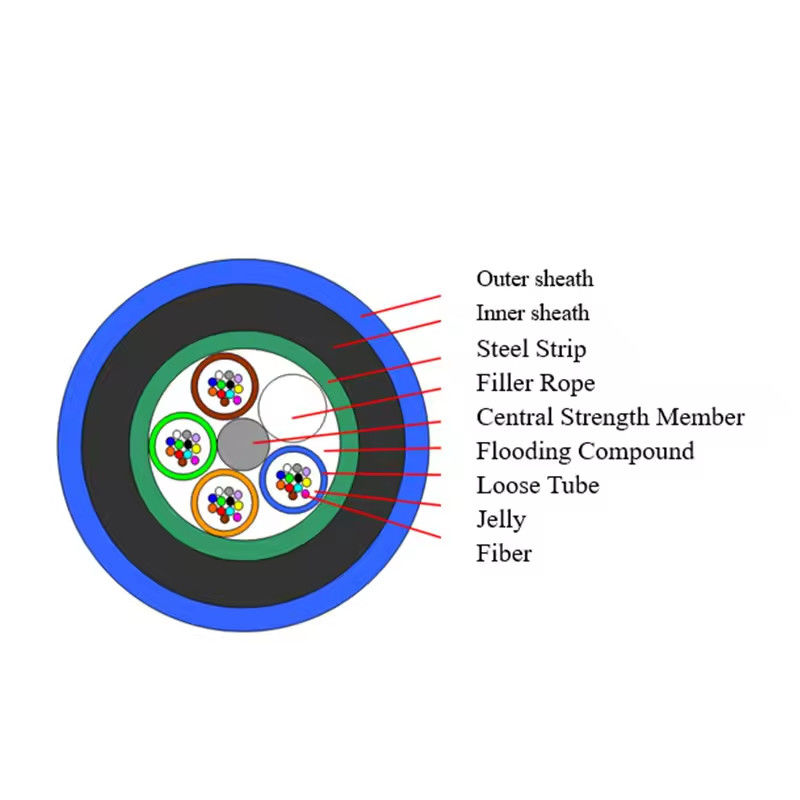

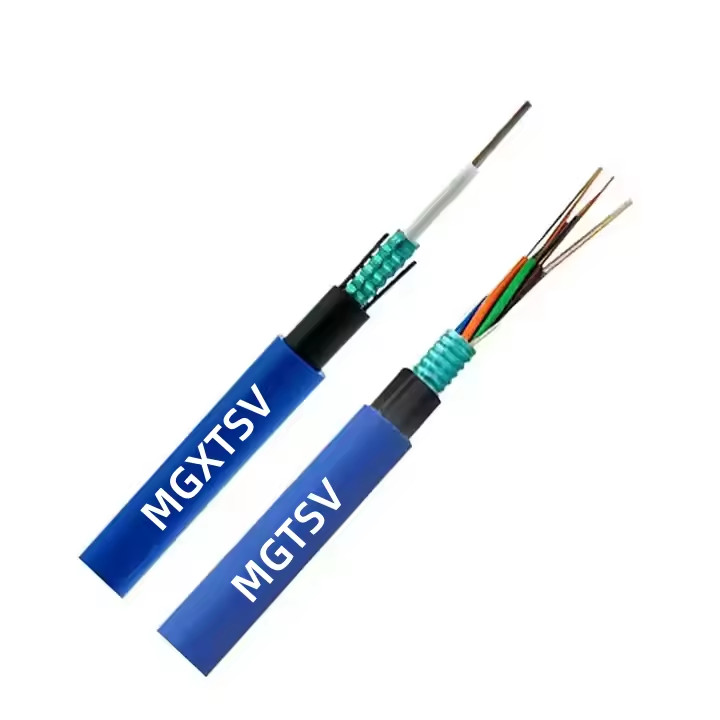

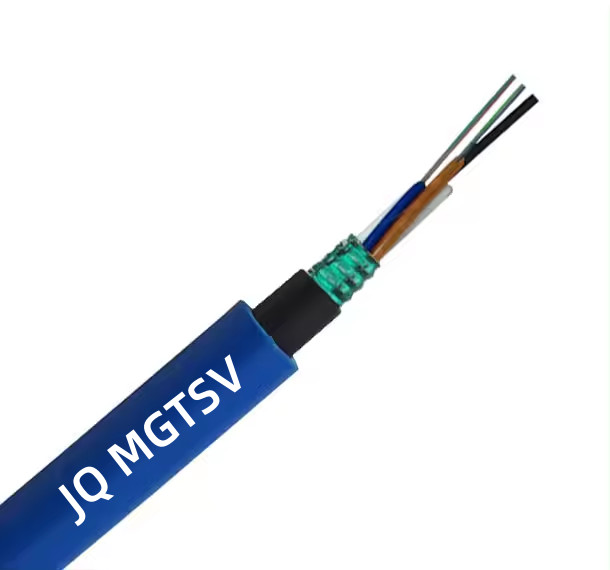

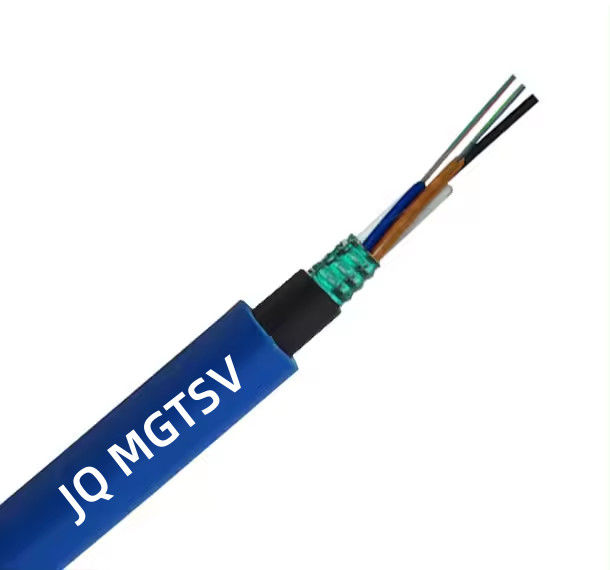

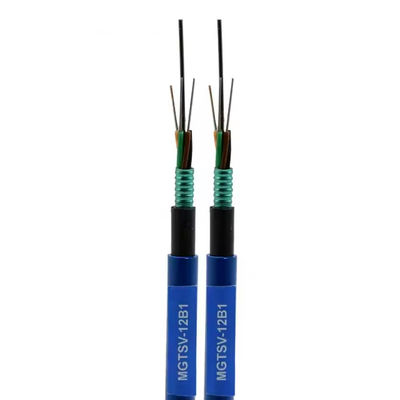

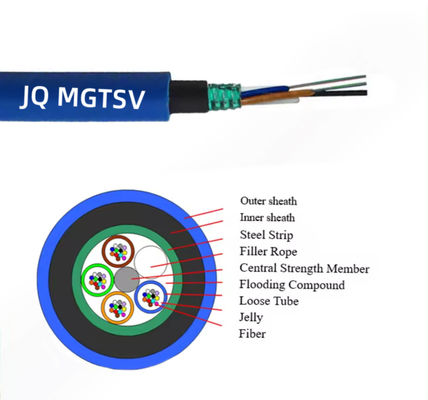

The structure of MGTSV fiber cable is by inserting a 250μm fibers into a loose tube made of a high-modulusmaterial filled with a waterproof compound. The center of the MGTSV is a steel wire as a metal strength member. The loose tube (and the filling rope) is twisted around the center strength member to form a compact and round cable core. The MGTSV optical fiber cable use for coal mine with armored-steel tape and double PE jacket.
Characteristics:
· Blue flame retardant PVC sheath, with good flame retardant characteristics;
· Anti-tensile, anti-wear, anti-flattening, anti-impact, repeated bending, twisting, bending (bending Angle not exceeding 90°), shooting, etc., with good mechanical properties;
· Stable temperature cycle, complete sheath, anti-seepage water drip, flame retardant and other good environmental performance;
· Precisely controlled fiber length and cable stranding pitch ensure excellent tensile properties and temperature characteristics of the cable;
· Life expectancy is greater than 30 years.
· Light weight, small cable length, small load on the pole.
Application:
■Adapted to Outdoor distribution.
■Suitable for aerial pipeline laying method.
■Long-distance telecom, LAN in high-voltage area or access to telecom network.
■Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
■Recommended layings methods: High-voltage area, Aerial.
| item | value |
| Model Number | MGTSV |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Loose tube | Jelly filled |
| Loose Tube Material | PBT |
| Armoured | Steel tape |
| Outer Sheath | LSZH LSOH PE MDPE |
| Cable Structure | Multi-Loose Tube Steel Tape armor |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Installation | aerial, in duct |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |

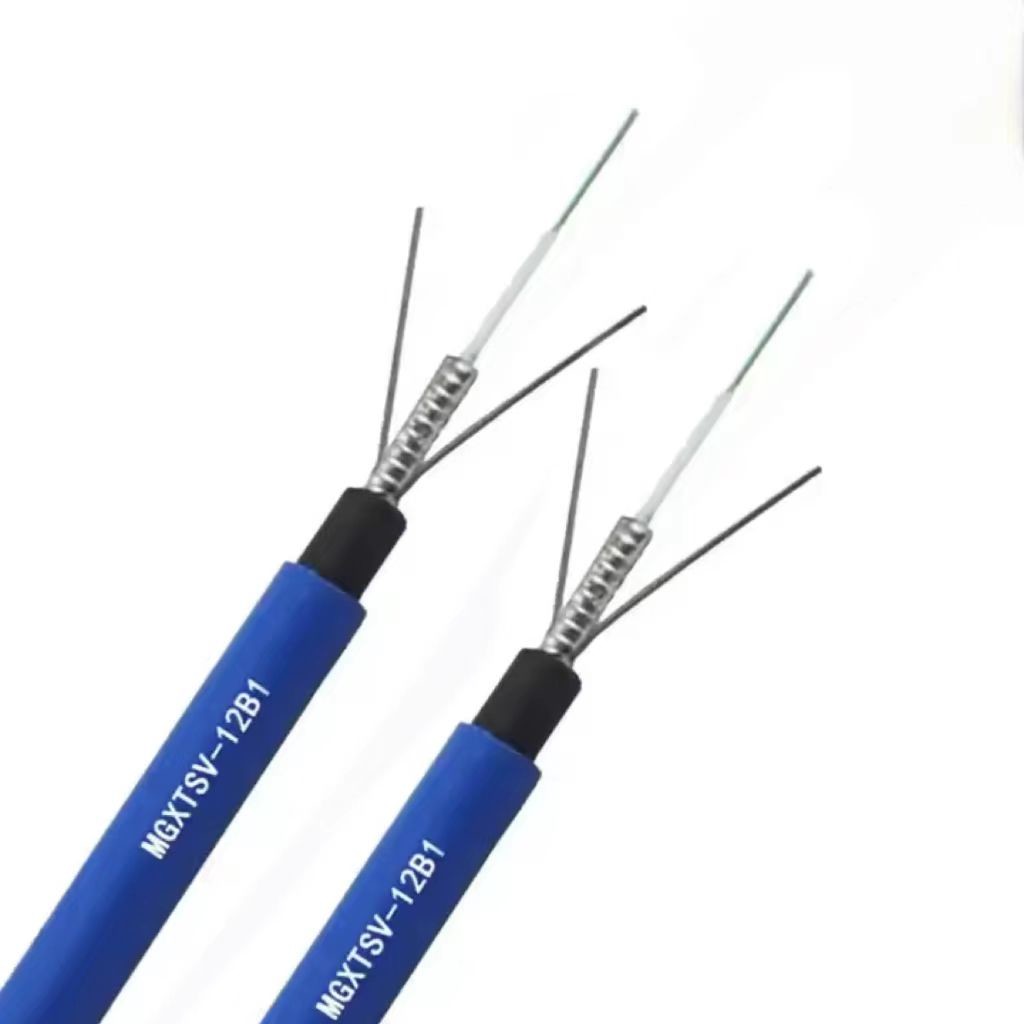

| No. of cable | MGXTSV-12B1.3 | |
| Fiber Model | G.652D | |
| Strength Member | Material | Steel wires |
| Diameter(±0.05)mm | 1MM | |
| Loose Tube | Material | PBT |
| Diameter(±0.06)mm | 1.85 | |
| Thickness(±0.03)mm | 0.35 | |
| The Max.Core NO./Tube | 12 or 24 | |
| Outer Sheath | Material | PE |
| Cable Diameter(±0.2)mm | 8MM | |
| Cable Weight(±5)kg/km | 78 | |
| Min. bending radius | Without Tension | 10.0×Cable-φ |
| Under Maximum Tension | 20.0×Cable-φ | |
| Temperature range | Installation | -20~+60 |
| (℃) | Transport&Storage | -40~+70 |
| Operation | -40~+70 | |
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
| Attenuation | 850 nm | <3.0 dB/km | <3.3 dB/km | ||
| (+20X) | 1300 nm | <1.0 dB/km | <1.0 dB/km | ||
| 1310 nm | <0.34 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.21 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm |
| cable countr | out sheath diameter | Weight | Minimum allowable Tensile strength(N) | Minimum | Min bending radius(MM) | |||
| (MM) | (KG) | allowable Crush load(N/100mm) | ||||||
| Short term | Long term | Short term | long Term | short term | long Term | |||
| 2-36 | 12.8 | 170 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 38-72 | 14.2 | 212 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 74-96 | 15.7 | 245 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 98-120 | 17.3 | 289 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 122-144 | 18.8 | 328 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
