4 6 8 12 24 cores GYXTZW Unitube Flame-retardant Cable singlemode outdoor fiber optic cable LSZH Jacket

1 Kilometer
MOQ
4 6 8 12 24 cores GYXTZW Unitube Flame-retardant Cable singlemode outdoor fiber optic cable LSZH Jacket
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: GYXTZW
Type: Outdoor Fiber Optic Cable
Place Of Origin: Guangdong, China
Number Of Conductors: ≥ 10
Fiber Type: G652D Single Mode Or As Your Request
Length: As Required
Color: Customized
Tube: Central Loose Tube
Outer Sheath: LZSH
Central Strength Member: Steel Wire
Package: Wooden Drum/Customized
Application: Outdoor Aerial And Duct
Oem: Available
Highlight:

6 GYXTZW Unitube Flame-retardant cable

,

4 GYXTZW Unitube Flame-retardant cable

,

24 cores GYXTZW Unitube Flame-retardant cable

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: JQ/OEM
Certification: CE/ISO9001
Model Number: GYXTZW
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 2-5days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 8000 kilometers per month
Product Description

Product Description:

The fibers , 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistantfilling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blockingmaterial is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steeltape. The cable is completed with a flame-retardant sheath.

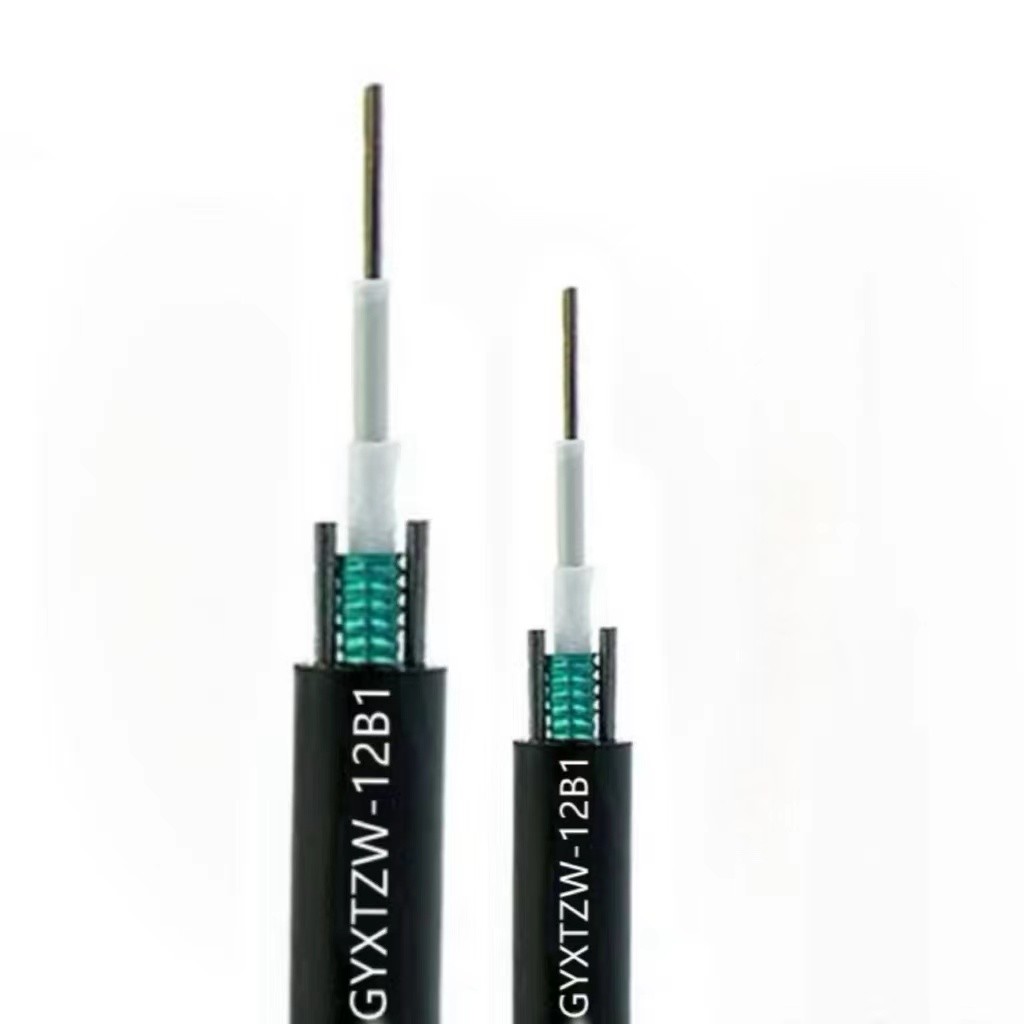

4 6 8 12 24 cores GYXTZW Unitube Flame-retardant Cable singlemode outdoor fiber optic cable LSZH Jacket 0





Characteristics:

1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. The following measures are taken to ensure the cable watertight
4. PE sheath protects cable from ultraviolet radiation
5. 100% cable core filling
6. APL moisture barrier

Application:

Usable in Duct / Aerial

Suitable for communication between bureaus, metropolitan network, access network

■Especially suitable for the situation where high-density fibers is expected.

Specification:

item value
Model Number GYXTZW
Type Outdoor Fiber Optic Cable
Place of Origin Guangzhou,China
Brand Name Haiso/jiqian
Structure parallel steel wire+steel tape+outer sheath
Number of Conductors ≥ 10
Fiber type G652.D
Fiber single mode
Filling compound Jelly
Tube Central loose tube
strength member steel wire
Material of jacket LSZH
Color Customized
Package Fumigation free wooden drum/Customized
Operating/Storage Temperature - 40 ~ 70 ℃
Application Outdoor aerial and duct
Certificate CE/ROHS/ISO9001

Structure and Technical Specifications:
Fiber Count Nominal Diameter Nominal Weight Allowable Tensile Load Allowable Crush Resistance
(mm) (kg/km) (N) (N/100mm)
    Short Term Long Term Short Term Long Term
2~12 7.8 60 1500 600 1500 600
14~24 8.5 85 1500 600 1500 600

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

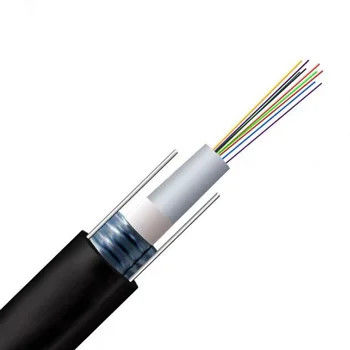

4 6 8 12 24 cores GYXTZW Unitube Flame-retardant Cable singlemode outdoor fiber optic cable LSZH Jacket 14 6 8 12 24 cores GYXTZW Unitube Flame-retardant Cable singlemode outdoor fiber optic cable LSZH Jacket 2

WHY CHOOSE US:

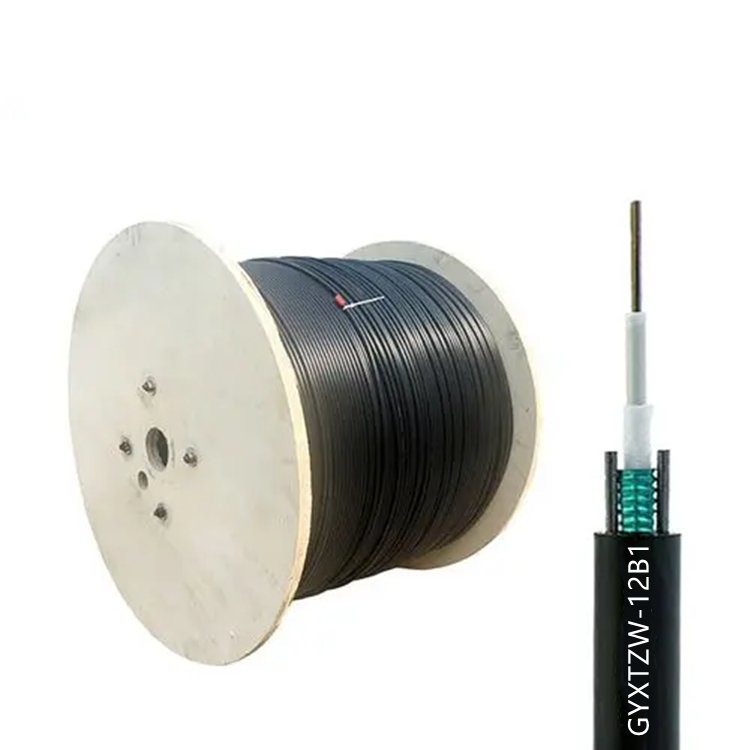

4 6 8 12 24 cores GYXTZW Unitube Flame-retardant Cable singlemode outdoor fiber optic cable LSZH Jacket 3

Certification:

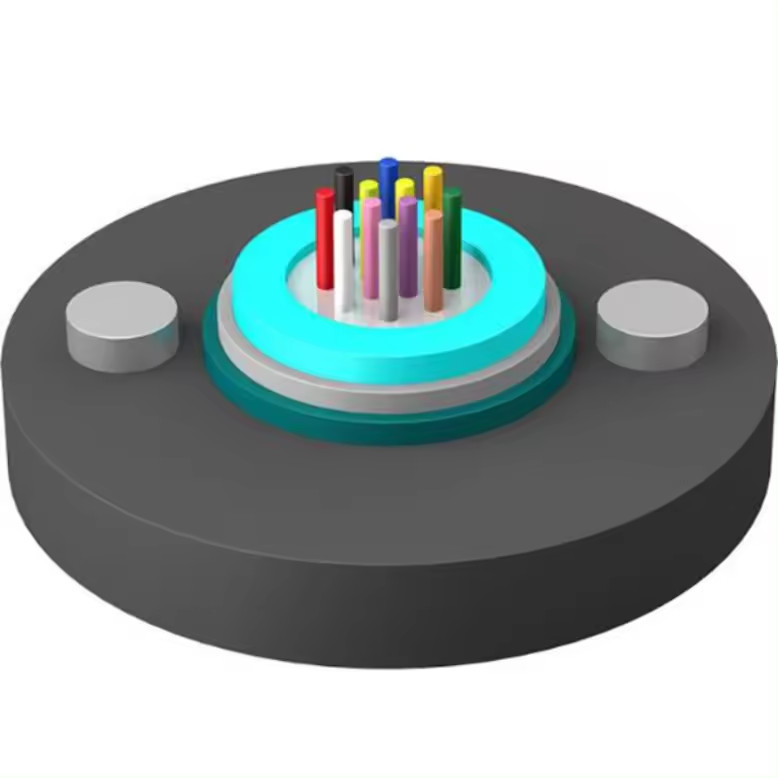

4 6 8 12 24 cores GYXTZW Unitube Flame-retardant Cable singlemode outdoor fiber optic cable LSZH Jacket 4

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

5.MOQ: what is your minimum quantity?
-MOQ : 1KM
6.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.
7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
8.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
We Support OEM and Customize products.
Welcome to your inquiry! Welcome to visit our facotry!
Contact me at WhatsAapp +86 19120308386 to get free sample.
