Custom Outdoor Photoelectric Optical fibre Composite cable 8 core +2 x 1.0 electrical copper wire power cable

Minimum Order Quantity : 1KM Price : 200-900USD/KM
Packaging Details : wooden drum Delivery Time : 3-5 days, it depends on your quantity
Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram Supply Ability : 60000KM/month
Place of Origin: Guangdong,China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: custom

Detail Information

Fiber Count: 2-288Core Warranty: 25 Years
MOQ: 1KM OEM: Yes
Amoured: Yes Length: 1/2/3/4/5KM
Feature: Fiber + Power Cable
High Light:

8 core Outdoor Fiber Optic Cable

,

Custom Outdoor Fiber Optic Cable

Product Description

Custom Outdoor Photoelectric Optical fibre cable Composite cable 8 core +2 x 1.0 power cable plus cable



Application

1.Used in outdoor applications that require both optical fiber and copper wire elements for communication and power 2.Copper wire can power remote electronics used in fiber optic communications 3.Copper wire can also be used for low data rate data transmission 4.Deployable cables have been used in network and private broadcast applications around the world 5.Cables can be designed for your custom applications

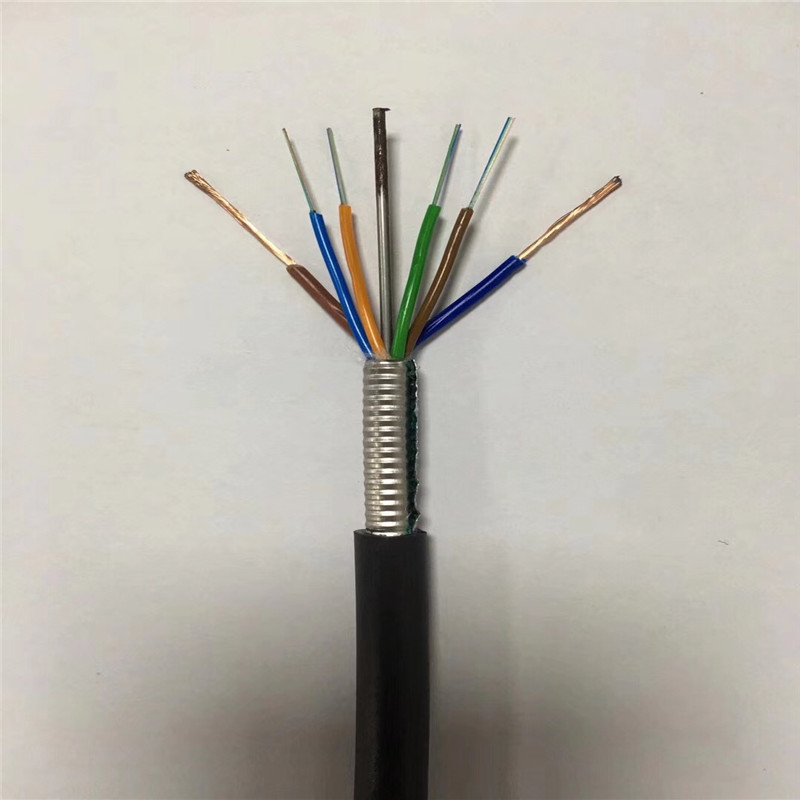

Custom Outdoor Photoelectric Optical fibre Composite cable 8 core +2 x 1.0 electrical copper wire power cable 0

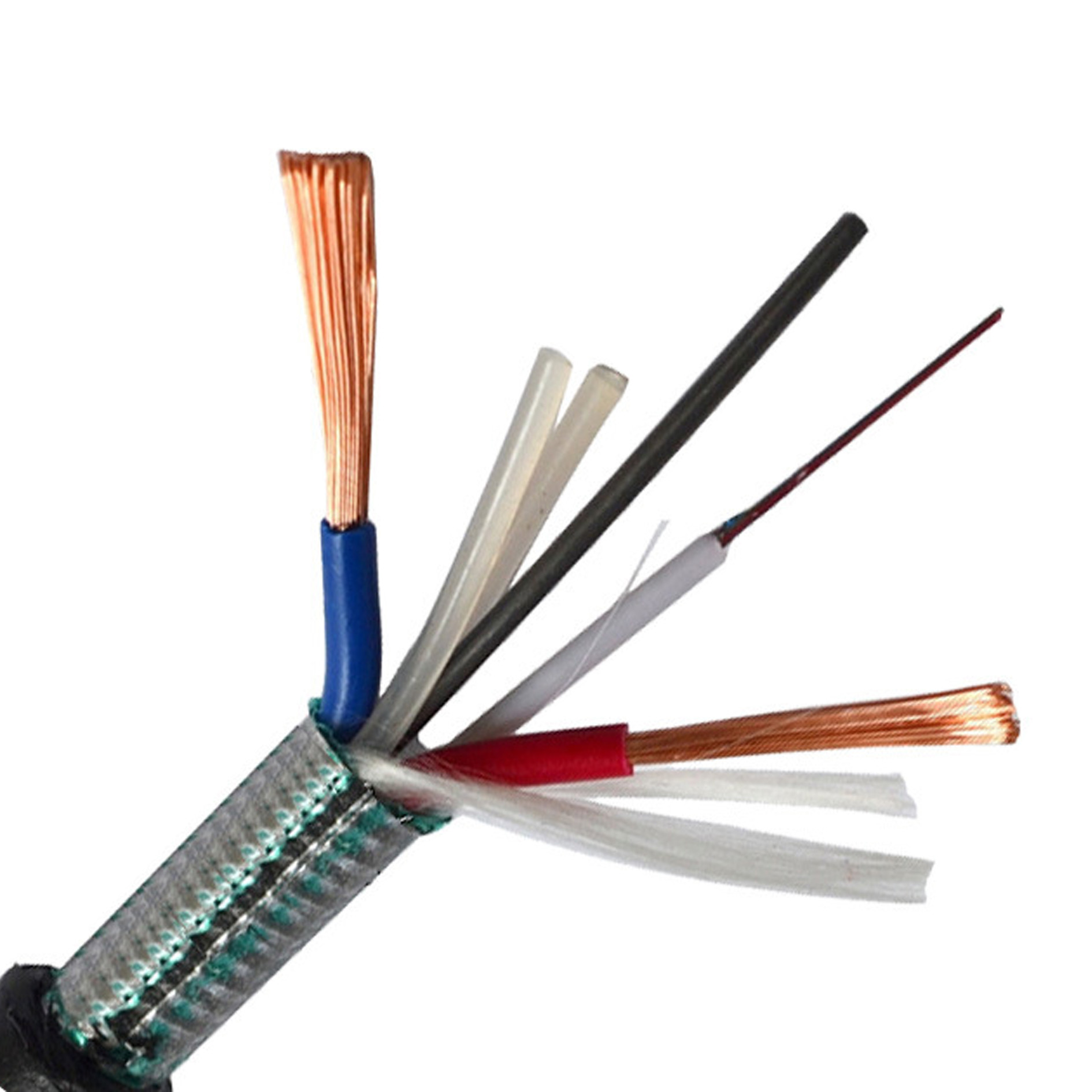

Custom Outdoor Photoelectric Optical fibre Composite cable 8 core +2 x 1.0 electrical copper wire power cable 1
Characteristics:
(1) Short outer diameter, light weight, small space usage(usually a series of problems can be solved with multiple cables, which
can be replaced by a compound cable);

(2) low procurement costs, low construction costs and low network construction costs;

(3) it has excellent bending performance and good side pressure resistance, and is convenient for construction;

(4) it also provides multiple transmission technologies, with high adaptability to equipment, strong expansibility and wide
application scope;

(5) provide huge bandwidth access;

(6) save cost, use optical fiber as a reservation for household, and avoid secondary wiring;

(7) to solve the problem of equipment power consumption in network construction (to avoid redundant power supply lines).

Specification
Product Name
Custom Outdoor Photoelectric Optical fibre cable Composite cable 8 core +2 x 1.0 power cable plus cables
Fiber Count
4-288 Fibers,can be customized according to customers' requirement
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
PE
Application
overhead,aerial,duct,high-voltage area, thunder areas and high electromagnetic interface
Cable Length
1km,2km,3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-40℃ to +70℃
Color
usually black,can be customized
OEM
YES
Fiber Parameter
Item
Unit
Specification
Fiber Type
G. 652
Mode field diameter
1310nm
μm
9.2 ± 0.4
1550nm
μm
10.4 ± 0.8
Cladding diameter
μm
125.0 ± 1
Cladding non-circularity
%
≤1.0
Core/cladding concentricity error
μm
≤0.5
Coating diameter
μm
242 ± 7
Coating/cladding concentricity error
μm
≤12
Cable cut-off wavelength
nm
≤12
Attenuation Coefficient
1310nm
dB/km
≤0.36
1550nm
dB/km
≤0.22
Proof stress level
kpsi
≥100
Related Products

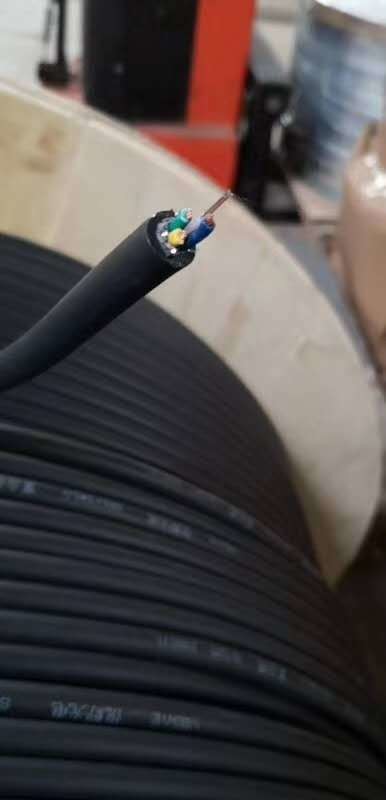

Custom Outdoor Photoelectric Optical fibre Composite cable 8 core +2 x 1.0 electrical copper wire power cable 2
Custom Outdoor Photoelectric Optical fibre Composite cable 8 core +2 x 1.0 electrical copper wire power cable 3
Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

Packing & Delivery
Custom Outdoor Photoelectric Optical fibre Composite cable 8 core +2 x 1.0 electrical copper wire power cable 4
Custom Outdoor Photoelectric Optical fibre Composite cable 8 core +2 x 1.0 electrical copper wire power cable 5
Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
