Stranded Loose Tube Figure 8 Shape Self-Supporting Single Mode OS2 Optical Fiber Cable, GYTC8S

Product Description

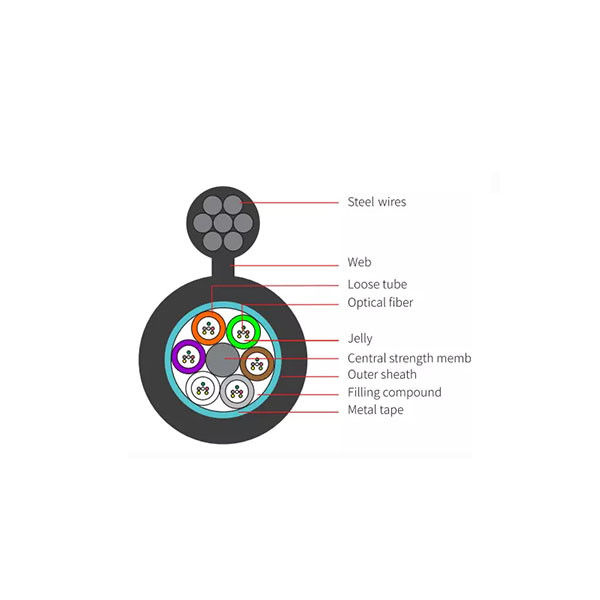

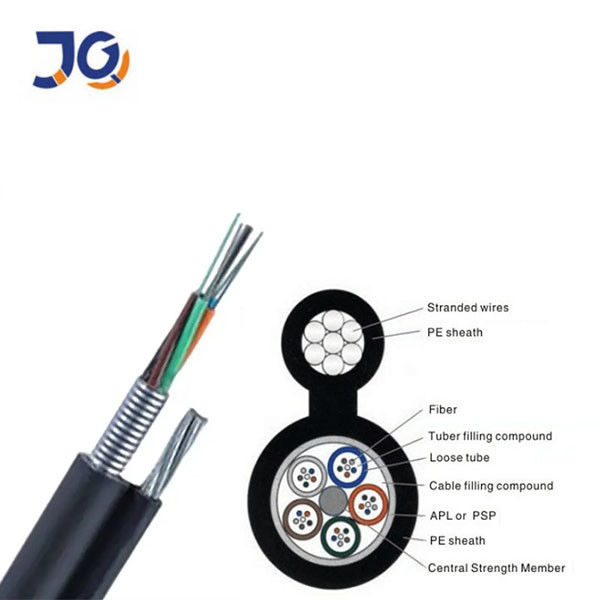

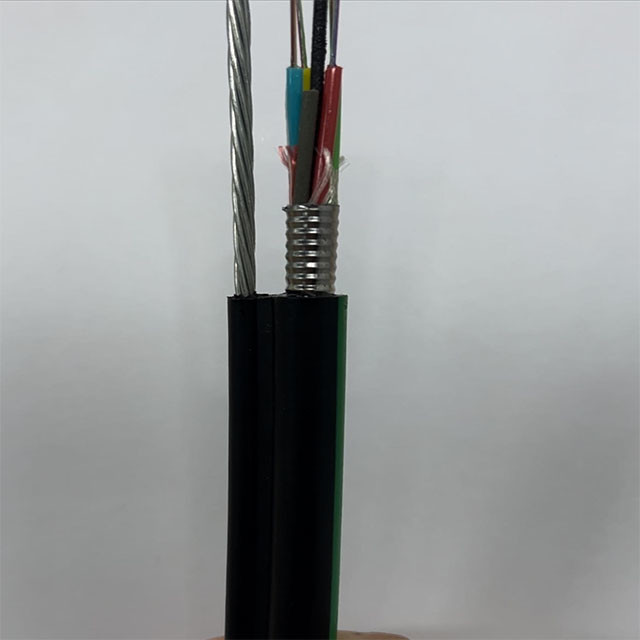

GYTC8S Figure 8 Cable With Steel Tape in the GYTC8S Cable,single mode/multimode fibers are positioned in the loose tubes,while the loose tubes strand together around metallic central strength member into a compact and circular cable core,and the water -blocking materials are distributed into interstices of it,After a PSP is applied around the cable core,this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure 8 structure

Application: Self-supporting Aerial



1. High performance optical network operating



2.High speed optical routes in buildings(FTTX)



3.All types of fiber cables with different structures





Feature:

1. Low purchasing and construction costs

2. Soft and flexible, good bending performance

3. Simple structure, compact and lightweight, and high practicability

4. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property



Temperature Range



Operating:-40°C to 70°C Storage:-40°C to 70°C





Fiber Optic G652D



Parameter	Specification
MFD (1310nm)	9.2±0.4 um
MFD (1550nm)	10.4±0.8 um
Cladding diameter	125±1.0um
Fiber diameter	235~255um, with UV coating, and colored to : 250±15um
Core/cladding concentricity error	≤ 0.5um
Coating/cladding concentricity error	≤ 12.0um
Cladding non circularity	≤ 1.0%
Cut off wavelength	λcc ≤1260nm
Attenuation coefficient	1310nm: 0.35dB/km max after cabling 1550nm: 0.21dB/km max after cabling
Bending-loss performance of optical fiber @1310nm&1550nm	≤0.05dB (100 turns around a mandrel of 50mm diameter)
Polarization mode dispersion maximum individual fibre	≤0.2ps/√km
Polarization mode dispersion link value	≤0.1ps/√km
Zero-dispersion wavelength	1300~1324nm
Zero-dispersion slope	≤0.092ps/nm2·km





Certification:





Company profile:

Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa



Exhibition:

FAQ:



1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10years history.

2.What is your fiber brand ?
Jiqian

3.Do you provide samples?is it free or charged?
Yes,samples are for free,just pay for freight

4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

5.What is your warranty period?
25-30 years for outdoor fiber optic cable

6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE

7.What is your delivery time?
Usually 5-7 working days

8.What is your payment way?
T/T, L/C, Western Union

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
