4 8 12 Core GYFXTH Unitube Glass Yarn Aramid yarn Non Metallic Optical Fiber Cable JET fibre optic cables

Minimum Order Quantity : 1 Kilometer Packaging Details : Wooden Drum
Delivery Time : 2-5days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Place of Origin: Guangdong,China Brand Name: JQ
Certification: CE/ISO9001 Model Number: GYFXTH

Detail Information

Model Number: GYFXTH Type: Outdoor Fiber Optic Cable
Place Of Origin: Guangdong, China Number Of Conductors: ≥ 10
Fiber Type: G652D Single Mode Or As Your Request Outer Sheath: PE Or As Your Request
Loose Tube Material: PBT Tube: Central Loose Tube
Cable Structure: Uni-Loose Tube Reinforced Glass Yarn Strengthen Length: As Required
Color: Customized Package: Wooden Drum/Customized
Oem: Available Application: Indoor/Outdoor Access Building
Certificate: ISO9001/CE/RoHS
High Light:

8 Core Unitube Glass Yarn Cable

,

4 Core Unitube Glass Yarn Cable

,

12 Core Unitube Glass Yarn Cable

Product Description

Product Description:

4 8 12 Core GYFXTH Unitube Glass Yarn Aramid yarn Non Metallic Optical Fiber Cable JET fibre optic cables 0 4 8 12 Core GYFXTH Unitube Glass Yarn Aramid yarn Non Metallic Optical Fiber Cable JET fibre optic cables 1

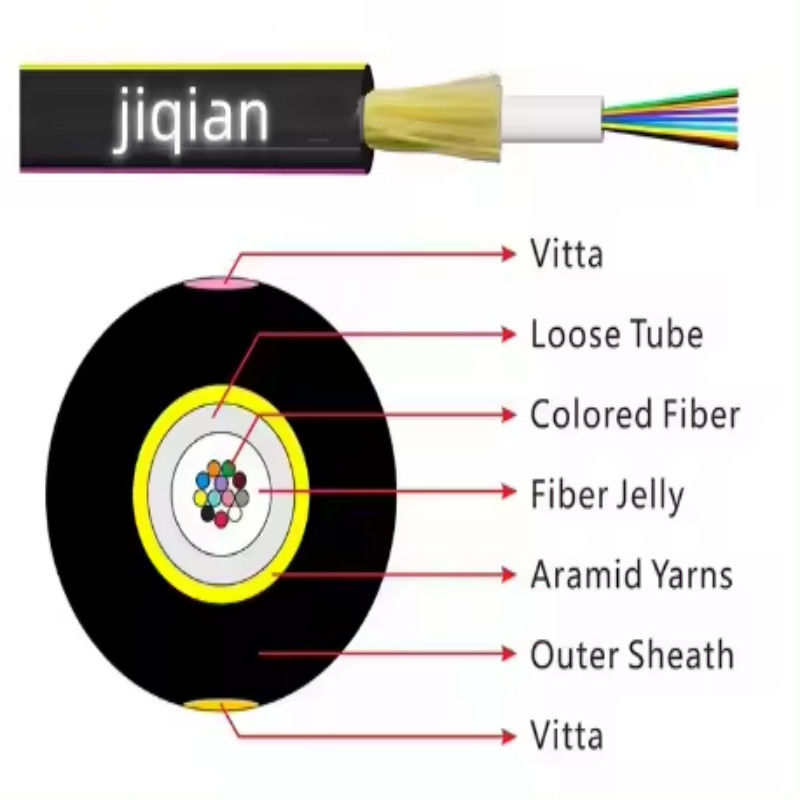

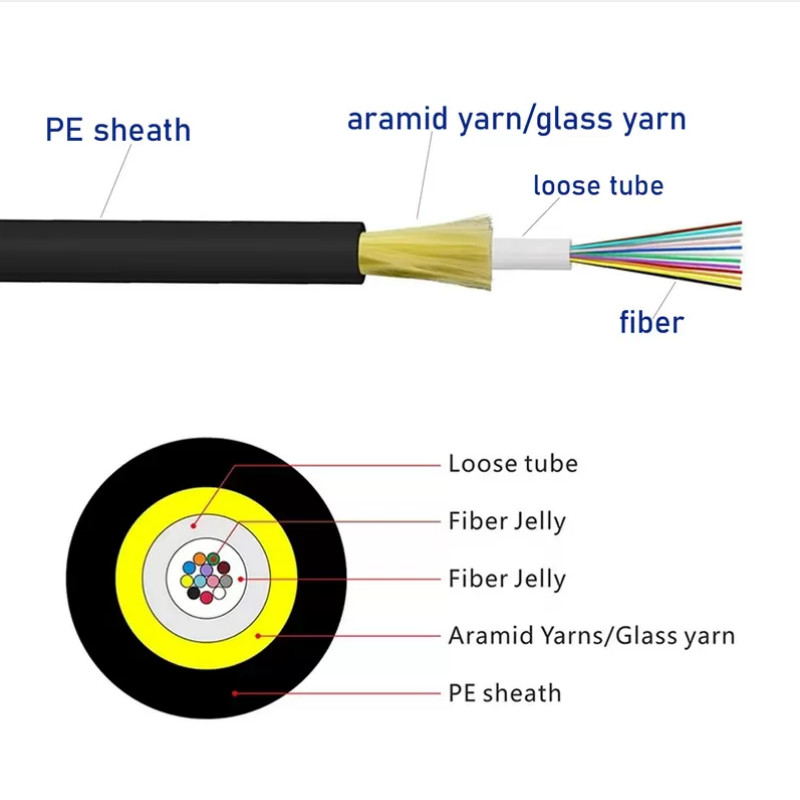

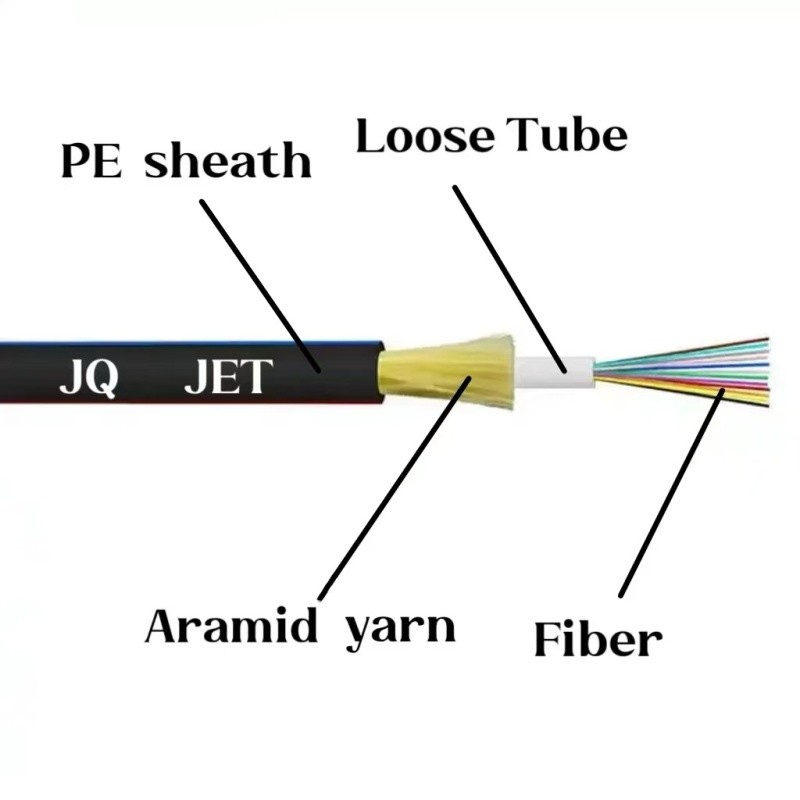

JET Fiber Optic Cable
■ PE sheath
Aramid Yarn or Glass Yarn
■ Uni tube
■ 1--24 core fiber
loose tube with jelly
Applications :
Duct, Aerial
FTTx, Access.

Specification:

Model Number
JET
Fiber count
2-12 Cores
Fiber Type
G652D or as your need
Structure
Central loose Tube
Jacket material
PE /HDPE/LSZH
Jacket color
Black or as your need
Loose tube Material
PBT or as your need
Armored or not
Non-armoure, aramid yarn or glass yarn strength member
Certification
CE/ROHS/ISO9001
Application
FTTH indoor outdoor
1310nm
≤0.34dB
1550nm
≤0.21dB
Package
Plywood drum
Operating environment:
- 40 ~ 60 ℃
Place of Origin
Guangdong, China


Structure and Technical Specifications:

Mechanical and Environmental Characteristics
Items
Unite
Specifications
Tension
(Long Term)
N
300
Tension
(Short Term)
N
800
Crush
(Long Term)
N/10cm
500
Crush
(Short Term)
N/10cm
1000
Min. Bend Radius(Dynamic)
mm
20D
Min. Bend Radius(Static)
mm
10D
Installation Temperature
-10~+60
Operating Temperature
-40~+60
Storage Temperature
-40~+60

WHY CHOOSE US:

4 8 12 Core GYFXTH Unitube Glass Yarn Aramid yarn Non Metallic Optical Fiber Cable JET fibre optic cables 2

4 8 12 Core GYFXTH Unitube Glass Yarn Aramid yarn Non Metallic Optical Fiber Cable JET fibre optic cables 3

Certification:

4 8 12 Core GYFXTH Unitube Glass Yarn Aramid yarn Non Metallic Optical Fiber Cable JET fibre optic cables 4

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

5.MOQ: what is your minimum quantity?
-MOQ : 1KM
6.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.
7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
8.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
We Support OEM and Customize products.
Welcome to your inquiry! Welcome to visit our facotry!
Contact me at WhatsAapp +86 19120308386 to get free sample.
