Customized GYXTW Armored 2 4 6 8 12 24 Core Single Mode Fiber Optic Cable 6mm 7mm 8mm With Messenger

1kilometer
MOQ

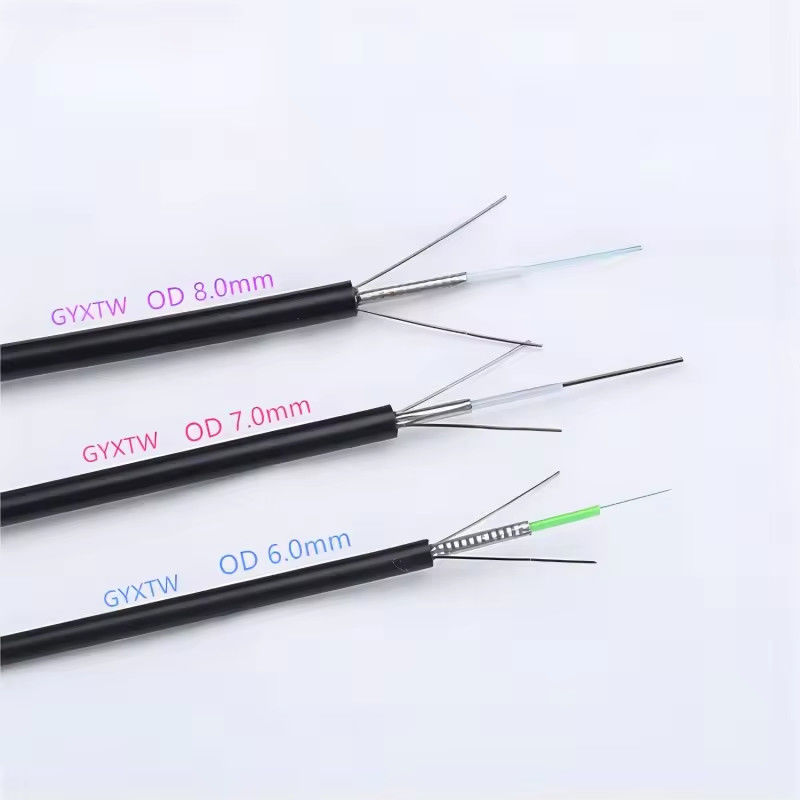

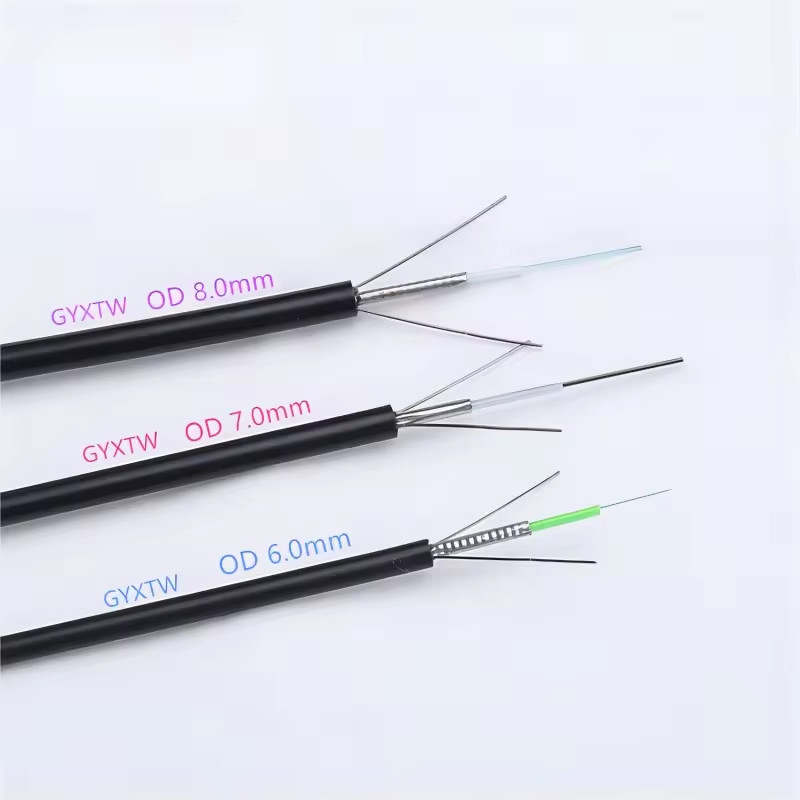

Customized GYXTW Armored  2 4 6 8 12 24 Core  Single Mode Fiber Optic Cable 6mm 7mm 8mm With Messenger
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangdong, China
Out Color: Black
Strength Member: Steel Wire
Armoured: Steel Tape
Jacket: PE/PVC/LSZH
Tube: Central Loose Tube
Operating Temperature: -40°C~+70°C
Certificate: CE/ROHS/ISO9001
Application: Telecom Comunication
Package: 2-4km/roll, Other Length Is Also Available
Highlight:

Customized GYXTW armored fiber optic cable

,

8mm GYXTW armored fiber optic cable

Basic Infomation
Place of Origin: China
Brand Name: Jiqian/OEM
Certification: CE/ISO9001
Model Number: GYXTW
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 2-4days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 80000 kilometers per month
Product Description

Customized GYXTW armored 2 4 6 8 12 24 core single mode fiber optic cable 6mm 7mm with messenger

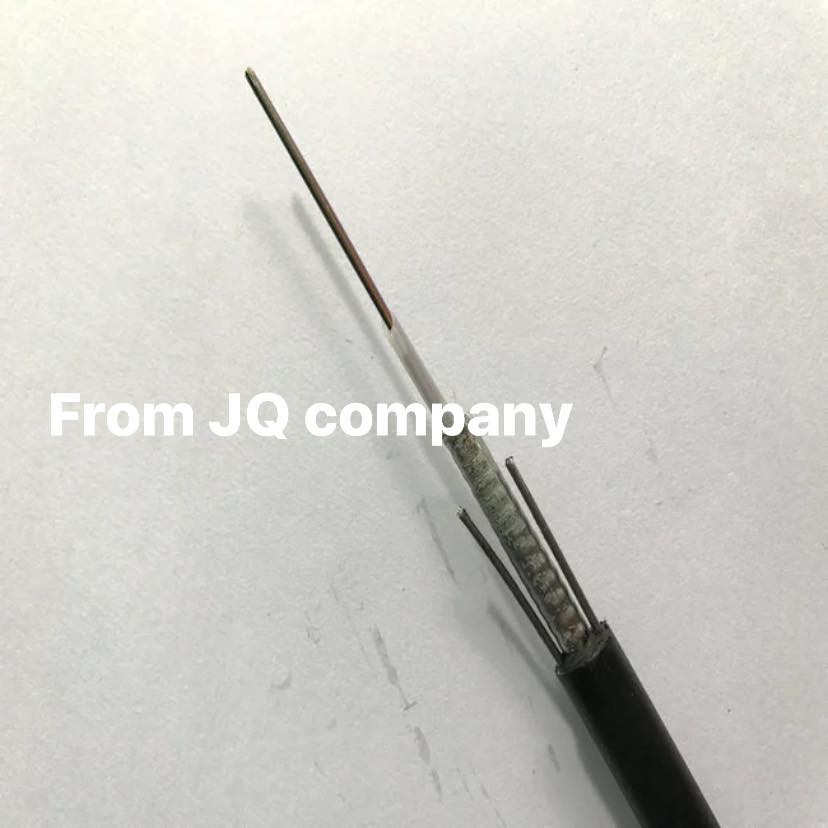

Customized GYXTW Armored  2 4 6 8 12 24 Core  Single Mode Fiber Optic Cable 6mm 7mm 8mm With Messenger 0

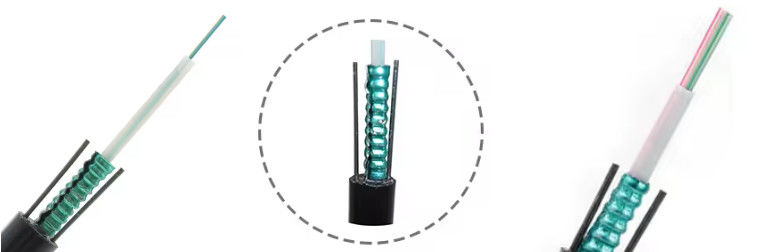

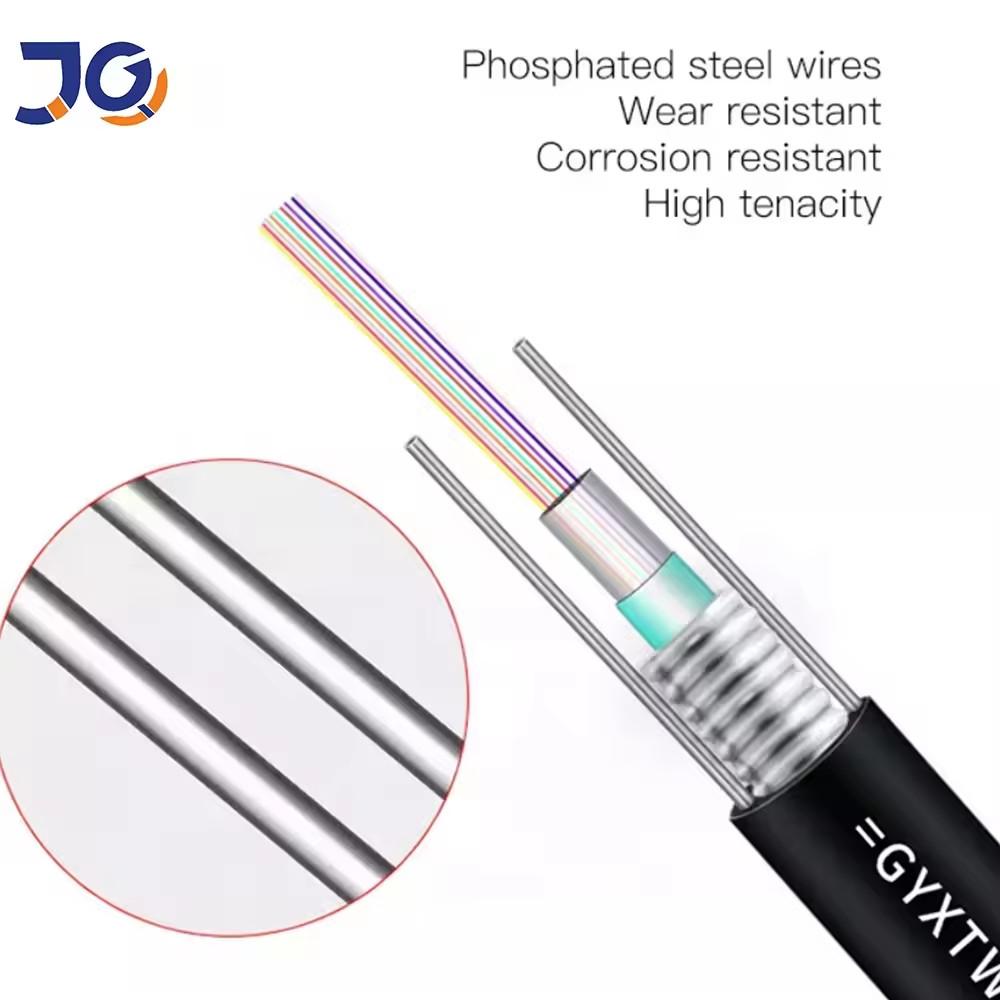

&Single mode Fiber


&Loose Tube Filled with Jelly


&Steel Tape Armor


&Steel Wire Strength Member


&PE Jacket



Cable structure and parameter

Fiber
count
Outer
diameter

Steel wire

diameter

Min.Bending Radius

(Dynamic/Static)

Max.Crush Resistance Weight
(approx.)
mm mm D N/100mm² kg/km
2,4,6,8 8.3 1.0 20/10 3000 66
10,12 9.0 1.0 20/10 3000 82

Fiber parameter



Item Unit Specification
Fiber Type G.652D



Mode field diameter

1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260



Attenuation Coefficient

1310nm dB/km ≤0.36
1550nm dB/km ≤0.22
Proof stress level kpsi ≥100



FAQ:

1. Who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable

4. What services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
