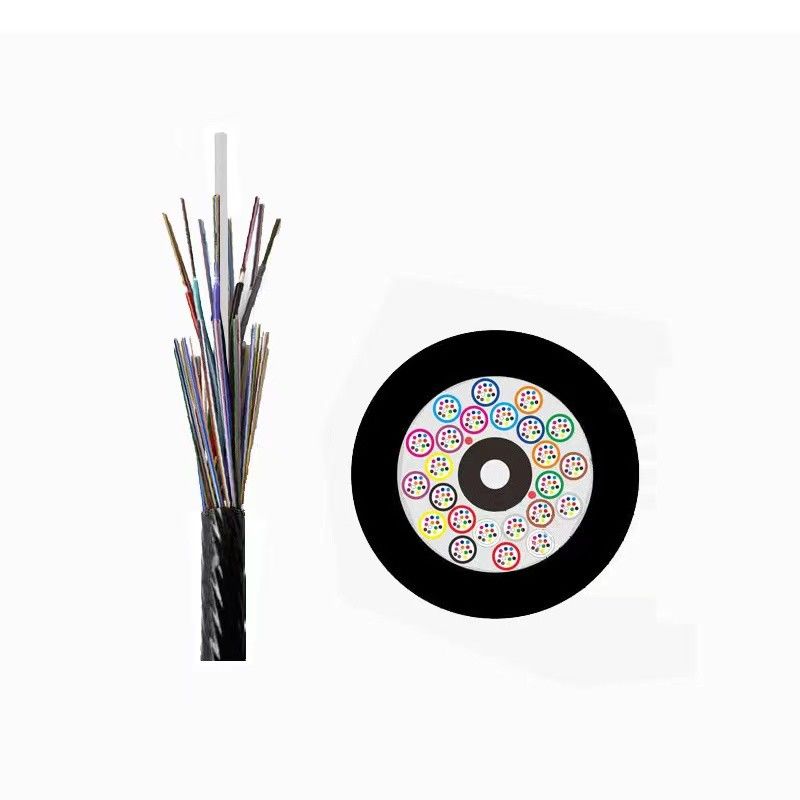

24 48 96 Core Air Blown Fiber Micro Cable Fiber Optical Cable GCYFY

1km
MOQ
24 48 96 Core Air Blown Fiber Micro Cable Fiber Optical Cable GCYFY
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 4-144Cores
Fiber Type: Single Mode/multi Mode
Jacket: PE/PVC/LSZH
Color: Black
Product Name: Air-blown Micro Cable
Model Number: GCYFY
Length: 2km Or Customized Length
Structure: Micro Cable
Installation: Aerial Or Duct
Number Of Conductors: ≥ 10
Highlight:

96 Core Fiber Optical Cable

,

24 Core Fiber Optical Cable

,

GCYFY Fiber Optical Cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GCYFY
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30km per day
Product Description

24 48 96 Core GCYFY Air Blown Fiber Micro Cable





Product Description

1. Model: GCYFY

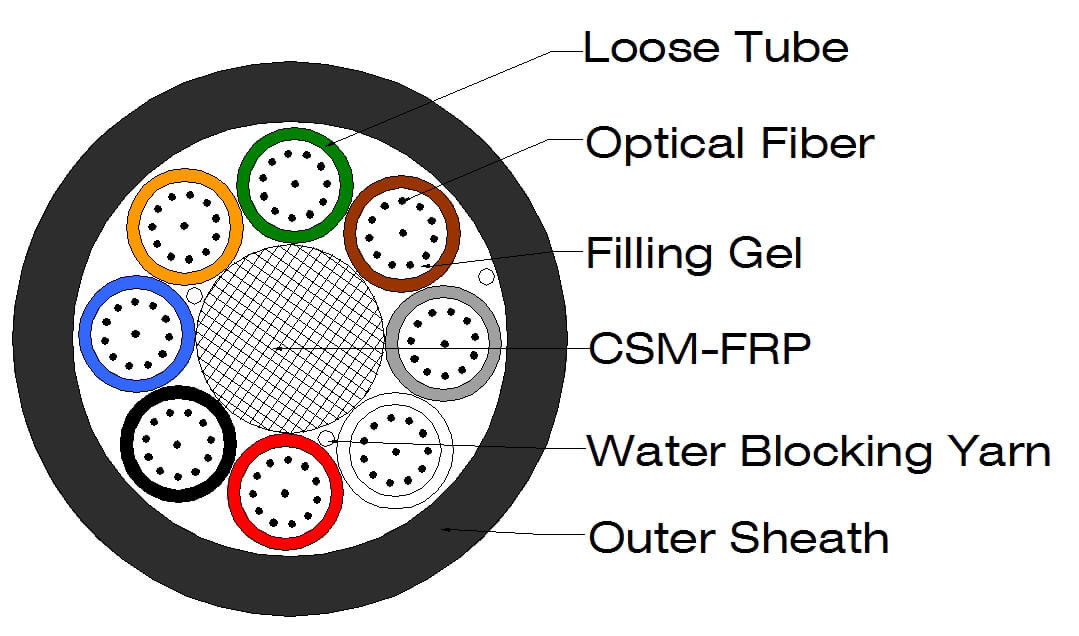

2. Cable Cross-section





24 48 96 Core Air Blown Fiber Micro Cable Fiber Optical Cable GCYFY 0







Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%





Fiber & Tube Color


24 48 96 Core Air Blown Fiber Micro Cable Fiber Optical Cable GCYFY 1

Features
GCYFY loose-shell twisted air-blown micro-cable adopts non-metallic reinforcement and no armor structure, which can be hauled or air-blown micro-pipe in the outer protective tube that has been laid, and then air-blown The laying method breaks through the limitation of the existing pipeline cable laying technology, improves the utilization efficiency of the pipeline, and is easy to expand


24 48 96 Core Air Blown Fiber Micro Cable Fiber Optical Cable GCYFY 2

Environmental Characteristics

• Transport/storage temperature: -40℃ to +70℃



Cable Parameters



Cores



Cores/tube



FRP diameter (mm)



Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)
12 12 1.5 0.5±0.1 5.6 24
24 12 1.5 0.5±0.1 5.6 24
48 12 1.5 0.5±0.1 5.6 24
72 12 1.5 0.5±0.1 5.6 24
96 12 2.5 0.5±0.1 6.6 38







Applications

The cable can be used as the drop cable of feeder segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The cable is also applicable in backbone networks , metropolitan area networks and access networks

24 48 96 Core Air Blown Fiber Micro Cable Fiber Optical Cable GCYFY 3

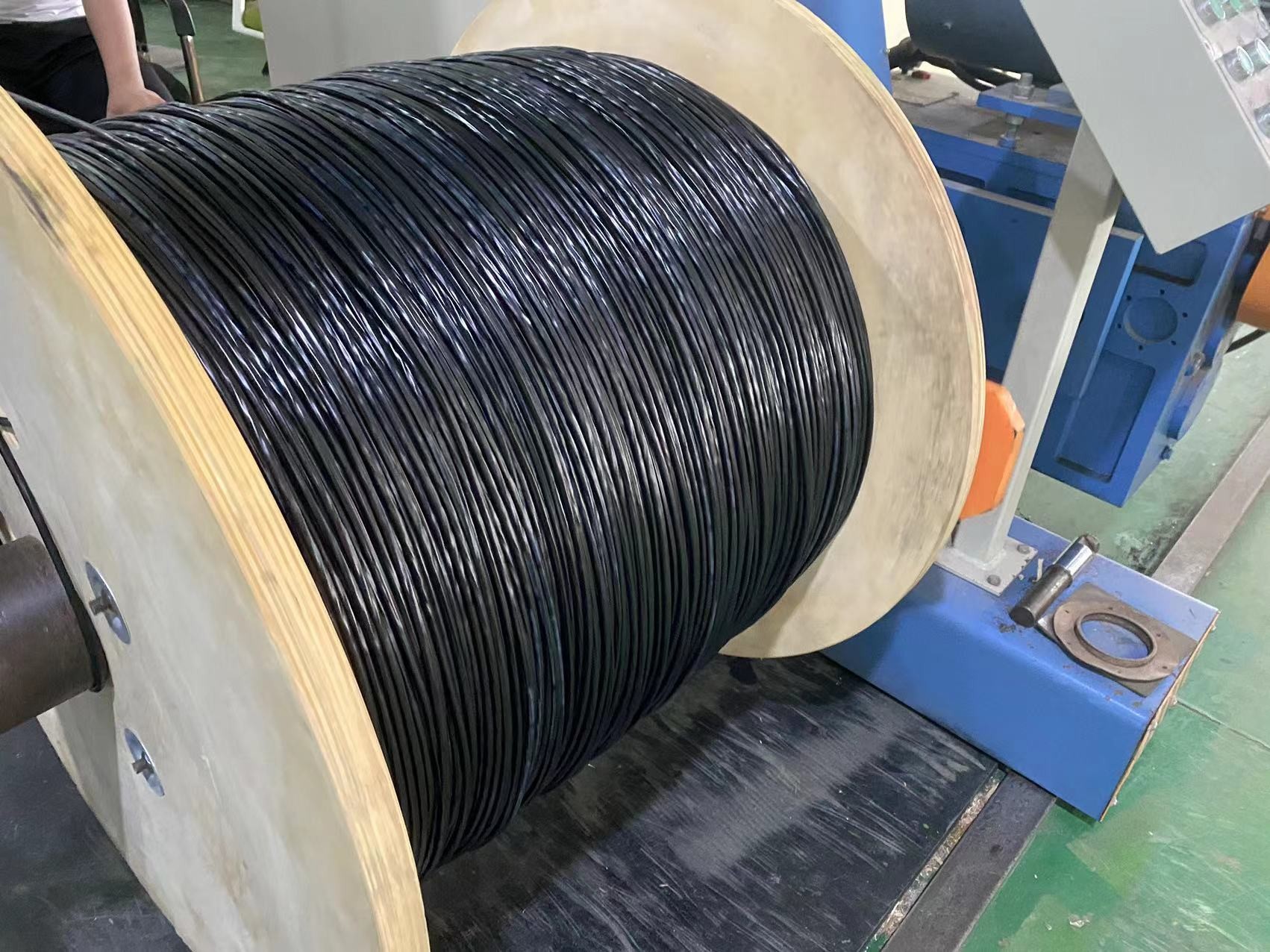

Delivery Length

• Standard length: 4,000m; other lengths are also available.

24 48 96 Core Air Blown Fiber Micro Cable Fiber Optical Cable GCYFY 4

24 48 96 Core Air Blown Fiber Micro Cable Fiber Optical Cable GCYFY 5

24 48 96 Core Air Blown Fiber Micro Cable Fiber Optical Cable GCYFY 6

24 48 96 Core Air Blown Fiber Micro Cable Fiber Optical Cable GCYFY 7
