48 Core Outdoor Single Mode G652D Fibre Cable GYFTY With FRP For Duct And Underground Application 1KM Best Price

1 Kilometer
MOQ
48 Core Outdoor Single Mode G652D Fibre Cable GYFTY With FRP For Duct And Underground Application 1KM Best Price
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: GYFTY
Type: Outdoor Fiber Optic Cable
Place Of Origin: Guangdong, China
Number Of Conductors: ≥ 10
Fiber Type: G652D Single Mode Or As Your Request
Length: As Required
Color: Customized
Cable Structure: Multi-Loose Tube None Armor
Tube: Multi-Loose Tube
Central Strength Member: FRP
Outer Sheath: PE Or As Your Request
Package: Wooden Drum/Customized
Application: Direct Buried/Duct/Aerial
Oem: Available
Highlight:

underground single mode G652D fibre cable

,

duct single mode G652D fibre cable

,

1KM single mode G652D fibre cable
Basic Infomation
Place of Origin: Guangdong，China
Brand Name: JQ
Certification: CE/ISO9001
Model Number: GYFTY
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 2-5days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 8000 kilometers per month
Product Description

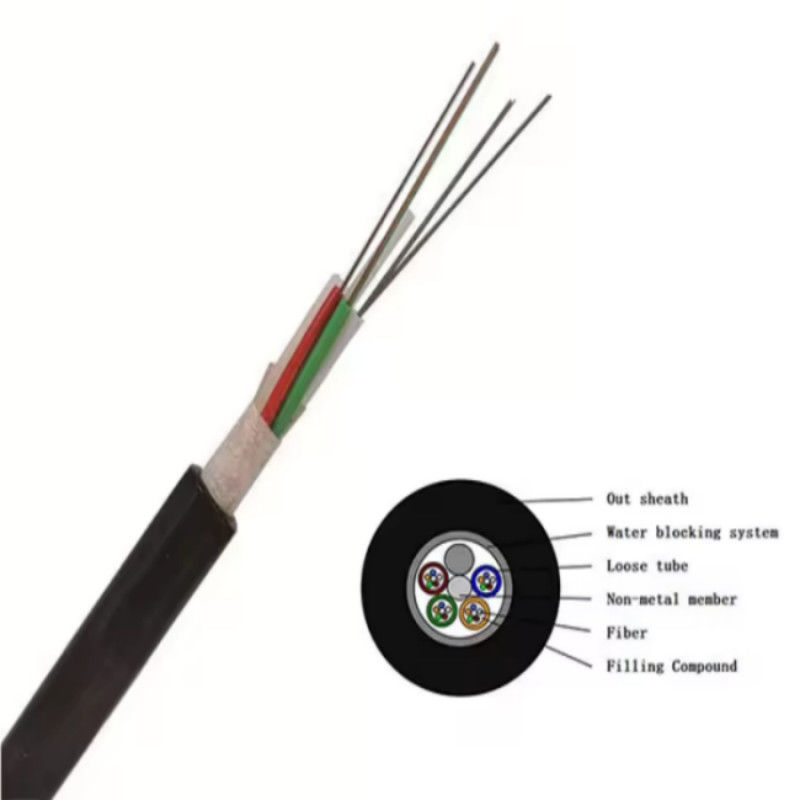

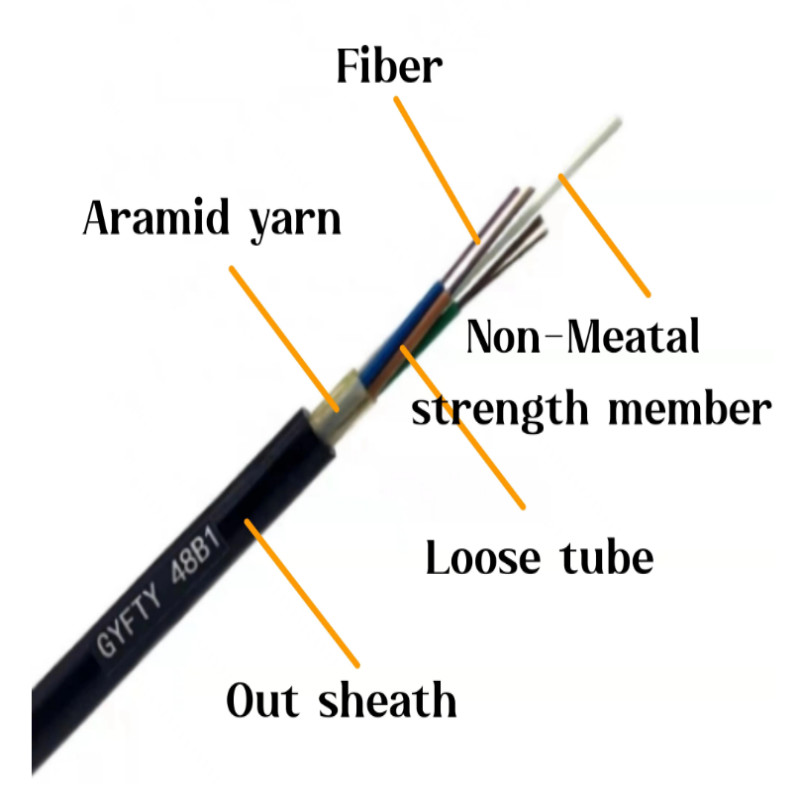

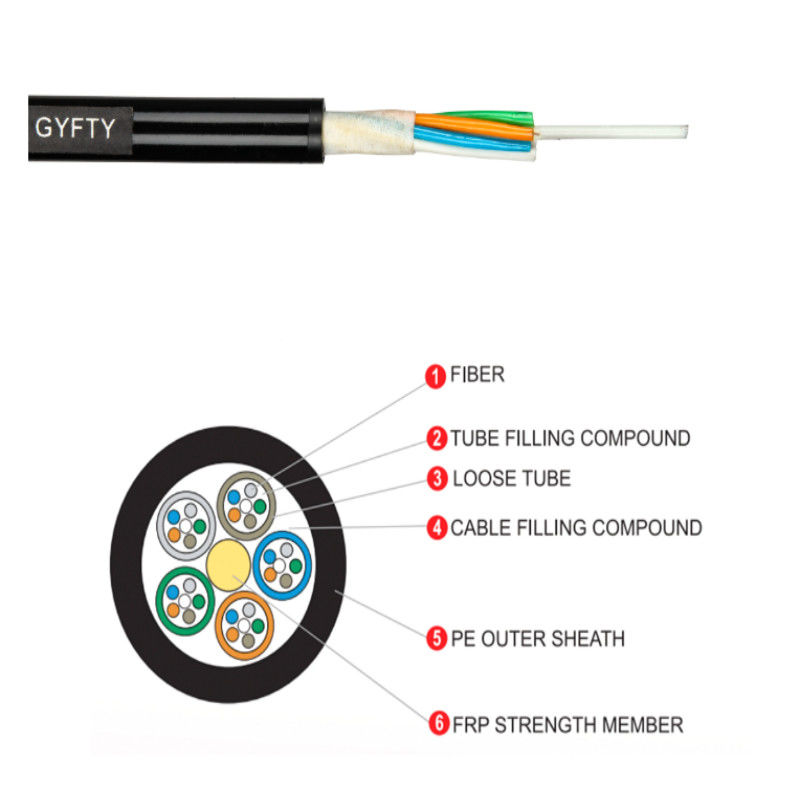

The fiber,250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistance filling compound. A fiber reinforced plastic locates in the center of core as a non-metallic strength member. The tubes are stranded around the strength member into a impact and circular core. After the cable core is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.

Characteristics:
1. Good mechanical and temperature performance.
2. High strength loose tube that is hudrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber.
4. Crush resistance and flexibility.
5. The following measures are taken to ensure the cable watertight.
6. Single fiber reinforced plastic as the central strength member.
7. Loose tube filling compound.
8. 100% cable core filling.

Specification:

48 Core Outdoor Single Mode G652D Fibre Cable GYFTY With FRP For Duct And Underground Application 1KM Best Price 0


Structure and Technical Specifications:

cable countr out sheath diameter Weight Minimum allowable Tensile strength(N) Minimum Min bending radius(MM)
(MM) (KG) allowable Crush load(N/100mm)
    Short term Long term Short term long Term short term long Term
2-36 12.8 170 3000 1000 3000 1000 20D 10D
38-72 14.2 212 3000 1000 3000 1000 20D 10D
74-96 15.7 245 3000 1000 3000 1000 20D 10D
98-120 17.3 289 3000 1000 3000 1000 20D 10D
122-144 18.8 328 3000 1000 3000 1000 20D 10D
