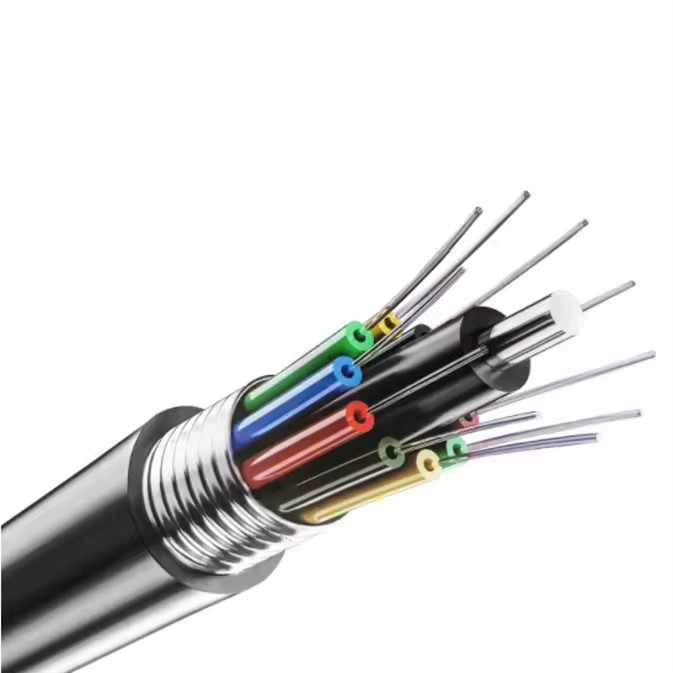

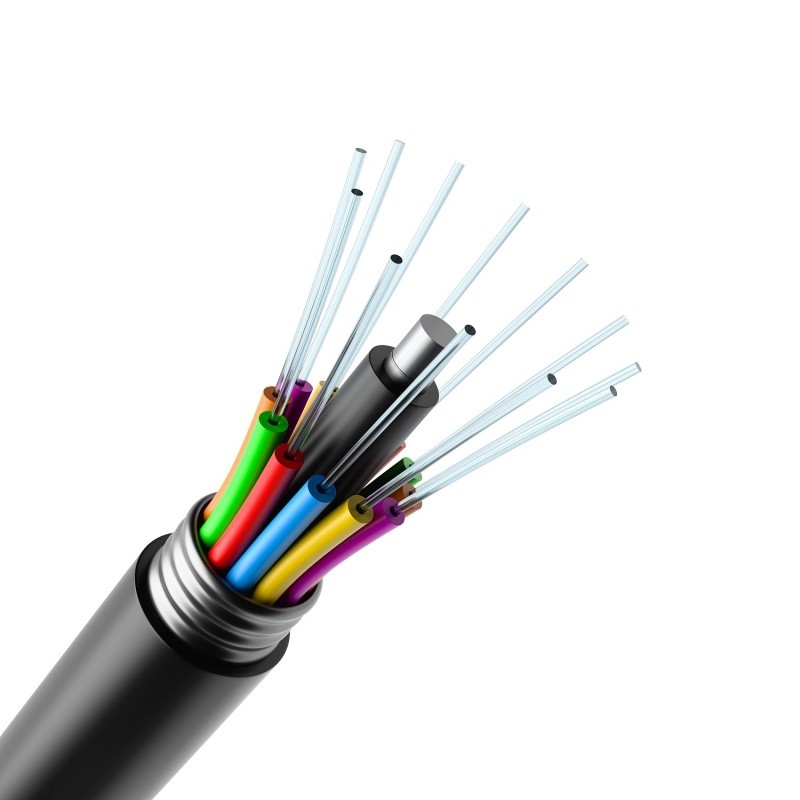

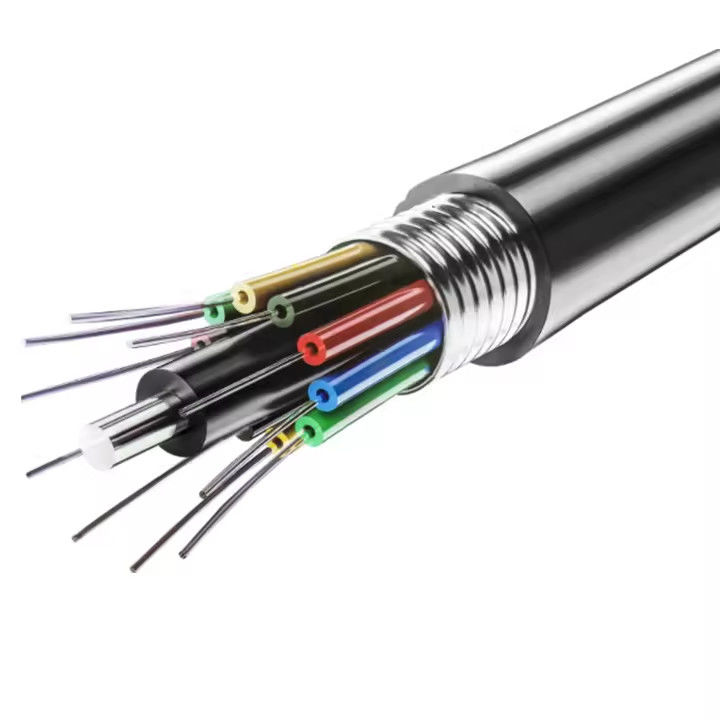

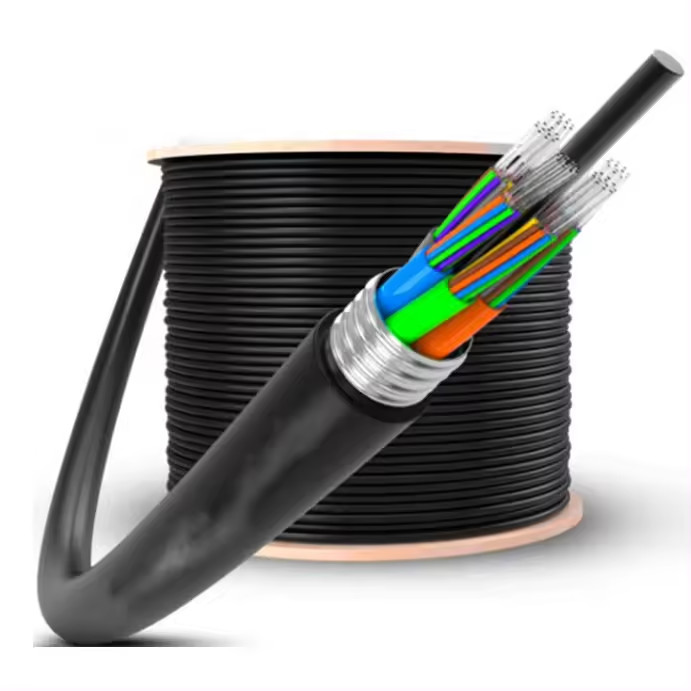

2-144 Core Armoured Optical Fiber Cable GYTA Stranded Loose Tube For Aerial Duct

Contact Now

2-144 Core Armoured Optical Fiber Cable GYTA Stranded Loose Tube For Aerial Duct

Minimum Order Quantity :	1 Kilometer	Packaging Details :	Wooden Drum
Delivery Time :	2-5days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8000 kilometers per month

Place of Origin:	Guangdong，China	Brand Name:	JQ
Certification:	CE/ISO9001	Model Number:	GYTA

Detail Information
Type:	Outdoor Fiber Optic Cable	Place Of Origin:	Guangdong, China
Fiber Type:	G652D Single Mode Or As Your Request	Fiber Count:	2-144 Cores
Length:	Customized	Color:	Customized
Tube:	Multi-Loose Tube	Central Strength Member:	Steel Wire
Armoured:	Al Tape	Outer Sheath:	PE Or As Your Request
Package:	Wooden Drum/Customized	Application:	Aerial,Overhead
Oem:	Available	Operating Temperature:	-40°C~+70°C
Highlight:	GYTA Stranded Loose Tube Cable , Aerial Duct Armoured Optical Fiber Cable

Product Description

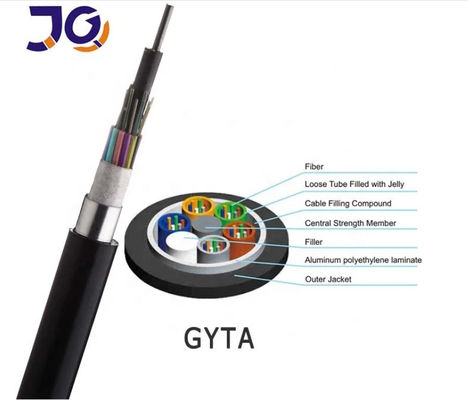

Loose tubes stranded around the central strength member to form the cable core, the cable core longitudinally bound by aluminum polyethylene laminate, further bonded to the PE inner jacket, moisture barrier and then corrugated steel tape laminated with polyethylene on both sides, the PE outer jacket consisted of medium density polyethylene extrude under cecum condition.GYTA can be used in aerial cable and duct cable not in direct-buried cable. The A in GYTA refers to Aluminum strip which has better anti-rust and moisture resistance than steel strip, therefore, GYTA cable has longer service life when used in duct transmission.

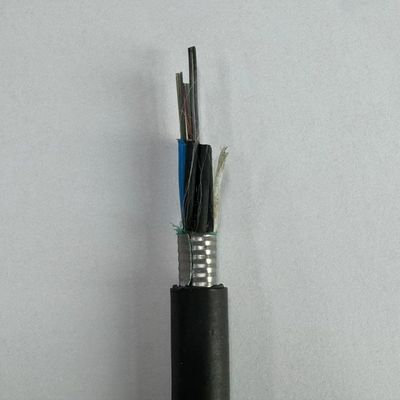

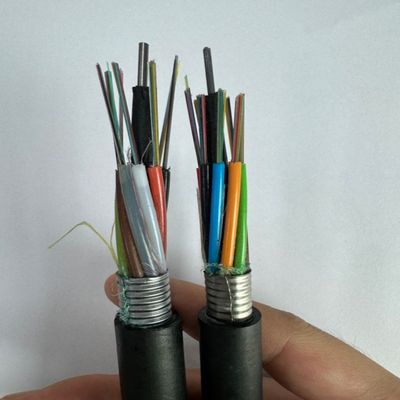

2-144 Core Armoured Optical Fiber Cable GYTA Stranded Loose Tube For Aerial Duct 0

1. High tensile strength, good performance on mechanical stress, crush resistance, temperature and transmission.
2. Phosphatized steel wire as central strength member, PE buffer extruded to outside of steel wire when necessary.
3. The loose thbes, cable core and all interstices filled with moisture-proof gel and compound, prevent water ingress longiyudinally.
4. The aluminum tape laminated on both sides with polyethylene and closely bonded to PE inner sheath possesses the function of radial moisture-proof for the cable.

Specification:

item	value
Model Number	GYTA
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Number of Conductors	≥ 10
Fiber count	2-288 Cores
Fiber Type	G652D Single mode or as your request
Loose tube material	PBT
Central strength member	steel wire
Armoured	Al tape
Outer Sheath	PE
Cable Structure	Multi-Loose Tube Aluminum/Steel Tape armor
Color	Black or as your need
Package	Fumigation free wooden drum
Installation	aerial, in duct
Certification	CE/ROHS/ISO9001 /ANATEL
OEM	Available

Structure and Technical Specifications:

Fiber	Nominal	Nominal	Max Fiber	Max No.	Allowable Tensile		Allowable Crush
Count	Diameter	Weight	Per Tube	of(Tubes+	Load(N)		Resistance(N/100mm)
	(mm)	(kg/km)		fillers)	Short Term	Long Term	Short Term	Long Term
2~36	10.3	109	6	6	1500	600	1000	300
38~72	11.5	145	12	6	1500	600	1000	300
74~96	13.5	175	12	8	1500	600	1000	300
98~120	14.8	209	12	10	1700	600	1000	300
122~144	16.6	249	12	12	2000	600	1000	300
146~216	16.7	254	12	18(2 layers)	2000	600	1000	300
218~288	19	325	12	24(2 layers)	2500	600	1000	300

Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Packaging Details:

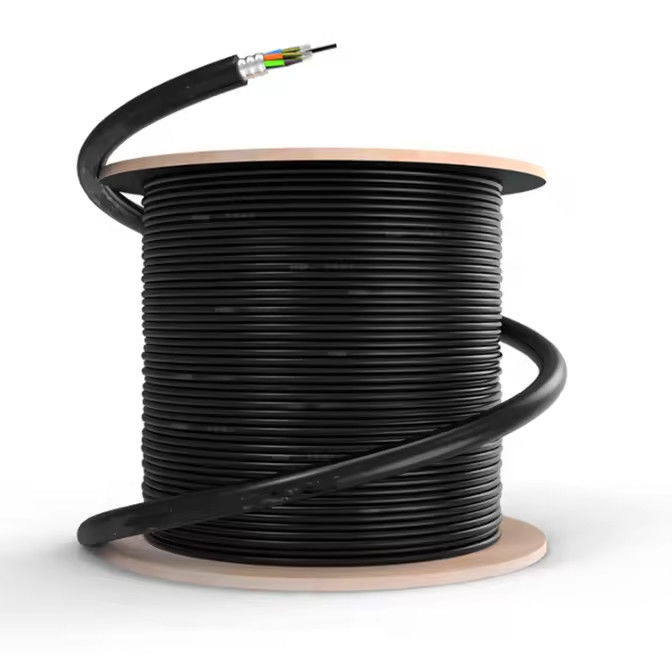

Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.

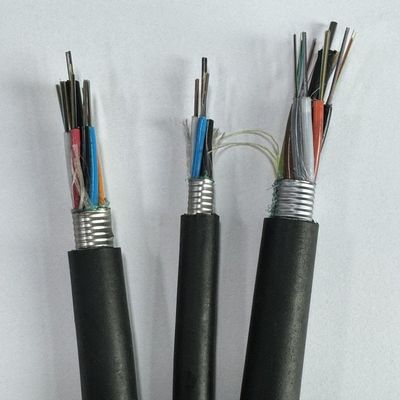

2-144 Core Armoured Optical Fiber Cable GYTA Stranded Loose Tube For Aerial Duct 1

WHY CHOOSE US:

2-144 Core Armoured Optical Fiber Cable GYTA Stranded Loose Tube For Aerial Duct 2

Certification:

2-144 Core Armoured Optical Fiber Cable GYTA Stranded Loose Tube For Aerial Duct 3

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

5.MOQ: what is your minimum quantity?
-MOQ : 1KM
6.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.
7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
8.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
